135D175X9125C2 Vishay

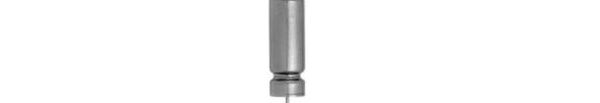

333 3 135D www.vishay.com Vishay Wet Tantalum Capacitors Tantalum-Case With Glass-to-Tantalum Hermetic Seal for -55 C to +200 C Operation FEATURES Axial through-hole terminations: standard tin / lead (SnPb), 100 % tin (RoHS-compliant) Available available Standard and extended ratings Available Model 135D tantalum-case electrolytic capacitors incorporate the advantages of all the varieties of electrolytic capacitors and eliminate most of the disadvantages. These Available units have a 3 V reverse voltage capability at +85 C and a higher ripple current capability than any other electrolytic type with similar combinations of capacitance and case size. LINKS TO ADDITIONAL RESOURCES Designed for the aerospace applications, this capacitor was developed under partial sponsorship of the Marshal l Space Flight Center, National Aeronautics and Spac e 3D Models Administration. The capacitors have a high resistance to damage from shock and vibration. Extended range ratings and high temperature designs are available. Model 135D capacitors are commercial equivalents of PERFORMANCE CHARACTERISTICS Tansitor style AQ, AR, HAQ, HAR, Mallory-NACC Style Operating Temperature: -55 C to +85 C TLT, TXT, THT, THX and Military Style CLR79 and CLR81, (to +200 C with voltage derating) designed to meet the performance requirements of Military Specification MIL-PRF-39006/22/25. Capacitors Capacitance Tolerance: at 120 Hz, +25 C to meet MIL-PRF-39006/22/25 should be ordered by part 20 % standard. 10 %, 5 % available as special. numbers shown in that specification. DC Leakage Current (DCL Max.): at +25 C and above: Material categorization: for definitions of compliance leakage current shall not exceed the values listed in th e please see www.vishay.com/doc 99912 Standard Ratings table. Note * This datasheet provides information about parts that are Life Test: for details follow this link RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details ORDERING INFORMATION 135D 306 X0 006 C 2 E3 MODEL CAPACITANCE CAPACITANCE DC VOLTAGE RATING CASE STYLE NUMBER RoHS- TOLERANCE AT +85 C CODE COMPLIANT This is expressed X0 = 20 % This is expressed in See Standard temperature E3 = 100 % tin in picofarads. The X9 = 10 % volts. To complete the Ratings (max. +125 C) termination first two digits are X5 = 5 % three-digit block, and 0 = no insulating sleeve (RoHS-compliant the significant zeros precede the Case 2 = polyester insulation sleeve design) figures. The third voltage rating. Codes 3 = high temperature Blank = SnPb is the number of table film insulation termination zeros to follow. (standard design) High temperature (max. +200 C) 6 = high temperature film insulation 8 = no insulating sleeve Note Packaging: the use of formed plastic trays for packaging these axial lead components is standard. Tape and reel is not available due to the unit weight Revision: 10-May-2022 Document Number: 40024 1 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 DDD D135D www.vishay.com Vishay DIMENSIONS in inches millimeters Tantalum feed-through Style CLR79 0.078 1.98 max. dia. Term. loc. within Style CLR81 0.250 6.35 0.031 0.79 R Terminal max. + of true position - welded to case D dia. Case 0.094 2.38 Circuit diagram External max. 0.025 0.002 Glass weld 0.64 0.05 E L E Insulating sleeve BARE CASE WITH INSULATING SLEEVE WEIGHT E CASE CODE (oz. / g) (1) LEAD LENGTH D L D (MAX.)L (Max.) 0.188 0.016 0.453 + 0.031 / - 0.016 0.219 0.565 1.500 0.250 0.09 C 4.78 0.41 11.51 + 0.79 / - 0.41 5.56 14.35 38.10 6.35 2.6 0.281 0.016 0.641 + 0.031 / -0.016 0.312 0.785 2.250 0.250 0.22 F 7.14 0.41 16.28 + 0.79 / -0.41 7.92 19.94 57.15 6.35 6.2 0.375 0.016 0.766 + 0.031 / - 0.016 0.406 0.95 2.250 0.250 0.41 T 9.53 0.41 19.46 + 0.79 / - 0.41 10.31 24.13 57.15 6.35 11.6 0.375 0.016 1.062 + 0.031 / - 0.016 0.406 1.31 2.250 0.250 0.62 K 9.53 0.41 26.97 + 0.79 / - 0.41 10.31 33.27 57.15 6.35 17.7 Note (1) Typical length, for reference only STANDARD RATINGS MAX. DCL MAX. CAPACITANCE MAX. MAX. ESR MAX. IMP. CHANGE (%) AT (A) AT RIPPLE CAPACITANCE AT +25 C AT -55 C CASE (1) PART NUMBER 40 kHz (F) CODE 120 Hz 120 Hz +85 C I RMS +25 C -55 C +85 C +125 C () () +125 C (mA) 6 V AT +85 C 4 V AT +125 C 3.6 V AT +200 C DC DC DC 30 C 135D306X0006C2 4.0 100 1.0 2.0 -40 +10.5 +12 820 68 C 135D686X0006C2 3.2 60 1.0 2.0 -40 +14 +16 960 140 F 135D147X0006F2 2.0 40 1.0 3.0 -40 +14 +16 1200 270 F 135D277X0006F2 2.2 25 1.0 6.5 -44 +17.5 +20 1375 330 T 135D337X0006T2 1.4 20 2.0 7.9 -44 +14 +16 1800 560 T 135D567X0006T2 1.3 25 2.0 13.0 -64 +17.5 +20 1900 1200 K 135D128X0006K2 1.0 20 3.0 14.0 -80 +25 +25 2265 8 V AT +85 C 5 V AT +125 C 4.8 V AT +200 C DC DC DC 25 C 135D256X0008C2 4.0 100 1.0 2.0 -40 +10.5 +12 820 56 C 135D566X0008C2 3.3 59 1.0 2.0 -40 +14 +16 900 120 F 135D127X0008F2 2.6 50 1.0 2.0 -44 +17.5 +20 1230 220 F 135D227X0008F2 2.4 30 1.0 7.0 -44 +17.5 +20 1370 290 T 135D297X0008T2 1.8 25 2.0 6.0 -64 +17.5 +20 1770 430 T 135D437X0008T2 1.4 25 2.0 14.0 -64 +17.5 +20 1825 850 K 135D857X0008K2 1.0 22 4.0 16.0 -80 +25 +25 2330 10 V AT +85 C 7 V AT +125 C 6 V AT +200 C DC DC DC 20 C 135D206X0010C2 4.0 120 1.0 2.0 -32 +10.5 +12 820 47 C 135D476X0010C2 3.7 90 1.0 2.0 -36 +14 +16 855 100 F 135D107X0010F2 2.4 60 1.0 4.0 -36 +14 +16 1200 180 F 135D187X0010F2 2.2 40 1.0 7.0 -36 +14 +16 1365 250 T 135D257X0010T2 1.8 30 2.0 10.0 -40 +14 +16 1720 390 T 135D397X0010T2 1.5 25 2.0 16.0 -64 +17.5 +20 1800 750 K 135D757X0010K2 1.0 23 4.0 16.0 -80 +25 +25 2360 Note (1) Part numbers are for units with 20 % capacitance tolerance, standard +125 C maximum temperature, standard polyesterfilm insulation, and tin-lead terminations. For other capacitance tolerances, other maximum temperatures, insulation and termination options, please consult Ordering Information on first page for proper part number. Revision: 10-May-2022 Document Number: 40024 2 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
