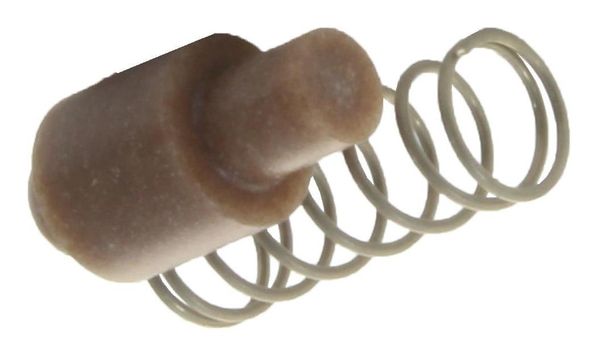

333 3 UIPMA, UIPMC www.vishay.com Vishay MCB Displacement Sensor, Ultraflat Industrial Potentiometer Membrane FEATURES Sealed Infinite resolution High integration capacity Durability Rectilinear: UIPMA type Rotational: UIPMC type Material categorization: for definitions of compliance DESIGN SUPPORT TOOLS AVAILABLE please see www.vishay.com/doc 99912 3D Models QUICK REFERENCE DATA Sensor type LINEAR or ROTATIONAL, conductive plastic Output type Output by connector Market appliance Industrial Dimensions 4 mm (thickness max.) ELECTRICAL SPECIFICATIONS PARAMETER UIPMA UIPMC Total resistance (R ) 4.7 k 10 k n Tolerance on R 30 % n (1) Dissipation 0.1 W/cm of travel 1 W to 70 C (1) Theoretical electrical travel (TET) 20 mm to 250 mm 312 Tolerance on TET 1 mm 3 Useful electrical travel (UET) TET - 2 mm 306 Electrical continuity travel (ECT) TET + 4 mm 325 Linearity 2 % 5 % Temperature coefficient -300 ppm/C 300 ppm/C Collector / track current (I ) 1 mA c Recommended current I 100 A c Recommended load impedance 100 R n Output smoothness < 0.1 % (NFC 93 255) Note (1) See Specific UIPMA Characteristics table MECHANICAL SPECIFICATIONS PARAMETER UIPMA UIPMC Design Flexible insulating films Flexible insulating films Mechanical travel Electrical continuity travel Electrical continuity travel Backlash < 0.1 mm < 0.3 Mounting With double-sided adhesive on flat, clean, and dry support Speed displacement 1.5 m/s Drive Force 0.3 N Torque 1 N cm Protection class (NFC 20 010) IP66 (electrical connection and plug excluded) Maximum alignment fault 1 mm - PERFORMANCE PARAMETER UIPMA UIPMC Life > 3M cycles (depending on chosen wiper) Operating temperature range -10 C to +50 C Storage temperature range -40 C to +50 C Support Flat, clean, and dry Note Nothing stated herein shall be construed as a guarantee of quality or durability Revision: 23-Jul-2019 Document Number: 32537 1 For technical questions, contact: mcbprecisionpot vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 DDD D UIPMA, UIPMC www.vishay.com Vishay MCB SAP PART NUMBERING GUIDELINES - UIPM UIPMA: THEORETICAL ELECTRICAL TRAVEL (mm) MODEL TYPE TYPE VALUE LINEARITY LEADS PACKAGING UIPMC: EXTERNAL DIAMETER (mm) UIPM A = linear 050 I = 472 = 4K7 X = 2 % C = B = bulk 100 (on request) industrial connector 150 200 (on request) 250 UIPM C = 030 I = 103 = 10K U C = B = bulk rotational industrial connector ACCESSORY WIPER Wiper type A ACCSUIPMWIPERKB434 Wiper type B ACCSUFPMWIPERKB422 Wiper type D ACCSUIPMWIPERKB435 CONNECTIONS Connector Berg Duflex 67.013.003, contacts 76.785.301 The connector of UIPMA / UIPMC is intended for use with Berg terminal ref. 76785-YXX and Berg headers ref. 76384-YXX or 76382-YXX DIMENSIONS in millimeters UIPMA TET + 14 1 6.5 1 Bottom Connector Berg Active area with adhesive Duflex 67013-003LF Flat flex cable Contacts 76785-301LF 0.51 0.1 total thickness without protection layer A Stuck on the customer interface TET + flat flex cable + 14 C TET + 11 1.75 0.5 B 8 x R2 1 10 1 Top 7 1 Useful Electrical Travel: Identification area: VI SHAY - part number - date code UET (TET - 2) Part number: UIPMAxxxI472XCB Top Theoretical Electrical Travel Date code: YYYYWW (TET) (YYYY: the year of manufacture with 4 digits, Bottom Electrical Continuity Travel: WW: week number with 2 digits) ECT (TET + 4) (1) Schematic Warning: U (pin 3) supply do not bend the active area Wiper Collector (pin 2) Active area Ground (pin 1) Equipotential voltage areas TET (mm) FLAT FLEX CABLE (mm) 50 100 100 50 150 100 200 100 250 50 Notes Tolerancing according to ISO 8015 General tolerances according to ISO 2768 - mK (1) Ground and U can be swapped to change the slope sign supply Revision: 23-Jul-2019 Document Number: 32537 2 For technical questions, contact: mcbprecisionpot vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 Pin 3 Pin 2 Pin 1 13.5 0.5
