CPF3100K00JKE14 Vishay

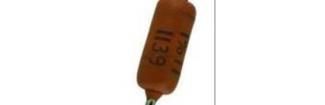

CPF www.vishay.com Vishay Dale Metal Film Resistors, Axial, Industrial Power, Precision, Flameproof FEATURES High power rating, small size Flameproof, high temperature silicone coating Available Special filming and coating processes Excellent high frequency characteristics Available Low noise Low voltage coefficient Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details STANDARD ELECTRICAL SPECIFICATIONS MAXIMUM WORKING POWER RATING RESISTANCE TEMPERATURE GLOBAL HISTORICAL TOLERANCE (1) VOLTAGE P RANGE COEFFICIENT 70 C MODEL MODEL % V W ppm/C 5 to 150K 0.1, 0.25, 0.5, 1 25 5 to 150K 0.1, 0.25, 0.5, 1, 2, 5 50 1 to 150K 0.5, 1, 2, 5 100 CPF1 CPF-1 250 1 0.5 to 150K 1, 2, 5 150 0.5 to 150K 1 200 0.2 to 150K 2, 5 200 0.1 to 150K 2, 5 300 5 to 150K 0.1, 0.25, 0.5, 1 25 5 to 150K 0.1, 0.25, 0.5, 1, 2, 5 50 1 to 150K 0.5, 1, 2, 5 100 CPF2 CPF-2 350 2 0.5 to 150K 1, 2, 5 150 0.5 to 150K 1 200 0.2 to 150K 2, 5 200 0.1 to 150K 2, 5 300 8 to 150K 0.1, 0.25, 0.5, 1 25 8 to 150K 0.1, 0.25, 0.5, 1, 2, 5 50 1 to 150K 0.5, 1, 2, 5 100 CPF3 CPF-3 500 3 1 to 150K 1, 2, 5 150 1 to 150K 1 200 0.2 to 150K 2, 5 200 0.1 to 150K 2, 5 300 Note (1) Continuous working voltage shall be P x R or maximum working voltage, whichever is less Revision: 18-Feb-2020 Document Number: 31021 1 For technical questions, contact: ff2aresistors vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 CPF www.vishay.com Vishay Dale GLOBAL PART NUMBER INFORMATION New Global Part Numbering: CPF1562R00FKR36 (preferred part numbering format) C P F 15 62 R 0 0 F KR 3 6 RESISTANCE TOLERANCE TEMPERATURE GLOBAL MODEL PACKAGING SPECIAL VALUE CODE COEFFICIENT CPF1 R = B = 0.1 % E = 25 ppm E14 = lead (Pb)-free, bulk Blank = standard CPF2 K = k C = 0.25 % H = 50 ppm E36 = lead (Pb)-free, T/R (full) (dash number) CPF3 R10000 = 0.1 D = 0.5 % K = 100 ppm EE6 = lead (Pb)-free, T/R (1000 pcs) (up to 3 digits) 10R000 = 10 F = 1 % L = 150 ppm From 1 to 999 B14 = tin / lead, bulk 150K00 = 150 k G = 2 % N = 200 ppm as applicable R36 = tin / lead, T/R (full) J = 5 % M = 300 ppm RE6 = tin / lead, T/R (1000 pcs) Historical Part Number Example: CPF-15620FT-1 R36 (will continue to be accepted) CPF-1 5620 F T-1 R36 HISTORICAL MODEL RESISTANCE VALUE TOLERANCE CODE TEMP. COEFFICIENT PACKAGING Note For additional information on packaging, refer to the Through-Hole Resistor Packaging document (www.vishay.com/doc 31544) TEMPERATURE COEFFICIENT CODES GLOBAL TC CODE HISTORICAL TC CODE TEMPERATURE COEFFICIENT E T-9 25 ppm/C H T-2 50 ppm/C K T-1 100 ppm/C L T-0 150 ppm/C N T-00 200 ppm/C M M 300 ppm/C TECHNICAL SPECIFICATIONS PARAMETER UNIT CPF1 CPF2 CPF3 Rated Dissipation at 70 C W 1 2 3 (1) Limiting Element Voltage V 250 350 500 Insulation Voltage V 900 900 900 eff Thermal Resistance K/W 85 60 50 10 Insulation Resistance 10 Category Temperature Range C -65 C / +230 C Note (1) Rated voltage P x R DIMENSIONS (1) 1.50 0.125 DIMENSIONS in inches (millimeters) L GLOBAL D (38.10 3.18) MODEL LD L d 1 max. 0.240 0.020 0.090 0.008 0.310 0.025 0.002 CPF1 (6.10 0.51) (2.29 0.20) (7.87) (0.64 0.05) d L 1 max. 0.344 0.031 0.145 0.015 0.425 0.032 0.002 CPF2 (8.74 0.79) (3.68 0.38) (10.80) (0.81 0.05) Note (1) Lead length for product in bulk pack. For product supplied in 0.555 0.041 0.180 0.015 0.650 0.032 0.002 CPF3 tape and reel, the actual lead length would be based on the body (14.10 1.04) (4.57 0.381) (16.51) (0.81 0.05) size, tape spacing and lead trim Revision: 18-Feb-2020 Document Number: 31021 2 For technical questions, contact: ff2aresistors vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
