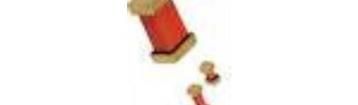

CWR06 www.vishay.com Vishay Sprague Solid Tantalum Surface Mount Capacitors TANTAMOUNT Conformal Coated, Military MIL-PRF-55365/4 Qualified FEATURES Weibull failure rates B, C, D, T Exponential failure rates M, P, R, S Available Tape and reel available per EIA 481 Termination finishes available: gold plate, Available solder plated, solder fused and hot solder dipped PERFORMANCE CHARACTERISTICS Material categorization: for definitions of compliance www.vishay.com/doc 40211 please see www.vishay.com/doc 99912 Operating Temperature: -55 C to +125 C Note (above 85 C, voltage derating is required) * This datasheet provides information about parts that are Capacitance Range: 0.10 F to 100 F RoHS-compliant and / or parts that are non-RoHS-compliant. For Capacitance Tolerance: 5 %, 10 %, 20 % example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details. Voltage Rating: 4 V to 50 V DC DC ORDERING INFORMATION CWR06 D B 155 K B A /TR TYPE VOLTAGE TERMINATION CAPACITANCE CAPACITANCE FAILURE RATE SURGE CURRENT PACKAGING (3) FINISH TOLERANCE %/1000 h (OPTIONAL) C = 4 V This is expressed in A = 10 cycles at +25 C B = gold J = 5 % M = 1.0 Blank = bulk, D = 6 V C = hot solder picofarads. The first K = 10 % P = 0.1 B = 10 cycles at -55 C plastic tray F = 10 V dipped two digits are the M = 20 % R = 0.01 and +85 C /FA = waffle H = 15 V H = solder significant figures. S = 0.001 C = 10 cycles at -55 C pack J = 20 V plated The third is the B = 0.1 and +85 C /PR = K = 25 V K = solder number of zeros to C = 0.01 (before Weibull grading) 100 pcs reel (1) M = 35 V fused follow. D = 0.001 /HR = half reel (2) N = 50 V T = 0.01 /TR = full reel Notes (1) Contact marketing for availability of Weibull D failure rate for 50 V ratings (2) T level requires surge current option C. Capacitors are recommended for space applications. Shipped in tape and reel / or waffle packaging only. (3) Individual reels may include capacitors of two date codes that will be separated by an empty pocket. Reel labels will show both date codes. The date code on the top (DC1) is the inner tape layers or first capacitors reeled. DIMENSIONS in inches millimeters -+ Weld and dimple projection identifies H W anode (+) terminal T 1 - T (max.) 2 P P L CASE CODE L W H P T T (max.) 1 2 0.100 0.015 0.050 0.015 0.050 0.015 0.030 0.005 0.005 0.015 A 2.54 0.38 1.27 0.38 1.27 0.38 0.76 0.13 0.13 0.38 0.150 0.015 0.050 0.015 0.050 0.015 0.030 0.005 0.005 0.015 B 3.81 0.38 1.27 0.38 1.27 0.38 0.76 0.13 0.13 0.38 0.200 0.015 0.050 0.015 0.050 0.015 0.030 0.005 0.005 0.015 C 5.08 0.38 1.27 0.38 1.27 0.38 0.76 0.13 0.13 0.38 0.150 0.015 0.100 0.015 0.050 0.015 0.030 0.005 0.005 0.015 D 3.81 0.38 2.54 0.38 1.27 0.38 0.76 0.13 0.13 0.38 0.200 0.015 0.100 0.015 0.050 0.015 0.030 0.005 0.005 0.015 E 5.08 0.38 2.54 0.38 1.27 0.38 0.76 0.13 0.13 0.38 0.220 0.015 0.135 0.015 0.070 0.015 0.030 0.005 0.005 0.015 F 5.59 0.38 3.43 0.38 1.78 0.38 0.76 0.13 0.13 0.38 0.265 0.015 0.110 0.015 0.110 0.015 0.050 0.005 0.005 0.015 G 6.73 0.38 2.79 0.38 2.79 0.38 1.27 0.13 0.13 0.38 0.285 0.015 0.150 0.015 0.110 0.015 0.050 0.005 0.005 0.015 H 7.24 0.38 3.81 0.38 2.79 0.38 1.27 0.13 0.13 0.38 Note When solder coated terminations are required, add 0.015 0.38 mm to termination dimension tolerances Revision: 18-May-15 Document Number: 40009 1 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 CWR06 www.vishay.com Vishay Sprague RATINGS AND CASE CODES F 4 V 6 V 10 V 15 V 20 V 25 V 35 V 50 V 0.10 A 0.15 A 0.22 AB 0.33 AB 0.47 ABC 0.68 A B B C D 1.0 A B C D E 1.5 A B C D E F 2.2 A B C D E F 3.3 B C D E F G 4.7 B C D E F G H 6.8 C D E F G H 10 D E F G 15 E F G H 22 F G H 33 F G H 47 G H 68 G H 100 H MARKING AND POLARITY Conformal coated capacitors have no marking on capacitor body. Rating and date code information is provided on the reel label. Anode termination Cathode Negative end cap or termination is identified by black epoxy. termination Positive end cap or termination is sealed with pink epoxy, in addition to the weld projection. Black epoxy Pink epoxy STANDARD RATINGS MAX. DCL (A) AT MAX. DF (%) AT MAX. ESR CAPACITANCE CASE AT +25 C PART NUMBER +85 C (F) CODE 100 kHz +25 C +85 C +125 C +25 C -55 C +125 C () 4 V AT +85 C 2.7 V AT +125 C DC DC 2.2 A CWR06C(1)225(2)(3)(4)(5) 1.0 10 12 6 8 8 8.0 4.7 B CWR06C(1)475(2)(3)(4)(5) 1.0 10 12 6 8 8 8.0 6.8 C CWR06C(1)685(2)(3)(4)(5) 1.0 10 12 6 8 8 5.5 10 D CWR06C(1)106(2)(3)(4)(5) 1.0 10 12 8 8 10 4.0 15 E CWR06C(1)156(2)(3)(4)(5) 1.0 10 12 8 10 12 3.5 33 F CWR06C(1)336(2)(3)(4)(5) 2.0 20 24 8 10 12 2.2 68 G CWR06C(1)686(2)(3)(4)(5) 3.0 30 36 10 12 12 1.1 100 H CWR06C(1)107(2)(3)(4)(5) 4.0 40 48 10 12 12 0.9 Notes Part number definitions: (1) Termination finish: B, C, H, K (2) Capacitance tolerance: J, K, M (3) Failure rate: B, C, D, M, P, R, S, T (4) Surge current (optional): A, B, C (5) Packaging: Blank, /FA, /HR, /PR, /TR (1) 5 % tolerance is not available for the 0.33 F/50 V design Revision: 18-May-15 Document Number: 40009 2 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
