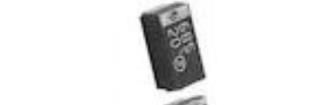

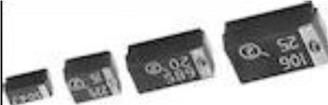

CWR11 www.vishay.com Vishay Sprague Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT Molded Case, Military MIL-PRF-55365/8 Qualified FEATURES Weibull failure rate codes B, C, D, and T Surge current options A, B, and C Termination: H = solder plated, K = solder fused Molded case available in four case codes Compatible with high volume automatic pick and place equipment Moisture sensitivity level 1 APPLICATIONS PERFORMANCE / ELECTRICAL CHARACTERISTICS Military / aerospace www.vishay.com/doc 40211 General purpose Operating Temperature: -55 C to +125 C High reliability (above 85 C, voltage derating is required) Capacitance Range: 0.10 F to 100 F Capacitance Tolerance: 5 %, 10 %, 20 % Voltage Rating: 4 V to 50 V DC DC ORDERING INFORMATION CWR11 D H 155 K B A /HR TYPE VOLTAGE TERMINATION CAPACITANCE CAPACITANCE FAILURE RATE SURGE CURRENT PACKAGING FINISH TOLERANCE %/1000 h (OPTIONAL) OPTION C = 4 V H = solder This is expressed J = 5 % M = 1.0 A = 10 cycles Blank = full reel D = 6 V plated in picofarads. K = 10 % P = 0.1 at +25 C /PR = 100 pcs reel F = 10 V K = solder The first two digits M = 20 % R = 0.01 B = 10 cycles /HR = half reel H = 15 V fused are the significant S = 0.001 at - 55 C / + 85 C /PT = bulk, J = 20 V figures. The third B = 0.1 C = 10 cycles plastic tray K = 25 V is the number of C = 0.01 at - 55 C / + 85 C /FA = waffle pack M = 35 V zeros to follow. D = 0.001 (before Weibull (1) N = 50 V T = 0.01 grading) Note (1) T level requires surge current option C. Capacitors are recommended for space applications. Shipped in tape and reel or waffle packaging only DIMENSIONS in inches millimeters L W T W H Glue Pad T MIN. H Glue Pad P CASE CODE EIA SIZE L W H P T T MIN. W H 0.126 0.008 0.063 0.008 0.063 0.008 0.031 0.012 0.047 0.004 0.028 A 3216-18 3.2 0.20 1.6 0.20 1.6 0.20 0.80 0.30 1.2 0.10 0.70 0.138 0.008 0.110 0.008 0.075 0.008 0.031 0.012 0.087 0.004 0.028 B 3528-21 3.5 0.20 2.8 0.20 1.9 0.20 0.80 0.30 2.2 0.10 0.70 0.236 0.012 0.126 0.012 0.098 0.012 0.051 0.012 0.087 0.004 0.039 C 6032-28 6.0 0.30 3.2 0.30 2.5 0.30 1.3 0.30 2.2 0.10 1.0 0.287 0.012 0.170 0.012 0.110 0.012 0.051 0.012 0.095 0.004 0.039 D 7343-31 7.3 0.30 4.3 0.30 2.8 0.30 1.3 0.30 2.4 0.10 1.0 Note Glue pad (non-conductive, part of molded case) is dedicated for glue attachment (as user option) Revision: 05-Jun-2018 Document Number: 40011 1 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 CWR11 www.vishay.com Vishay Sprague RATINGS AND CASE CODES F 4 V 6 V 10 V 15 V 20 V 25 V 35 V 50 V 0.10 AA 0.15 AB 0.22 AB 0.33 AA B 0.47 AA B C 0.68 A A B B C 1.0 A A A B B C 1.5 A A A B B C D 2.2 AAA B B C C D 3.3 A B B B C C D 4.7 A BBB C C D D 6.8 B B B C D D 10 B B C D 15 B C C D D 22 C D D 33 C D D 47 D D 68 D D 100 D MARKING Capacitance Capacitance code, pF Polarity (+) band 105 J 105J 2 35 JAN brand Polarity (+) Voltage Vishay marking JAN brand band B, C, D Cases A Case STANDARD RATINGS MAX. DC LEAKAGE (A) AT MAX. DF 120 Hz (%) AT MAX. ESR CAPACITANCE CASE PART NUMBER AT +25 C +85 C (F) CODE +25 C +85 C +125 C +25 C -55 C 100 kHz () +125 C 4 V AT +85 C 2.7 V AT +125 C DC DC 2.2 A CWR11C(1)225(2)(3)(4)(5) 0.5 5.0 6.0 6 9 9 8.0 4.7 A CWR11C(1)475(2)(3)(4)(5) 0.5 5.0 6.0 6 9 9 8.0 6.8 B CWR11C(1)685(2)(3)(4)(5) 0.5 5.0 6.0 6 9 9 5.5 10 B CWR11C(1)106(2)(3)(4)(5) 0.5 5.0 6.0 6 9 9 4.0 15 B CWR11C(1)156(2)(3)(4)(5) 0.6 6.0 7.2 6 9 9 3.5 33 C CWR11C(1)336(2)(3)(4)(5) 1.3 13.0 15.6 6 9 9 2.2 68 D CWR11C(1)686(2)(3)(4)(5) 2.7 27.0 32.4 6 9 9 1.1 100 D CWR11C(1)107(2)(3)(4)(5) 4.0 40.0 48.0 8 12 12 0.9 Note Part number definitions: (1) Termination: H, K (2) Capacitance tolerance: J, K, M (3) Failure rate: B, C, D, M, P, R, S, T Exponential failure rate levels M, P, R, and S are inactive for new design per MIL-PRF-55365 Capacitors qualified to Weibull failure rate levels are substitutable for exponential failure rate levels (4) Surge current (optional): A, B, C (5) Packaging: blank, /HR, /PR, /PT, /FA Revision: 05-Jun-2018 Document Number: 40011 2 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
