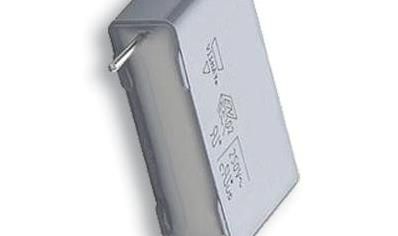

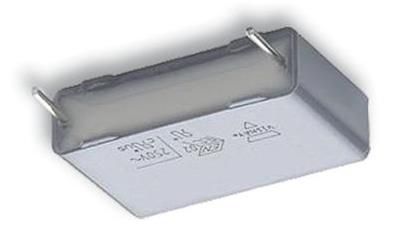

F1778X2 www.vishay.com Vishay Roederstein Interference Suppression Film Capacitor - Class X2 Radial MKP 310 V - Standard Across the Line AC FEATURES 7.5 mm to 27.5 mm lead pitch Self-healing properties For temperature up to 110 C Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 APPLICATIONS For standard across the line X2 applications. See also application note: www.vishay.com/doc 28153 QUICK REFERENCE DATA 0.001 F to 4.7 F Capacitance range (E12 series) (preferred values acc. to E6) Capacitance tolerance 20 % 10 % ( 5 % on request) Rated AC voltage 310 V 50 Hz to 60 Hz AC 800 V at 85 C DC Permissible DC voltage 630 V at 110 C DC 3 55 / 110 / 56 / B for volumes > 1750 mm Climatic testing class according to IEC 60068-1 3 55 / 110 / 56 / C for volumes 1750 mm C 470 nF: 110 C (125 C for less than 1000 h) Maximum application temperature C > 470 nF: 110 C IEC 60384-14 ed-4 (2013) and EN 60384-14 3 IEC 60065, pass. flamm. class B for volumes > 1750 mm Reference standards CSA-E384-14 CQC UL 60384-14 Dielectric Polypropylene film Electrodes Metallized film Mono construction Construction Encapsulation Plastic case, epoxy resin sealed, flame retardant class UL 94 V-0 Leads Tinned wire C-value tolerance rated voltage sub-class manufacturers type Marking code for dielectric material manufacturer location, year and week manufacturers logo or name safety approvals Notes For more detailed data and test requirements, contact rfi vishay.com DIMENSIONS in millimeters w l h l t d t P Revision: 17-Jan-17 Document Number: 27610 1 For technical questions, contact: rfi vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 F1778X2 www.vishay.com Vishay Roederstein COMPOSITION OF CATALOG NUMBER The new RFI Film Capacitor Code is made up 14 digit code (example) CAPACITANCE CAPACITANCE PITCH SERIES TOLERANCE MULTIPLIER AND DESIGN LEAD VOLTAGES CAPACITANCE CONFIGURATION (NUMERICALLY) POSITION 12, 13, 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 F 1778 4 10 M 2 F C B 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 (POS.) F 1 7 7 8 4 1 0 M 2 F C B 0 Rated Capacitance Capacitance Capacitance Voltage or Design (lead configuration) Value Pitch Series Tolerance special Pos. 12/13/14 expressed in pF versions Pos. 1 to 5 Pos. 6/7/8 Pos. 9 Pos. 10 Pos. 11 Pos. 12 Pos. 13 Pos. 14 represent e.g. 0 (zero) = e.g. 0 (zero) = e.g. 0 (zero) = e.g. 0 (zero) = Packaging of specialities Special internal significant spaceholder spaceholder spaceholder spaceholder 0 (zero) = spaceholder code figures C = 7.5 mm S = 3.5 - 0.5 mm B = bulk/loose 0 (zero) = (2) M = 20 % 2 = 310 V D = 10.0 mm P = 3.5 0.3 mm T = tray/pallet spaceholder AC (1) Pos. 6 specifies K = 10 % 3 = 310 V F = 15.0 mm B = 4 - 1 mm U = tape and reel other = special AC multiplier (in 10) J = 5 % I = 22.5 mm M = 5 - 1 mm (H: 16.5 mm, 350 mm) version (1) K = 27.5 mm C = 6 - 1 mm R = tape and reel e.g.: Specials: E = 10 - 1 mm (H: 16.5 mm, 500 mm) (1) 0.01 F = 310 A = + 10 %/- 0 % T = 11 - 1 mm V = tape and reel 0.1 F = 410 B = + 5 %/+ 15 % D = 15 - 1 mm (H: 18.5 mm, 350 mm) (1) 1.0 F = 510 P = + 0 %/- 15 % F = 19 - 1 mm W = tape and reel R = + 10 %/- 5 % H = 20 + 5 mm (H: 18.5 mm, 500 mm) (1) U = + 10 %/+ 20 % L = 30 + 5 mm G = Ammopack K = 40 + 5 mm (H: 18.5 mm) N = 45 - 2 mm Z = leaded wound other = special element version (unencapsulated) other = special version Notes (1) For detailed tape specification refer to packaging information: www.vishay.com/doc 28139 (2) Packaging will be bulk for all capacitors with pitch 15 mm and such with long leads (> 5 mm). Capacitors with short leads up to 5 mm and pitch > 15 mm will be in tray and asking code will be T. Revision: 17-Jan-17 Document Number: 27610 2 For technical questions, contact: rfi vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
