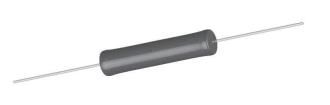

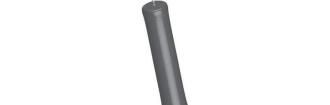

G, GN www.vishay.com Vishay Dale Wirewound Resistors, Miniature, Industrial, Precision Power, Silicone Coated, Axial Lead FEATURES From 1.4 to 4 times higher power ratings than conventional resistors of equivalent size High temperature coating (> 350 C) Available Complete welded construction Meets applicable requirements of MIL-PRF-26 Available in non-inductive styles (type GN) with Ayrton-Perry winding for lowest reactive components Available Excellent stability in operation (typical resistance shift < 0.5 %) MIL-PRF-26 qualified, type RW resistors can Available Note be found at: www.vishay.com/doc 30281 * This datasheet provides information about parts that are Material categorization: RoHS-compliant and / or parts that are non-RoHS-compliant. For Available for definitions of compliance please see example, parts with lead (Pb) terminations are not RoHS-compliant. www.vishay.com/doc 99912 Please see the information / tables in this datasheet for details. STANDARD ELECTRICAL SPECIFICATIONS POWER POWER RESISTANCE RESISTANCE RESISTANCE RESISTANCE (1) (1) RATING RATING RANGE RANGE RANGE RANGE WEIGHT GLOBAL HIST. P W P W (typical) 25 C 25 C 0.05 % 0.1 % 0.25 % 0.5 %, 1 %, MODEL MODEL U 0.05 % V 3 % g 3 %, 5 % to 5 % to 5 % G001...80 G-1-80 1.0 - 1.0 to 1K 0.499 to 1K 0.499 to 3.4K 0.1 to 3.4K 0.20 G001...380 G-1-380 1.0 - - 0.499 to 1K 0.499 to 1K 0.1 to 1K 0.20 G002 G-2 1.5 - 1.0 to 1.3K 0.499 to 1.3K 0.499 to 4.9K 0.1 to 4.9K 0.21 G003...80 G-3-80 2.0 - 1.0 to 2.74K 0.499 to 2.74K 0.499 to 10.4K 0.1 to 10.4K 0.34 G003...380 G-3-380 2.0 - - 0.499 to 2.74K 0.499 to 2.74K 0.1 to 2.74K 0.34 G005 G-5 4.0 5.0 0.499 to 6.5K 0.499 to 6.5K 0.1 to 24.5K 0.1 to 24.5K 0.80 G05C G-5C 5.0 7.0 0.499 to 8.6K 0.499 to 8.6K 0.1 to 32.3K 0.1 to 32.3K 1.20 G010 G-10 7.0 10.0 0.499 to 25.7K 0.499 to 25.7K 0.1 to 95.2K 0.1 to 95.2K 3.60 Notes G002, G005, G05C, and G010: Core consists of beryllium oxide ceramic Models not available as lead (Pb)-free: G001...380 and G003380 Shaded area indicates most popular models (1) Vishay Dale G models have two power ratings depending on operation temperature and stability requirements. Models not available for characteristic V are: G00180, G001380, G002, G00380, and G003380 TECHNICAL SPECIFICATIONS PARAMETER UNIT G RESISTOR CHARACTERISTICS Temperature Coefficient ppm/C 20 for 10 and above 50 for 1 to 9.9 90 for 0.5 to 0.99 1/2 Maximum Working Voltage V (P x R) Insulation Resistance 1000 M minimum dry, 100 M minimum after moisture test Terminal Strength lb 5 minimum for G001...80 thru G003...380, 10 minimum for all others Operating Temperature Range C Characteristic U = -65 to +250, characteristic V = -65 to +350 Characteristic U = +250 C max. hot spot temperature, 0.5 % max. R in 2000 h load life Power Rating - Characteristic V = +350 C max. hot spot temperature, 3.0 % max. R in 2000 h load life GLOBAL PART NUMBER INFORMATION Global Part Numbering example: G00310R00FS7080 G 0 0 310 R 0 0 F S 708 0 GLOBAL MODEL RESISTANCE VALUE TOLERANCE CODE PACKAGING SPECIAL (4 or 5 digits) (5 digits) (1 digit) (3 digits) (up to 3 digits) (See Standard R = Decimal A = 0.05 % E70 = Lead (Pb)-free, tape/reel (smaller than G010) (Dash Number) Electrical K = Thousand B = 0.1 % E73 = Lead (Pb)-free, tape/reel (500 pieces) From 1 to 999 Specifications 15R00 = 15 C = 0.25 % E12 = Lead (Pb)-free, bulk as applicable Global Model 10K00 = 10 k D = 0.5 % S70 = Tin/lead, tape/reel (smaller than G010) column for F = 1.0 % S73 = Tin/lead, tape/reel (500 pieces) options) H = 3.0 % B12 = Tin/lead, bulk J = 5.0 % K = 10.0 % Historical Part Numbering example: G-3-80 10 1 % S70 G-3-80 10 1 % S70 HISTORICAL MODEL RESISTANCE VALUE TOLERANCE CODE PACKAGING Revision: 05-Mar-15 Document Number: 30205 1 For technical questions, contact: ww2aresistors vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 G, GN www.vishay.com Vishay Dale DIMENSIONS in inches millimeters L 1.50 (1) 38.10 min. D L 1 C DIMENSIONS in inches millimeters GLOBAL MODEL (2) LL CD 1 max. G001...80 0.250 0.031 0.281 0.085 0.020 0.020 0.002 G001...380 6.35 0.787 7.14 2.16 0.508 0.508 0.051 0.312 0.016 0.328 0.078 + 0.016 - 0.031 0.020 0.002 G002 7.92 0.406 8.33 1.98 + 0.406 - 0.787 0.508 0.051 G003...80 0.406 0.031 0.437 0.094 0.031 0.020 0.002 G003...380 10.31 0.787 11.10 2.39 0.787 0.508 0.051 0.562 0.062 0.622 0.188 0.032 0.032 0.002 G005 14.27 1.57 15.80 4.78 0.813 0.813 0.051 0.500 0.062 0.593 0.218 0.032 0.040 0.002 G05C 12.70 1.57 15.06 5.54 0.813 1.02 0.051 0.875 0.062 1.0 0.312 0.032 0.040 0.002 G010 22.23 1.57 25.4 7.92 0.813 1.02 0.051 Notes (1) On some standard reel pack methods, the leads may be trimmed to a shorter length than shown (2) L dimension is clean lead to clean lead 1 max. MATERIAL SPECIFICATIONS DERATING 120 Element: Copper-nickel alloy or nickel-chrome alloy, depending on resistance value 100 Core: Ceramic, beryllium oxide or alumina, depending on resistor model 80 Coating: Special high temperature silicone Standard Terminals: 100 % Sn, or 60/40 Sn/Pb coated Copperweld 60 CHAR. V End Caps: Stainless steel (3) Part Marking: DALE, model, wattage , value, tolerance, 40 date code Note 20 (3) CHAR. U Wattage marked on part will be U characteristic 0 GN NON-INDUCTIVE - 65 - 50 0 50 150 250 350 25 AMBIENT TEMPERATURE IN C Models of equivalent physical and electrical specifications are available with non-inductive (Ayrton-Perry) winding. TERMINATION They are identified by inserting the letter N after G in the model number (GN005, for example). Two conditions apply: When G resistors will be operated at full rated power, resistance welding or high temperature solder are the 1. For GN models, divide maximum resistance values by two recommended termination methods. Termination should be 2. Body O.D. on GN05C may exceed that of the G05C by made within 1/2 from end of resistor body. 0.010 PERFORMANCE TEST LIMITS TEST CONDITIONS OF TEST CHARACTERISTIC U CHARACTERISTIC V Thermal Shock Rated power applied until thermally stable, then a min. of 15 min at -55 C (0.2 % + 0.05 ) R (2.0 % + 0.05 ) R Short Time Overload 5x power (G001...80 thru G05C), 10 x power (G010) for 5 s (0.2 % + 0.05 ) R (2.0 % + 0.05 ) R Dielectric Withstanding 500 V minimum for G001...80 thru G003...380, RMS (0.1 % + 0.05 ) R (0.1 % + 0.05 ) R Voltage 1000 V minimum for all others, duration of 1 min RMS Low Temperature Storage -65 C for 24 h (0.2 % + 0.05 ) R (2.0 % + 0.05 ) R High Temperature Exposure 250 h at +250 C (characteristic U) (0.5 % + 0.05 ) R (2.0 % + 0.05 ) R Moisture Resistance MIL-STD-202 Method 106, 7b not applicable (0.2 % + 0.05 ) R (2.0 % + 0.05 ) R Shock, Specified Pulse MIL-STD-202 Method 213, 100 g s for 6 ms, 10 shocks (0.1 % + 0.05 ) R (0.2 % + 0.05 ) R Vibration, High Frequency Frequency varied 10 Hz to 2000 Hz, 20 g peak, 2 directions 6 h each (0.1 % + 0.05 ) R (0.2 % + 0.05 ) R Load Life 2000 h at rated power, +25 C, 1.5 h ON, 0.5 h OFF (0.5 % + 0.05 ) R (3.0 % + 0.05 ) R Pull test -5 s to 10 s, 5 lb (G001...80 thru G05C), 10 lb for all others Terminal Strength (0.1 % + 0.05 ) R (1.0 % + 0.05 ) R torsion test - 3 alternating directions, 360 each Revision: 05-Mar-15 Document Number: 30205 2 For technical questions, contact: ww2aresistors vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 R A T E D P O W E R I N %
