X-On Electronics has gained recognition as a prominent supplier of HVR2500005604JA100 Metal Film Resistors - Through Hole across the USA, India, Europe, Australia, and various other global locations. HVR2500005604JA100 Metal Film Resistors - Through Hole are a product manufactured by Vishay. We provide cost-effective solutions for Metal Film Resistors - Through Hole, ensuring timely deliveries around the world.

HVR2500005604JA100 Vishay

HVR2500005604JA100 electronic component of Vishay

HVR2500005604JA100 Metal Film Resistors - Through Hole

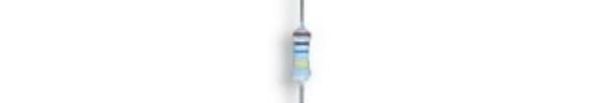

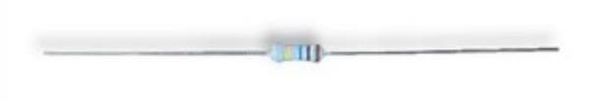

Images are for reference only
See Product Specifications

Part No.	HVR2500005604JA100
Manufacturer:	Vishay
Category:	Metal Film Resistors - Through Hole
Description:	RESISTOR, 5M6 High frequency ceramic capacitor designed for general purpose use.
Datasheet:	HVR2500005604JA100 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 0.1816 ea
Line Total: USD 0.18

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

HVR2500005604JA100 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Fri. 07 Mar to Thu. 13 Mar MOQ : 1 Multiples : 1	1 : USD 0.1816 50 : USD 0.1199 100 : USD 0.0999 250 : USD 0.0916 500 : USD 0.0841 1000 : USD 0.0766

Specifications

Manufacturer Vishay Vishay
Product Category Metal Film Resistors - Through Hole Metal Film Resistors - Through Hole
Resistance 5.6 MOhms 5.6 MOhms
Power Rating 250 mW 250 mW
Tolerance 5 % 5 %
Temperature Coefficient ± 250 PPM/C ± 250 PPM/C
Voltage Rating 1.6 kV 1.6 kV
Operating Temperature Range - 55 C To + 155 C - 55 C To + 155 C
Brand Vishay Vishay
Product Range HVR25 Series HVR25 Series
Resistance Tolerance ± 5 % ± 5 %
Resistor Case Style Axial Leaded Axial Leaded
Resistor Element Material Metal Film Metal Film
Svhc No SVHC (15 - Jan - 2019) No SVHC (15 - Jan - 2019)
Body Diameter 2.5 mm 2.5 mm
External Length / Height 6.5 mm 6.5 mm
Full Power Rating Temperature 70C 70C
Lead Diameter 0.6 mm 0.6 mm
Lead Length 26 mm 26 mm
No. Of Pins 2Pins 2Pins
Operating Temperature Max 155 C 155 C
Operating Temperature Min - 55 C - 55 C
Resistor Mounting Through Hole Through Hole
Standard IEC65 IEC65
Temperature Coeff. 250 PPM/C 250 PPM/C
Temperature Coeff. - 250 PPM/C 250 PPM/C
Tolerance - 5 % 5 %
Voltage Rating V Dc 1600 V 1600 V
Voltage Rating Vac 1150 V 1150 V

We are delighted to provide the HVR2500005604JA100 from our Metal Film Resistors - Through Hole category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the HVR2500005604JA100 and other electronic components in the Metal Film Resistors - Through Hole category and beyond.
