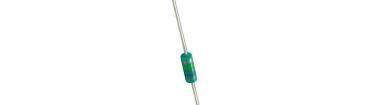

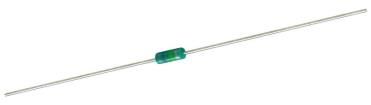

IM www.vishay.com Vishay Dale Inductors, Commercial, Molded, Axial Leaded FEATURES Wide inductance range in small package Flame retardant coating ELECTRICAL SPECIFICATIONS Precision performance, excellent reliability, Inductance Tolerance: 1 %, 3 %, 5 %, 10 %, sturdy construction 20 %, other tolerances available on request Epoxy molded construction provides superior Insulation Resistance: 1000 M minimum per moisture protection MIL-STD-202, method 302, test condition B Compliant to RoHS Directive 2011/65/EU Dielectric Strength: Per MIL-STD-202, method 301: 1000 V for IM-2, IM-4, IM-6, IM-8, IM-9 and IM-10 AC MECHANICAL SPECIFICATIONS 200 V for IM-1 AC Terminal Strength: Per MIL-STD-202, method 211, test condition A: For IM-1, 3 lb pull for IM-2, IM-4, IM-6, IM-8, (1) TEST EQUIPMENT IM-9 and IM-10, 5 lb pull and twist H/P 4342A Q-meter Weight: IM-1 = 0.25 g maximum, IM-2 = 0.30 g maximum, IM-4 = 0.65 g maximum, IM-6 = 0.95 g maximum, Measurements corporation megacycle meter, model 59 IM-8 = 1.5 g maximum, IM-9 = 2.0 g maximum, Wheatstone bridge IM-10 = 2.5 g maximum Note (1) Test procedure per MIL-PRF-15305 INDUCTANCE RANGE AND MILITARY STANDARD MATERIAL SPECIFICATIONS INDUCTANCE RANGE (H) Encapsulant: Epoxy MODEL MIN. MAX. Standard Terminals: IM-1 and IM-2: 24 AWG IM-4, IM-6 IM-1 0.10 100 and IM-9: 22 AWG IM-8: 21 AWG IM-10: 20 AWG, tinned 0.022 0.082 copper 0.10 1 IM-2 1.2 27 ENVIRONMENTAL PERFORMANCE 33 1000 TEST CONDITIONS SPECIFICATIONS 0.15 4.7 Barometric C MIL-STD-202, method 105 5.6 33 Pressure IM-4 36 240 Thermal Shock A-1 MIL-STD-202, method 107 270 1800 Flammability - MIL-STD-202, method 111 0.10 2.7 Overload - MIL-PRF-15305 3.3 27 IM-6 Low Temperature 33 220 - MIL-PRF-15305 Storage 270 1000 Resistance to A MIL-STD-202, method 210 IM-8 1100 3600 Soldering Heat IM-9 68 150 Resistance to - MIL-STD-202, method 215 IM-10 3900 10 000 Solvents DIMENSIONS in inches millimeters C B Typ. D Dia. A Dia. MODEL A (DIA.) B C (TYP.) D (DIA.) Max. 0.086 2.18 0.210 5.33 1.62 41.15 0.0215 0.546 IM-1 Min. 0.070 1.78 0.190 4.83 1.38 35.05 0.0185 0.470 Max. 0.105 2.67 0.260 6.60 1.63 41.40 0.0215 0.546 IM-2 Min. 0.085 2.16 0.240 6.10 1.25 31.75 0.0185 0.470 Max. 0.165 4.19 0.385 9.78 1.63 41.40 0.027 0.686 IM-4 Min. 0.145 3.68 0.365 9.27 1.25 31.75 0.023 0.584 Max. 0.200 5.08 0.450 11.43 1.63 41.40 0.027 0.686 IM-6 Min. 0.180 4.57 0.430 10.92 1.25 31.75 0.023 0.584 Max. 0.225 5.72 0.570 14.48 1.63 41.40 0.030 0.762 IM-8 Min. 0.205 5.21 0.550 13.97 1.25 31.75 0.026 0.660 Max. 0.260 6.60 0.570 14.48 1.63 41.40 0.027 0.686 IM-9 Min. 0.240 6.10 0.550 13.97 1.25 31.75 0.023 0.584 Max. 0.250 6.35 0.750 19.05 1.63 41.40 0.034 0.864 IM-10 Min. 0.230 5.84 0.730 18.54 1.25 31.75 0.030 0.762 Revision: 28-Aug-13 Document Number: 34030 1 For technical questions, contact: magnetics vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 IM www.vishay.com Vishay Dale STANDARD ELECTRICAL SPECIFICATIONS IND. TOL. Q TEST FREQUENCY Q SRF MIN. DCR MAX. RATED DC CURRENT (1) (2) MODEL (H) (%) MIN. (MHz) (MHz) ( ) (mA) IM-1 0.10 10 35 25.0 680.0 0.13 895 IM-1 0.12 10 35 25.0 650.0 0.15 835 IM-1 0.15 10 35 25.0 560.0 0.18 760 IM-1 0.18 10 35 25.0 540.0 0.21 705 IM-1 0.22 10 30 25.0 500.0 0.25 645 IM-1 0.27 10 30 25.0 440.0 0.38 525 IM-1 0.33 10 25 25.0 410.0 0.49 460 IM-1 0.39 10 25 25.0 380.0 0.59 420 IM-1 0.47 10 25 25.0 340.0 0.62 410 IM-1 0.56 10 40 25.0 250.0 0.18 510 IM-1 0.68 10 40 25.0 215.0 0.20 485 IM-1 0.82 10 40 25.0 200.0 0.22 465 IM-1 1.0 10 40 25.0 190.0 0.25 435 IM-1 1.2 10 35 7.9 170.0 0.28 410 IM-1 1.5 10 40 7.9 150.0 0.49 310 IM-1 1.8 10 40 7.9 135.0 0.56 290 IM-1 2.2 10 45 7.9 130.0 0.72 257 IM-1 2.7 10 45 7.9 110.0 0.85 236 IM-1 3.3 10 45 7.9 100.0 1.2 198 IM-1 3.9 10 50 7.9 95.0 1.5 178 IM-1 4.7 10 55 7.9 88.0 2.1 150 IM-1 5.6 10 55 7.9 78.0 2.8 130 IM-1 6.8 10 55 7.9 69.0 3.2 122 IM-1 8.2 10 45 7.9 52.0 4.4 104 IM-1 10.0 10 45 7.9 47.0 5.2 95 IM-1 12.0 10 40 2.5 31.0 3.0 126 IM-1 15.0 10 40 2.5 26.0 3.4 118 IM-1 18.0 10 40 2.5 23.0 3.8 112 IM-1 22.0 10 45 2.5 20.0 4.3 105 IM-1 27.0 10 45 2.5 17.0 4.7 100 IM-1 33.0 10 45 2.5 15.0 5.2 95 IM-1 39.0 10 45 2.5 13.5 6.8 83.5 IM-1 47.0 10 45 2.5 12.5 8.2 76 IM-1 56.0 10 45 2.5 11.5 10.0 69 IM-1 68.0 10 45 2.5 10.5 11.5 64 IM-1 82.0 10 45 2.5 10.0 16.0 54.5 IM-1 100.0 10 45 2.5 9.5 17.5 52 IM-2 0.022 10 50 50.0 900.0 0.025 2400 IM-2 0.027 20 40 25.0 875.0 0.03 2200 IM-2 0.033 10 40 25.0 850.0 0.035 2000 IM-2 0.039 10 40 25.0 825.0 0.04 1900 IM-2 0.047 10 40 25.0 800.0 0.045 1800 IM-2 0.056 10 40 25.0 775.0 0.05 1700 IM-2 0.068 10 40 25.0 750.0 0.06 1500 IM-2 0.082 10 40 25.0 725.0 0.07 1400 IM-2 0.10 10 40 25.0 680.0 0.08 1350 IM-2 0.12 10 40 25.0 640.0 0.09 1270 IM-2 0.15 10 38 25.0 600.0 0.10 1200 IM-2 0.18 10 35 25.0 550.0 0.12 1105 IM-2 0.22 10 33 25.0 510.0 0.14 1025 IM-2 0.27 10 33 25.0 430.0 0.16 960 IM-2 0.33 10 30 25.0 410.0 0.22 815 IM-2 0.39 10 30 25.0 365.0 0.30 700 IM-2 0.47 10 30 25.0 330.0 0.35 650 IM-2 0.56 10 30 25.0 300.0 0.50 545 IM-2 0.68 10 28 25.0 275.0 0.60 495 IM-2 0.82 10 28 25.0 250.0 0.85 415 IM-2 1.0 10 25 25.0 230.0 1.0 385 Notes (1) Measured with full length lead (2) Rated DC current based on maximum temperature rise as shown in table Revision: 28-Aug-13 Document Number: 34030 2 For technical questions, contact: magnetics vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 PHENOLIC CORE IRON CORE PHENOLIC CORE
