Not for New Designs
IM
www.vishay.com
Vishay Dale

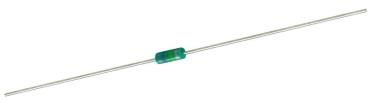

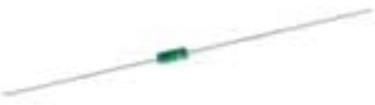

Inductors, Commercial, Molded, Axial Leaded
FEATURES
Wide inductance range in small package
Flame retardant coating
ELECTRICAL SPECIFICATIONS Precision performance, excellent reliability,
sturdy construction
Inductance Tolerance: 1 %, 3 %, 5 %, 10 %,
20 %, other tolerances available on request Epoxy molded construction provides superior
moisture protection
Insulation Resistance: 1000 M minimum per
Material categorization: for definitions of compliance
MIL-STD-202, method 302, test condition B
please see www.vishay.com/doc?99912
Dielectric Strength: Per MIL-STD-202, method 301:
1000 V for IM-2, IM-4, IM-6, IM-8, IM-9 and IM-10
AC
MECHANICAL SPECIFICATIONS
200 V for IM-1
AC
Terminal Strength: Per MIL-STD-202, method 211, test
(1)
condition A: For IM-1, 3 lb pull; for IM-2, IM-4, IM-6, IM-8,
TEST EQUIPMENT
IM-9 and IM-10, 5 lb pull and twist
H/P 4342A Q-meter
Weight: IM-1 = 0.25 g maximum, IM-2 = 0.30 g maximum,
Measurements corporation megacycle meter, model 59
IM-4 = 0.65 g maximum, IM-6 = 0.95 g maximum,
Wheatstone bridge
IM-8 = 1.5 g maximum, IM-9 = 2.0 g maximum,
IM-10 = 2.5 g maximum
Note
(1)
Test procedure per MIL-PRF-15305
INDUCTANCE RANGE AND MILITARY STANDARD
MATERIAL SPECIFICATIONS
INDUCTANCE RANGE (H)
MODEL
Encapsulant: Epoxy
MIN. MAX.
Standard Terminals: IM-1 and IM-2: 24 AWG; IM-4, IM-6
IM-1 0.10 100
and IM-9: 22 AWG; IM-8: 21 AWG; IM-10: 20 AWG, tinned
0.027 0.082
copper
0.10 1
IM-2
1.2 27
ENVIRONMENTAL PERFORMANCE
33 1000
TEST CONDITIONS SPECIFICATIONS
0.15 4.7
Barometric
5.6 33
C MIL-STD-202, method 105
IM-4
Pressure
36 240
Thermal Shock A-1 MIL-STD-202, method 107
270 1800
Flammability - MIL-STD-202, method 111
0.10 2.7
Overload - MIL-PRF-15305
3.3 27
IM-6
Low Temperature 33 220
- MIL-PRF-15305
Storage
270 1000
Resistance to
IM-8 1100 3600
A MIL-STD-202, method 210
Soldering Heat
IM-9 68 150
Resistance to
- MIL-STD-202, method 215 IM-10 3900 10 000
Solvents
DIMENSIONS in inches [millimeters]
C B
Typ.
D Dia.
A Dia.
MODEL A (DIA.) B C (TYP.) D (DIA.)
Max. 0.086 [2.18] 0.210 [5.33] 1.62 [41.15] 0.0215 [0.546]
IM-1
Min. 0.070 [1.78] 0.190 [4.83] 1.38 [35.05] 0.0185 [0.470]
Max. 0.105 [2.67] 0.260 [6.60] 1.63 [41.40] 0.0215 [0.546]
IM-2
Min. 0.085 [2.16] 0.240 [6.10] 1.25 [31.75] 0.0185 [0.470]
Max. 0.165 [4.19] 0.385 [9.78] 1.63 [41.40] 0.027 [0.686]
IM-4
Min. 0.145 [3.68] 0.365 [9.27] 1.25 [31.75] 0.023 [0.584]
Max. 0.200 [5.08] 0.450 [11.43] 1.63 [41.40] 0.027 [0.686]
IM-6
Min. 0.180 [4.57] 0.430 [10.92] 1.25 [31.75] 0.023 [0.584]
Max. 0.225 [5.72] 0.570 [14.48] 1.63 [41.40] 0.030 [0.762]
IM-8
Min. 0.205 [5.21] 0.550 [13.97] 1.25 [31.75] 0.026 [0.660]
Max. 0.260 [6.60] 0.570 [14.48] 1.63 [41.40] 0.027 [0.686]
IM-9
Min. 0.240 [6.10] 0.550 [13.97] 1.25 [31.75] 0.023 [0.584]
Max. 0.250 [6.35] 0.750 [19.05] 1.63 [41.40] 0.034 [0.864]
IM-10
Min. 0.230 [5.84] 0.730 [18.54] 1.25 [31.75] 0.030 [0.762]
Revison: 07-Feb-17 Document Number: 34030
1
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000Not for New Designs
IM
www.vishay.com
Vishay Dale
STANDARD ELECTRICAL SPECIFICATIONS
IND. TOL. Q TEST FREQUENCY L AND Q SRF MIN. DCR MAX. RATED DC CURRENT
(1) (2)
MODEL (H) (%) MIN. (MHz) (MHz) ( ) (mA)
IM-1 0.10 10 35 25.0 680.0 0.13 895
IM-1 0.12 10 35 25.0 650.0 0.15 835
IM-1 0.15 10 35 25.0 560.0 0.18 760
IM-1 0.18 10 35 25.0 540.0 0.21 705
IM-1 0.22 10 30 25.0 500.0 0.25 645
IM-1 0.27 10 30 25.0 440.0 0.38 525
IM-1 0.33 10 25 25.0 410.0 0.49 460
IM-1 0.39 10 25 25.0 380.0 0.59 420
IM-1 0.47 10 25 25.0 340.0 0.62 410
IM-1 0.56 10 40 25.0 250.0 0.18 510
IM-1 0.68 10 40 25.0 215.0 0.20 485
IM-1 0.82 10 40 25.0 200.0 0.22 465
IM-1 1.0 10 40 25.0 190.0 0.25 435
IM-1 1.2 10 35 7.9 170.0 0.28 410
IM-1 1.5 10 40 7.9 150.0 0.49 310
IM-1 1.8 10 40 7.9 135.0 0.56 290
IM-1 2.2 10 45 7.9 130.0 0.72 257
IM-1 2.7 10 45 7.9 110.0 0.85 236
IM-1 3.3 10 45 7.9 100.0 1.2 198
IM-1 3.9 10 50 7.9 95.0 1.5 178
IM-1 4.7 10 55 7.9 88.0 2.1 150
IM-1 5.6 10 55 7.9 78.0 2.8 130
IM-1 6.8 10 55 7.9 69.0 3.2 122
IM-1 8.2 10 45 7.9 52.0 4.4 104
IM-1 10.0 10 45 7.9 47.0 5.2 95
IM-1 12.0 10 40 2.5 31.0 3.0 126
IM-1 15.0 10 40 2.5 26.0 3.4 118
IM-1 18.0 10 40 2.5 23.0 3.8 112
IM-1 22.0 10 45 2.5 20.0 4.3 105
IM-1 27.0 10 45 2.5 17.0 4.7 100
IM-1 33.0 10 45 2.5 15.0 5.2 95
IM-1 39.0 10 45 2.5 13.5 6.8 83.5
IM-1 47.0 10 45 2.5 12.5 8.2 76
IM-1 56.0 10 45 2.5 11.5 10.0 69
IM-1 68.0 10 45 2.5 10.5 11.5 64
IM-1 82.0 10 45 2.5 10.0 16.0 54.5
IM-1 100.0 10 45 2.5 9.5 17.5 52
IM-2 0.027 20 40 25.0 875.0 0.03 2200
IM-2 0.033 10 40 25.0 850.0 0.035 2000
IM-2 0.039 10 40 25.0 825.0 0.04 1900
IM-2 0.047 10 40 25.0 800.0 0.045 1800
IM-2 0.056 10 40 25.0 775.0 0.05 1700
IM-2 0.068 10 40 25.0 750.0 0.06 1500
IM-2 0.082 10 40 25.0 725.0 0.07 1400
IM-2 0.10 10 40 25.0 680.0 0.08 1350
IM-2 0.12 10 40 25.0 640.0 0.09 1270
IM-2 0.15 10 38 25.0 600.0 0.10 1200
IM-2 0.18 10 35 25.0 550.0 0.12 1105
IM-2 0.22 10 33 25.0 510.0 0.14 1025
IM-2 0.27 10 33 25.0 430.0 0.16 960
IM-2 0.33 10 30 25.0 410.0 0.22 815
IM-2 0.39 10 30 25.0 365.0 0.30 700
IM-2 0.47 10 30 25.0 330.0 0.35 650
IM-2 0.56 10 30 25.0 300.0 0.50 545
IM-2 0.68 10 28 25.0 275.0 0.60 495
IM-2 0.82 10 28 25.0 250.0 0.85 415
IM-2 1.0 10 25 25.0 230.0 1.0 385
Notes
(1)
Measured with full length lead
(2)
Rated DC current based on maximum temperature rise as shown in table
Revison: 07-Feb-17 Document Number: 34030
2
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
