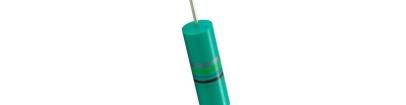

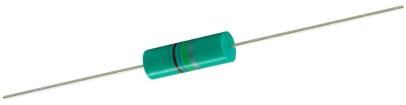

Not for New Designs IM-10RFCL-12 Vishay Dale Inductors, Commercial, Molded, Axial Leaded FEATURES Miniature shielded inductor High inductance-to-size ratio Inductance range is 0.10 H to 180 000 H ELECTRICAL SPECIFICATIONS Encapsulated non-flammable shielded unit 0.164 4.17 mm diameter by 0.450 11.43 mm long Inductance Tolerance: 10 % on Q-meter for 1 H to envelope 22 H 5 % 1000 cps bridge for 27 H to 10 000 H Offers extremely high inductance for density packaging Note L and Q are not always tested at the same frequency. Material categorization: for definitions of compliance Inductance values tested on Q-meter, are tested at standard test please see www.vishay.com/doc 99912 frequencies Dielectric Strength: 700 V at sea level RMS DENSITY SPECIFICATIONS Operating Temperature: -55 C to +125 C Weight: 4.1 g maximum Self-Resonant Frequency: Minimum SRF measured with full length leads on grid-dip meter ENVIRONMENTAL SPECIFICATIONS Q: Measured on a Q-meter Moisture Resistance: Meets requirements of MIL-PRF-15305 1 Rating: / W dissipation for L models Shock Resistance: Meets requirements of MIL-PRF-15305 2 Vibration: High frequency, 10 Hz to 2000 Hz at 20 G 10 % MECHANICAL SPECIFICATIONS maximum for 12 logarythmic swings, each of 20 min duration repeated for each of three mutually perpendicular Terminal Strength: Meets 5 lb pull test when tested per planes MIL-PRF-15305 (latest revision) DIMENSIONS in inches millimeters 1.30 33.02 0.310 7.87 Dia. Max. Typ. Min. 21 0.0285 0.002 0.900 22.86 0.724 0.051 Max. TCW STANDARD ELECTRICAL SPECIFICATIONS IND. TOL. Q TEST FREQUENCY Q SRF MIN. DCR MAX. RATED DC CURRENT (1) MODEL (H) (%) MIN. (MHz) (MHz) () (mA) IM-10RFCL-12 1.0 10 130 15 136 0.03 4000 IM-10RFCL-12 1.2 10 130 15 124 0.03 4000 IM-10RFCL-12 1.5 10 130 10 112 0.03 4000 IM-10RFCL-12 1.8 10 130 10 100 0.03 4000 IM-10RFCL-12 2.2 10 130 10 92 0.04 3500 IM-10RFCL-12 2.7 10 100 10 82 0.04 3500 IM-10RFCL-12 3.3 10 100 7.9 72 0.04 3500 IM-10RFCL-12 3.9 10 80 7.9 68 0.05 3100 IM-10RFCL-12 4.7 10 75 7.9 64 0.05 3100 IM-10RFCL-12 5.6 10 65 7.9 58 0.06 3000 IM-10RFCL-12 6.8 10 65 7.9 52 0.06 3000 IM-10RFCL-12 8.2 10 65 7.9 46 0.11 2400 IM-10RFCL-12 10 10 75 5.0 40 0.15 1800 IM-10RFCL-12 12 10 75 5.0 36 0.23 1600 IM-10RFCL-12 15 10 75 5.0 32 0.3 1300 IM-10RFCL-12 18 10 75 5.0 29 0.4 1150 IM-10RFCL-12 22 10 75 2.5 26 0.5 1000 Note (1) Model electricals and tolerances shown For technical questions, contact: magnetics vishay.com www.vishay.com Document Number: 34036 Revison: 07-Feb-17 1 IRON CORENot for New Designs IM-10RFCL-12 www.vishay.com Vishay Dale STANDARD ELECTRICAL SPECIFICATIONS IND. TOL. Q TEST FREQUENCY Q SRF MIN. DCR MAX. RATED DC CURRENT (1) MODEL (H) (%) MIN. (MHz) (MHz) () (mA) IM-10RFCL-12 27 5 70 2.5 24 0.6 900 IM-10RFCL-12 33 5 70 2.5 22 0.7 850 IM-10RFCL-12 39 5 70 2.5 21 1.1 720 IM-10RFCL-12 47 5 75 2.5 20 1.3 620 IM-10RFCL-12 56 5 80 2.5 18 1.8 540 IM-10RFCL-12 68 5 100 2.5 16 2.4 450 IM-10RFCL-12 82 5 100 2.5 14 2.8 425 IM-10RFCL-12 100 5 100 1.5 13 3.2 400 IM-10RFCL-12 120 5 100 1.5 12 4.8 360 IM-10RFCL-12 150 5 100 1.0 11 6.4 280 IM-10RFCL-12 180 5 95 1.0 10 9.5 240 IM-10RFCL-12 220 5 95 1.0 9 12 200 IM-10RFCL-12 270 5 70 1.0 7 13 195 IM-10RFCL-12 330 5 65 0.79 6 14 190 IM-10RFCL-12 390 5 65 0.79 5 15.5 180 IM-10RFCL-12 470 5 60 0.79 4 17 170 IM-10RFCL-12 560 5 75 0.50 3 18.5 165 IM-10RFCL-12 680 5 75 0.50 2.50 20 155 IM-10RFCL-12 820 5 75 0.50 2.00 22 150 IM-10RFCL-12 1000 5 75 0.50 1.90 24 145 IM-10RFCL-12 1200 5 75 0.50 1.70 27 137 IM-10RFCL-12 1500 5 75 0.40 1.50 29 130 IM-10RFCL-12 1800 5 65 0.40 1.40 32 125 IM-10RFCL-12 2200 5 65 0.25 1.20 35 120 IM-10RFCL-12 2700 5 65 0.25 1.00 40 112 IM-10RFCL-12 3300 5 65 0.25 0.95 45 105 IM-10RFCL-12 3900 5 65 0.25 0.80 49 100 IM-10RFCL-12 4700 5 65 0.25 0.75 53 95 IM-10RFCL-12 5600 5 65 0.25 0.70 60 90 IM-10RFCL-12 6800 5 65 0.25 0.60 67 85 IM-10RFCL-12 8200 5 65 0.25 0.50 75 82 IM-10RFCL-12 10 000 5 65 0.15 0.45 80 80 Note (1) Model electricals and tolerances shown MARKING - Color coded ORDERING INFORMATION IM-10RFCL-12 1.0 H 10 % EZ e2 MODEL INDUCTANCE INDUCTANCE PACKAGE JEDEC LEAD (Pb)-FREE VALUE TOLERANCE CODE STANDARD GLOBAL PART NUMBER I M 10 R F C L E Z 1 R 0 K 12 MODEL PACKAGE INDUCTANCE INDUCTANCE SERIES CODE VALUE TOLERANCE Revison: 07-Feb-17 Document Number: 34036 2 For technical questions, contact: magnetics vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 IRON CORE
