Not for New Designs
IMS-5
Vishay Dale

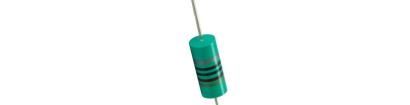

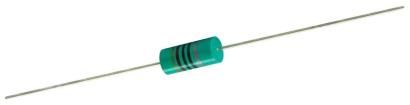

Inductors, Commercial, Molded, Shielded, Axial Leaded
FEATURES
Wide inductance range in small package
Flame retardant coating
ELECTRICAL SPECIFICATIONS
Electromagnetic shield-finest shield available
Inductance Tolerance: 10 % standard, 5 % available
Precision performance, excellent reliability,
Insulation Resistance: 1000 M minimum per sturdy construction
MIL-STD-202, method 302, test condition B
Epoxy molded construction provides superior moisture
Dielectric Withstanding Voltage: 1000 V per protection
AC
MIL-STD-202, method 301 (at sea level)
Material categorization: for definitions of compliance
Percent Coupling: 3 % maximum per MIL-PRF-15305 please see www.vishay.com/doc?99912
Operating Temperature: -55 C to +105 C
MECHANICAL SPECIFICATIONS
Terminals: 5 lb pull per MIL-STD-202, method 211, test
ENVIRONMENTAL PERFORMANCE
condition A
TEST CONDITIONS SPECIFICATIONS
Weight: IMS-5 = 0.85 g maximum
Barometric
C MIL-STD-202, method 105
Pressure
MATERIAL SPECIFICATIONS
Thermal Shock A-1 MIL-STD-202, method 107
Encapsulant: Epoxy
Flammability - MIL-STD-202, method 111
Standard Terminals: #22 AWG, tinned copper
Overload - MIL-PRF-15305
Low Temperature
INDUCTANCE RANGE AND MILITARY STANDARD
- MIL-PRF-15305
Storage
INDUCTANCE RANGE (H) MATERIAL
Resistance to
A MIL-STD-202, method 210
MIN. MAX. CORE SHIELD
Soldering Heat
0.10 0.82 Phenolic Powdered iron
Resistance to
- MIL-STD-202, method 215
Solvents
1.0 12 Powdered iron Powdered iron
15 8200 Ferrite Ferrite
DIMENSIONS in inches [millimeters]
1.44 0.188
[36.57 4.78]
0.025 0.002
0.162 0.010
0.410 0.020
[0.635 0.051]
[4.11 0.254]
[10.41 0.508]
STANDARD ELECTRICAL SPECIFICATIONS
RATED DC INCREMENTAL
IND. TOL. Q TEST FREQUENCY L AND Q SRF MIN. DCR MAX. CURRENT CURRENT
(1) (2) (3)
MODEL (H) (%) MIN. (MHz) (MHz) ( ) (mA) (mA)
IMS-5 0.10 10 50 25.0 250.0 0.025 1790 -
IMS-5 0.12 10 51 25.0 250.0 0.034 1530 -
IMS-5 0.15 10 51 25.0 250.0 0.037 1470 -
IMS-5 0.18 10 50 25.0 250.0 0.047 1300 -
IMS-5 0.22 10 49 25.0 250.0 0.067 1100 -
IMS-5 0.27 10 47 25.0 250.0 0.11 855 -
IMS-5 0.33 10 46 25.0 250.0 0.13 780 -
IMS-5 0.39 10 44 25.0 250.0 0.18 670 -
IMS-5 0.47 10 44 25.0 235.0 0.25 565 -
IMS-5 0.56 10 43 25.0 210.0 0.33 490 -
IMS-5 0.68 10 42 25.0 190.0 0.45 420 -
IMS-5 0.82 10 40 25.0 180.0 0.59 370 -
Notes
(1)
Measured with full length lead
(2)
Rated DC current: Based on maximum temperature rise not to exceed 15 C at +90 C ambient
(3)
Incremental current: The minimum typical current at which the inductance will be decreased by 5 % from its initial zero DC value
For technical questions, contact: magnetics@vishay.com www.vishay.com
Document Number: 34048
Revison: 07-Feb-17 1Not for New Designs
IMS-5
www.vishay.com
Vishay Dale
STANDARD ELECTRICAL SPECIFICATIONS
RATED DC INCREMENTAL
IND. TOL. Q TEST FREQUENCY L AND Q SRF MIN. DCR MAX. CURRENT CURRENT
(1) (2) (3)
MODEL (H) (%) MIN. (MHz) (MHz) ( ) (mA) (mA)
IMS-5 1.0 10 44 25.0 140.0 0.07 1070 -
IMS-5 1.2 10 44 7.9 130.0 0.10 895 -
IMS-5 1.5 10 44 7.9 115.0 0.12 815 -
IMS-5 1.8 10 44 7.9 105.0 0.14 775 -
IMS-5 2.2 10 44 7.9 100.0 0.19 650 -
IMS-5 2.7 10 44 7.9 92.0 0.28 535 -
IMS-5 3.3 10 44 7.9 85.0 0.35 480 -
IMS-5 3.9 10 44 7.9 75.0 0.40 450 -
IMS-5 4.7 10 44 7.9 70.0 0.55 380 -
IMS-5 5.6 10 44 7.9 65.0 0.72 335 -
IMS-5 6.8 10 50 7.9 55.0 1.02 280 -
IMS-5 8.2 10 50 7.9 50.0 1.32 250 -
IMS-5 10 10 50 7.9 46.0 1.62 220 -
IMS-5 12 10 55 2.5 44.0 2.00 200 -
IMS-5 15 10 45 2.5 49.0 0.80 315 250.0
IMS-5 18 10 45 2.5 45.0 0.89 300 235.0
IMS-5 22 10 45 2.5 41.0 0.96 290 220.0
IMS-5 27 10 45 2.5 38.0 1.19 260 200.0
IMS-5 33 10 45 2.5 34.0 1.37 240 190.0
IMS-5 39 10 50 2.5 29.0 1.93 205 180.0
IMS-5 47 10 50 2.5 27.0 2.11 195 175.0
IMS-5 56 10 50 2.5 25.0 2.23 190 160.0
IMS-5 68 10 50 2.5 21.0 2.70 170 150.0
IMS-5 82 10 50 2.5 10.5 2.44 180 140.0
IMS-5 100 10 50 2.5 10.0 3.12 160 120.0
IMS-5 120 10 55 0.79 9.7 3.6 150 95.0
IMS-5 150 10 55 0.79 8.5 4.1 140 90.0
IMS-5 180 10 55 0.79 8.0 4.4 135 85.0
IMS-5 220 10 55 0.79 7.5 5.0 125 80.0
IMS-5 270 10 55 0.79 7.0 5.8 115 70.0
IMS-5 330 10 55 0.79 6.5 6.4 110 65.0
IMS-5 390 10 60 0.79 6.2 7.4 105 60.0
IMS-5 470 10 60 0.79 5.7 9.5 92 58.0
IMS-5 560 10 60 0.79 4.7 10.5 90 55.0
IMS-5 680 10 60 0.79 4.5 11.8 80 50.0
IMS-5 820 10 60 0.79 4.2 13.0 80 45.0
IMS-5 1000 10 60 0.79 3.8 17.5 70 40.0
IMS-5 1200 10 45 0.25 1.5 22.1 60 35.0
IMS-5 1500 10 45 0.25 1.2 26.5 55 33.0
IMS-5 1800 10 45 0.25 1.0 29.9 50 30.0
IMS-5 2200 10 45 0.25 0.97 33.8 50 27.0
IMS-5 2700 10 45 0.25 0.92 47.3 40 25.0
IMS-5 3300 10 45 0.25 0.84 53.0 40 22.0
IMS-5 3900 10 45 0.25 0.80 73.8 35 20.0
IMS-5 4700 10 45 0.25 0.74 81.6 31 19.0
IMS-5 5600 10 44 0.25 0.73 98.9 28 17.0
IMS-5 6800 10 40 0.25 0.66 111.0 27 16.0
IMS-5 8200 10 40 0.25 0.54 119.0 26 15.0
Notes
(1)
Measured with full length lead
(2)
Rated DC current: Based on maximum temperature rise not to exceed 15 C at +90 C ambient
(3)
Incremental current: The minimum typical current at which the inductance will be decreased by 5 % from its initial zero DC value
ORDERING INFORMATION
IMS-5 10 H 10 % ER e2
MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE PACKAGE CODE JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I M S 0 5 E R 100 K
MODEL PACKAGE INDUCTANCE INDUCTANCE
CODE VALUE TOLERANCE
Revison: 07-Feb-17 Document Number: 34048
