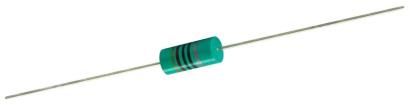

IMS05EB4R7K Vishay

Not for New Designs IMS-5 Vishay Dale Inductors, Commercial, Molded, Shielded, Axial Leaded FEATURES Wide inductance range in small package Flame retardant coating ELECTRICAL SPECIFICATIONS Electromagnetic shield-finest shield available Inductance Tolerance: 10 % standard, 5 % available Precision performance, excellent reliability, Insulation Resistance: 1000 M minimum per sturdy construction MIL-STD-202, method 302, test condition B Epoxy molded construction provides superior moisture Dielectric Withstanding Voltage: 1000 V per protection AC MIL-STD-202, method 301 (at sea level) Material categorization: for definitions of compliance Percent Coupling: 3 % maximum per MIL-PRF-15305 please see www.vishay.com/doc?99912 Operating Temperature: -55 C to +105 C MECHANICAL SPECIFICATIONS Terminals: 5 lb pull per MIL-STD-202, method 211, test ENVIRONMENTAL PERFORMANCE condition A TEST CONDITIONS SPECIFICATIONS Weight: IMS-5 = 0.85 g maximum Barometric C MIL-STD-202, method 105 Pressure MATERIAL SPECIFICATIONS Thermal Shock A-1 MIL-STD-202, method 107 Encapsulant: Epoxy Flammability - MIL-STD-202, method 111 Standard Terminals: #22 AWG, tinned copper Overload - MIL-PRF-15305 Low Temperature INDUCTANCE RANGE AND MILITARY STANDARD - MIL-PRF-15305 Storage INDUCTANCE RANGE (H) MATERIAL Resistance to A MIL-STD-202, method 210 MIN. MAX. CORE SHIELD Soldering Heat 0.10 0.82 Phenolic Powdered iron Resistance to - MIL-STD-202, method 215 Solvents 1.0 12 Powdered iron Powdered iron 15 8200 Ferrite Ferrite DIMENSIONS in inches [millimeters] 1.44 0.188 [36.57 4.78] 0.025 0.002 0.162 0.010 0.410 0.020 [0.635 0.051] [4.11 0.254] [10.41 0.508] STANDARD ELECTRICAL SPECIFICATIONS RATED DC INCREMENTAL IND. TOL. Q TEST FREQUENCY L AND Q SRF MIN. DCR MAX. CURRENT CURRENT (1) (2) (3) MODEL (H) (%) MIN. (MHz) (MHz) ( ) (mA) (mA) IMS-5 0.10 10 50 25.0 250.0 0.025 1790 - IMS-5 0.12 10 51 25.0 250.0 0.034 1530 - IMS-5 0.15 10 51 25.0 250.0 0.037 1470 - IMS-5 0.18 10 50 25.0 250.0 0.047 1300 - IMS-5 0.22 10 49 25.0 250.0 0.067 1100 - IMS-5 0.27 10 47 25.0 250.0 0.11 855 - IMS-5 0.33 10 46 25.0 250.0 0.13 780 - IMS-5 0.39 10 44 25.0 250.0 0.18 670 - IMS-5 0.47 10 44 25.0 235.0 0.25 565 - IMS-5 0.56 10 43 25.0 210.0 0.33 490 - IMS-5 0.68 10 42 25.0 190.0 0.45 420 - IMS-5 0.82 10 40 25.0 180.0 0.59 370 - Notes (1) Measured with full length lead (2) Rated DC current: Based on maximum temperature rise not to exceed 15 C at +90 C ambient (3) Incremental current: The minimum typical current at which the inductance will be decreased by 5 % from its initial zero DC value For technical questions, contact: magnetics@vishay.com www.vishay.com Document Number: 34048 Revison: 07-Feb-17 1Not for New Designs IMS-5 www.vishay.com Vishay Dale STANDARD ELECTRICAL SPECIFICATIONS RATED DC INCREMENTAL IND. TOL. Q TEST FREQUENCY L AND Q SRF MIN. DCR MAX. CURRENT CURRENT (1) (2) (3) MODEL (H) (%) MIN. (MHz) (MHz) ( ) (mA) (mA) IMS-5 1.0 10 44 25.0 140.0 0.07 1070 - IMS-5 1.2 10 44 7.9 130.0 0.10 895 - IMS-5 1.5 10 44 7.9 115.0 0.12 815 - IMS-5 1.8 10 44 7.9 105.0 0.14 775 - IMS-5 2.2 10 44 7.9 100.0 0.19 650 - IMS-5 2.7 10 44 7.9 92.0 0.28 535 - IMS-5 3.3 10 44 7.9 85.0 0.35 480 - IMS-5 3.9 10 44 7.9 75.0 0.40 450 - IMS-5 4.7 10 44 7.9 70.0 0.55 380 - IMS-5 5.6 10 44 7.9 65.0 0.72 335 - IMS-5 6.8 10 50 7.9 55.0 1.02 280 - IMS-5 8.2 10 50 7.9 50.0 1.32 250 - IMS-5 10 10 50 7.9 46.0 1.62 220 - IMS-5 12 10 55 2.5 44.0 2.00 200 - IMS-5 15 10 45 2.5 49.0 0.80 315 250.0 IMS-5 18 10 45 2.5 45.0 0.89 300 235.0 IMS-5 22 10 45 2.5 41.0 0.96 290 220.0 IMS-5 27 10 45 2.5 38.0 1.19 260 200.0 IMS-5 33 10 45 2.5 34.0 1.37 240 190.0 IMS-5 39 10 50 2.5 29.0 1.93 205 180.0 IMS-5 47 10 50 2.5 27.0 2.11 195 175.0 IMS-5 56 10 50 2.5 25.0 2.23 190 160.0 IMS-5 68 10 50 2.5 21.0 2.70 170 150.0 IMS-5 82 10 50 2.5 10.5 2.44 180 140.0 IMS-5 100 10 50 2.5 10.0 3.12 160 120.0 IMS-5 120 10 55 0.79 9.7 3.6 150 95.0 IMS-5 150 10 55 0.79 8.5 4.1 140 90.0 IMS-5 180 10 55 0.79 8.0 4.4 135 85.0 IMS-5 220 10 55 0.79 7.5 5.0 125 80.0 IMS-5 270 10 55 0.79 7.0 5.8 115 70.0 IMS-5 330 10 55 0.79 6.5 6.4 110 65.0 IMS-5 390 10 60 0.79 6.2 7.4 105 60.0 IMS-5 470 10 60 0.79 5.7 9.5 92 58.0 IMS-5 560 10 60 0.79 4.7 10.5 90 55.0 IMS-5 680 10 60 0.79 4.5 11.8 80 50.0 IMS-5 820 10 60 0.79 4.2 13.0 80 45.0 IMS-5 1000 10 60 0.79 3.8 17.5 70 40.0 IMS-5 1200 10 45 0.25 1.5 22.1 60 35.0 IMS-5 1500 10 45 0.25 1.2 26.5 55 33.0 IMS-5 1800 10 45 0.25 1.0 29.9 50 30.0 IMS-5 2200 10 45 0.25 0.97 33.8 50 27.0 IMS-5 2700 10 45 0.25 0.92 47.3 40 25.0 IMS-5 3300 10 45 0.25 0.84 53.0 40 22.0 IMS-5 3900 10 45 0.25 0.80 73.8 35 20.0 IMS-5 4700 10 45 0.25 0.74 81.6 31 19.0 IMS-5 5600 10 44 0.25 0.73 98.9 28 17.0 IMS-5 6800 10 40 0.25 0.66 111.0 27 16.0 IMS-5 8200 10 40 0.25 0.54 119.0 26 15.0 Notes (1) Measured with full length lead (2) Rated DC current: Based on maximum temperature rise not to exceed 15 C at +90 C ambient (3) Incremental current: The minimum typical current at which the inductance will be decreased by 5 % from its initial zero DC value ORDERING INFORMATION IMS-5 10 H 10 % ER e2 MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE PACKAGE CODE JEDEC LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I M S 0 5 E R 100 K MODEL PACKAGE INDUCTANCE INDUCTANCE CODE VALUE TOLERANCE Revison: 07-Feb-17 Document Number: 34048 2 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
