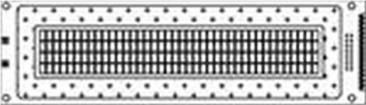

LCD-024N002A www.vishay.com Vishay 24 x 2 Character LCD FEATURES Type: Character Display format: 24 x 2 characters Built-in controller: ST 7066 (or equivalent) Duty cycle: 1/16 5 x 8 dots includes cursor + 5 V power supply (also available for + 3 V) LED can be driven by pin 1, pin 2, pin 15, pin 16 or A and K N.V. optional for + 3 V power supply Material categorization: For definitions of compliance please see www.vishay.com/doc 99912 MECHANICAL DATA ABSOLUTE MAXIMUM RATINGS ITEM STANDARD VALUE UNIT STANDARD VALUE ITEM SYMBOL UNIT Module Dimension 118.0 x 36.0 MIN. TYP. MAX. Viewing Area 94.5 x 16.0 Power Supply V to V - 0.3 - 7.0 DD SS V Dot Size 0.60 x 0.65 Input Voltage V - 0.3 - V I DD mm Dot Pitch 0.70 x 0.65 Note V = 0 V, V = 5.0 V Mounting Hole 113.0 x 31.0 SS DD Character Size 3.2 x 5.55 ELECTRICAL CHARACTERISTICS STANDARD VALUE ITEM SYMBOL CONDITION UNIT MIN. TYP. MAX. V = + 5 V 4.7 5.0 5.3 DD Input Voltage V V DD V = + 3 V 2.7 3.0 5.3 DD Supply Current I V = + 5 V -0.8 1.1 mA DD DD - 20 C 5.1 5.3 5.7 0 C 4.6 4.9 5.2 Recommended LC Driving Voltage for Normal Temperature V to V 25 C 4.1 4.5 4.7 V DD 0 Version Module 50 C 3.9 4.2 4.5 70 C 3.7 3.9 4.3 LED Forward Voltage V 25 C - 4.2 4.6 V F LED Forward Current I 25 C - 190 380 mA F EL Power Supply Current I V = 110 V , 400 Hz -- 5.0 mA EL EL AC OPTIONS PROCESS COLOR BACKLIGHT STN STN STN FSTN STN TN None LED EL CCFL Gray Yellow Blue B&W Color xxxx x xxx For detailed information, please see the Product Numbering System document. Revision: 09-Oct-12 Document Number: 37315 1 For technical questions, contact: displays vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000LCD-024N002A www.vishay.com Vishay DISPLAY CHARACTER ADDRESS CODE Display Position 123 456789 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 DD RAM Address 000102 030405 060708 09 0A 0B 0C 0D 0E 0F 1011 121314 151617 DD RAM Address 404142 434445 464748 49 4A 4B 4C 4D 4E 4F 5051 525354 555657 INTERFACE PIN FUNCTION PIN NO. SYMBOL FUNCTION 1 V Ground SS 2 V + 3 V or + 5 V DD 3 V Contrast adjustment 0 4 RS H/L register select signal 5 R/W H/L read/write signal 6E H L enable signal 7 DB0 H/L data bus line 8 DB1 H/L data bus line 9 DB2 H/L data bus line 10 DB3 H/L data bus line 11 DB4 H/L data bus line 12 DB5 H/L data bus line 13 DB6 H/L data bus line 14 DB7 H/L data bus line 15 A/V + 4.2 V for LED (R = 0 )/negative voltage output EE A 16 K Power supply for B/L (0 V) DIMENSIONS in millimeters 3.7 3.2 2.5 0.65 0.6 2.54 Pin Detail 118.0 0.5 Dot Size 10.5 102.5 14.5 94.5 (VA) 17.6 88.3 (AA) 2.25 13.6 Max. 9.3 Max. 9.0 4.7 16 15 A 2 1 K 1.6 1.6 4 x 1.0 4 x 1.0 PTH 4 x 2.5 PTH 4 x 1.8 PAD 4 x 5.0 PAD LED B/L EL or NO B/L 2.5 113.0 Revision: 09-Oct-12 Document Number: 37315 2 For technical questions, contact: displays vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 36.0 0.3 28.8 3.6 16.0 (VA) 10.0 11.5 (AA) 12.25 7.0 14.5 17.78 7.84 (P2.54 x 7) 15.0 10.5 31.0 2.5 5.95 5.55 0.7 0.65
