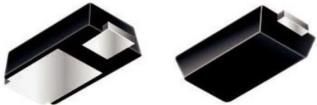

333 3 MSE07PB, MSE07PD, MSE07PG, MSE07PJ www.vishay.com Vishay General Semiconductor Surface-Mount ESD Capability Rectifier FEATURES Available Very low profile - typical height of 0.65 mm eSMP Series Ideal for automated placement K Oxide planar chip junction Low forward voltage drop, low leakage current A ESD capability Top View Bottom View Meets MSL level 1, per J-STD-020, LF maximum peak of 260 C MicroSMP (DO-219AD) AEC-Q101 qualified Cathode Anode Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 LINKS TO ADDITIONAL RESOURCES TYPICAL APPLICATIONS General purpose, polarity protection, and rail-to-rail 3D Models protection in both consumer and automotive applications. MECHANICAL DATA PRIMARY CHARACTERISTICS Case: MicroSMP (DO-219AD) I 0.7 A F(AV) Molding compound meets UL 94 V-0 flammability rating V 100 V, 200 V, 400 V, 600 V RRM Base P/N-M3 - halogen-free, RoHS-compliant, and I 20 A FSM commercial grade V at I = 0.7 A (T = 125 C) 0.83 V F F A Base P/NHM3 - halogen-free, RoHS-compliant, and I 1 A automotive grade R T max. 175 C J Terminals: matte tin plated leads, solderable per Package MicroSMP (DO-219AD) J-STD-002 and JESD 22-B102 M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix Circuit configuration Single meets JESD 201 class 2 whisker test Polarity: color band denotes the cathode end MAXIMUM RATINGS (T = 25 C, unless otherwise noted) A PARAMETER SYMBOL MSE07PB MSE07PD MSE07PG MSE07PJ UNIT Device marking code 07B 07D 07G 07J Max. repetitive peak reverse voltage V 100 200 400 600 V RRM Max. average forward rectified current (fig. 1) I 0.7 A F(AV) Peak forward surge current 10 ms single half I 20 A FSM sine-wave superimposed on rated load Operating junction and storage temperature range T , T -55 to +175 C J STG Revision: 04-Aug-2020 Document Number: 87795 1 For technical questions within your region: DiodesAmericas vishay.com, DiodesAsia vishay.com, DiodesEurope vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 DDD DMSE07PB, MSE07PD, MSE07PG, MSE07PJ www.vishay.com Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (T = 25 C, unless otherwise noted) A PARAMETER TEST CONDITIONS SYMBOL TYP. MAX. UNIT T = 25 C 0.94 1.08 A (1) Instantaneous forward voltage I = 0.7 A V V F F T = 125 C 0.83 0.95 A T = 25 C -1.0 A (2) Reverse current Rated V I A R R T = 125 C 3.7 50 A Typical reverse recovery time I = 0.5 A, I = 1.0 A, I = 0.25 A t 780 - ns F R rr rr Typical junction capacitance 4.0 V, 1 MHz C 5- pF J Notes (1) Pulse test: 300 s pulse width, 1 % duty cycle (2) Pulse test: Pulse width 40 ms THERMAL CHARACTERISTICS (T = 25 C, unless otherwise noted) A PARAMETER SYMBOL MSE07PB MSE07PD MSE07PG MSE07PJ UNIT (1) R 110 JA (1) Typical thermal resistance R 30 C/W JL (1) R 40 JC Note (1) Thermal resistance from junction to ambient and junction to lead mounted on PCB with 6.0 mm x 6.0 mm copper pad areas. R is measured JL at the terminal of cathode band. IMMUNITY TO ELECTRICAL STATIC DISCHARGE TO THE FOLLOWING STANDARDS (T = 25 C, unless otherwise noted) A STANDARD TEST TYPE TEST CONDITIONS SYMBOL CLASS VALUE AEC-Q101-001 Human body model (contact mode) C = 100 pF, R = 1.5 k V H3B > 8 kV C ORDERING INFORMATION (Example) UNIT WEIGHT PREFERRED P/N PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE (g) MSE07PJ-M3/89A 0.006 89A 4500 7 diameter plastic tape and reel (1) MSE07PJHM3/89A 0.006 89A 4500 7 diameter plastic tape and reel Note (1) AEC-Q101 qualified Revision: 04-Aug-2020 Document Number: 87795 2 For technical questions within your region: DiodesAmericas vishay.com, DiodesAsia vishay.com, DiodesEurope vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
