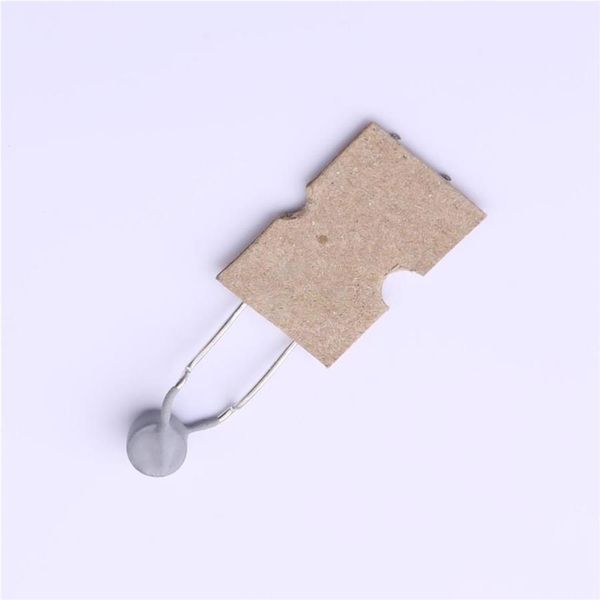

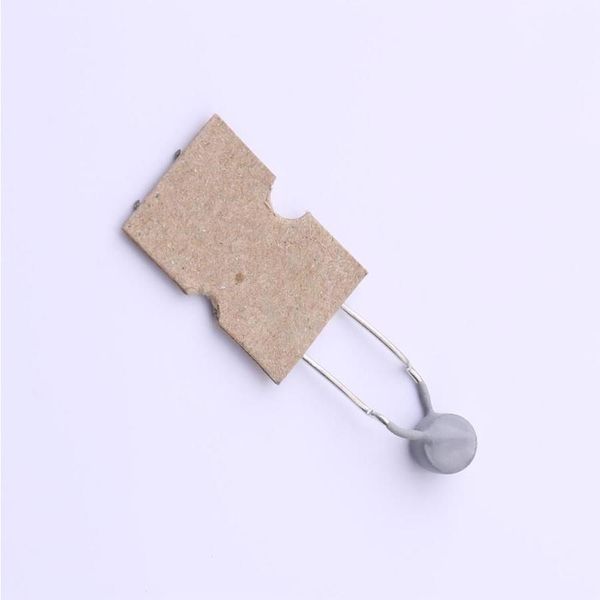

PTCCL05H630HTE Vishay

2381 66. 5...3/PTCCL..H...HBE Vishay BCcomponents 265 V PTC Thermistors For Overload Protection FEATURES Wide range of trip and non-trip currents: From 11 mA up to 800 mA Small ratio between trip and non-trip currents (I /I = 1.5 at 25 C) t nt High maximum inrush current (up to 5.5 A) Leaded parts withstand mechanical stresses and vibration UL file E148885 according to XGPU standard UL1434 UL approved PTCs are guaranteed to withstand severe test programs Long-life cycle tests (over 5000 trip cycles) Long-life storage tests (3000 h at 250 C) Electrical cycle tests at low ambient temperatures (- 40 C or 0 C) Damp-heat and water immersion tests Overvoltage tests at up to 200 % of rated voltage Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC APPLICATIONS Over-temperature/over-load protection: Telecommunications Automotive systems Industrial electronics Consumer electronics Electronic data processing QUICK REFERENCE DATA DESCRIPTION These directly heated thermistors have a positive PARAMETER VALUE UNIT temperature coefficient and are primarily intended for overload protection. They consist of a metallized ceramic Holding current 0.011 to 0.8 A disk with two tinned brass or copper clad steel leads reflow soldered to it and coated with a high temperature silicone Resistance at 25 C (R ) 2.1 to 3000 lacquer. Leadless disks and leaded disks without coating are 25 available on request. I 0.8 to 5.5 A max. MOUNTING The PTC Thermistors are suitable for processing on Switch temperature 140 C automatic insertion equipment. Typical soldering Maximum voltage (RMS or DC) 265 V 235 C duration: 5 s (Pb-bearing) 245 C, duration: 5 s (Lead (Pb)-free) Operating temperature range 0 to 70 C Resistance to soldering heat at max. voltage 260 C, duration: 10 s max. Climatic category 25/125/56 MARKING Only the grey lacquered thermistors with a diameter of 8.5 mm to 20.5 mm are marked with BC, R value (example 25 1R9) on one side and I , V on the other side. nt max. Document Number: 29087 For technical questions, contact: nlr vishay.com www.vishay.com Revision: 18-Aug-09 252381 66. 5...3/PTCCL..H...HBE 265 V PTC Thermistors Vishay BCcomponents For Overload Protection (1) ELECTRICAL DATA AND ORDERING INFORMATION for 2381 66. 5...3 max. voltage = 265 V (AC or DC) (2) I I I MAX. CATALOG NUMBERS I res nt t R DISSIP. D 25 MAX. MIN. MAX. at V max. FACTOR MAX. 20 % at 25 C at 25 C at 25 C and 25 C BULK TAPE ON REEL (mW/K) (mm) ( ) (mA) (mA) (mA) (mA) 11 17 3000 80 6.5 7.3 5 2381 660 51193 2381 660 61193 15 23 1900 110 6.5 7.3 5 2381 660 51593 2381 660 61593 19 29 1200 140 6.5 7.3 5 2381 660 51993 2381 660 61993 28 42 500 200 6.8 7.3 5 2381 660 52893 2381 660 62893 39 59 260 300 6.8 7.3 5 2381 660 53993 2381 660 63993 63 95 120 450 7 7.3 5 2381 660 56393 2381 660 66393 76 115 85 550 7 7.3 5 2381 660 57693 2381 660 67693 95 143 56 600 7 7.3 5 2381 660 59593 2381 660 69593 110 165 48 650 7.5 8.3 7 2381 661 51113 2381 661 61113 140 210 29 800 8 8.3 7 2381 661 51413 2381 661 61413 170 255 22 900 9 9 8.5 2381 661 51713 2381 661 61713 190 285 18 1000 9.5 9 8.5 2381 661 51913 2381 661 61913 210 315 17 1300 10 10.5 10.5 2381 662 52113 2381 662 62113 250 375 12 1500 11 10.5 10.5 2381 662 52513 2381 662 62513 280 420 11 1800 12 11.7 12.5 2381 662 52813 2381 662 62813 320 480 8.4 2200 13 11.7 12.5 2381 662 53213 2381 662 63213 400 600 6.6 3000 15 15.5 16.5 2381 663 54013 - 490 735 4.4 3500 16 15.5 16.5 2381 663 54913 - 590 855 4 4500 19.5 19.8 20.5 2381 664 55913 - 700 1050 2.8 5500 21 19.8 20.5 2381 664 57013 - (3) 800 1200 2.1 5500 22.5 19.8 20.5 2381 664 58013 - Notes (1) The thermistors are clamped at the seating plane (2) I is the maximum overload current that may flow through the PTC when it passes from the low ohmic to the high ohmic state. max. UL approval: I x 0.75 max. (3) Not UL approved SAP AND 12NC PART NUMBERS 12NC SAP CODING 12NC SAP CODING 2381 660 x1193 PTCCL05H110HyE 2381 661 x1913 PTCCL09H191HyE 2381 660 x1593 PTCCL05H150HyE 2381 662 x2113 PTCCL11H211HyE 2381 660 x1993 PTCCL05H190HyE 2381 662 x2513 PTCCL11H251HyE 2381 660 x2893 PTCCL05H280HyE 2381 662 x2813 PTCCL13H281HyE 2381 660 x3993 PTCCL05H390HyE 2381 662 x3213 PTCCL13H321HyE 2381 660 x6393 PTCCL05H630HyE 2381 663 54013 PTCCL17H401HBE 2381 660 x7693 PTCCL05H760HyE 2381 663 54913 PTCCL17H491HBE 2381 660 x9593 PTCCL05H950HyE 2381 664 55913 PTCCL21H591HBE 2381 661 x1113 PTCCL07H111HyE 2381 664 57013 PTCCL21H701HBE 2381 661 x1413 PTCCL07H141HyE 2381 664 58013 PTCCL21H801HBE 2381 661 x1713 PTCCL09H171HyE Notes For bulk parts replace x by 5 and y by B For taped on reel parts replace x by 6 and y by T CURRENT DEVIATION AS A FUNCTION OF THE AMBIENT TEMPERATURE 250 % 200 I t 150 I nt I 100 max 50 0 - 50 - 25 0 25 50 75 100 T (C) amb www.vishay.com For technical questions, contact: nlr vishay.com Document Number: 29087 26 Revision: 18-Aug-09
