811-431 Wago

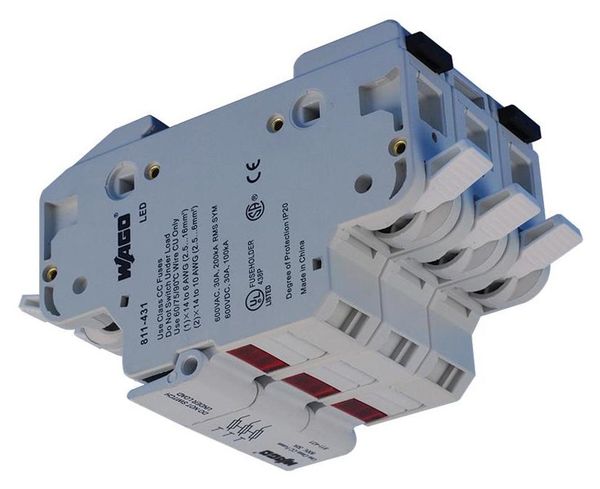

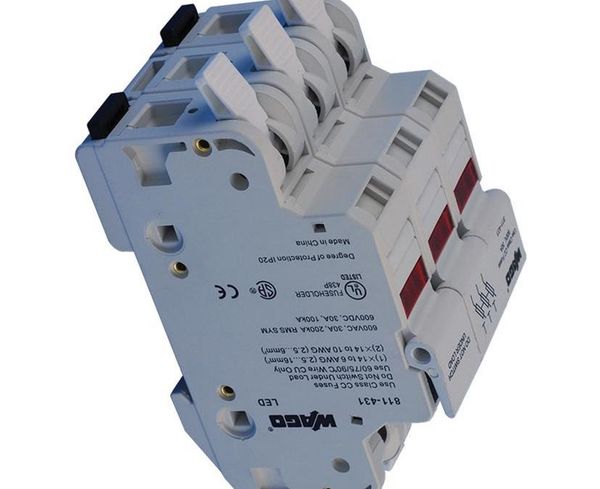

Printview: Fuse terminal block for class CC fuses with blown fuse indication 90 600 VAC, 115 600 VDC suitable for DIN35 rail acc. to EN 60715 3-pole - Item No.: 811-431 . Fuse terminal block for class CC fuses with blown fuse indication 90 600 VAC, 115 600 VDC suitable for DIN35 rail acc. to EN 60715 3-pole Item No.: 811-431 . Fuse terminal block for class CC fuses with blown fuse indication 90 600 VAC, 115 600 VDC suitable for DIN35 rail acc. to EN 60715 3-pole . Marking . Business data Supplier WAGO Item no. 811-431 GTIN / EAN 4050821508298 Content 1 Order amount 1 Customer item number . Notes Safety information 1: Electrical ratings are given by the fuse and blown fuse indication. Technical data Miscellaneous No. of poles 3 Total number of connection points 6 Total number of potentials 3 Color light gray Ratings according to 1 IEC/EN 60947-7-3 Nominal current A 32 A Connection technology (1) CAGE CLAMP Solid sizes 1 2.5 16 mm / 16 6 AWG WAGO Kontakttechnik GmbH & Co. KG 1Printview: Fuse terminal block for class CC fuses with blown fuse indication 90 600 VAC, 115 600 VDC suitable for DIN35 rail acc. to EN 60715 3-pole - Item No.: 811-431 Technical data Fine-stranded wires 1 2.5 16 mm / 16 6 AWG Strip length 1 12 13 mm / 0.47 0.51 in Type of wiring Front-entry wiring Design horizontal Insulating material Polyamide 66 (PA 66) Weight g 1.111 g Width 52.5 mm / 2.067 in Height from upper-edge of DIN-rail mm 55 mm Height from upper-edge of DIN-rail 55 mm / 2.165 in Length 105 mm / 4.134 in Type of mounting DIN 35 rail Safety information 2 Temperature scale handling from -35C +85C WAGO Kontakttechnik GmbH & Co. KG 2
