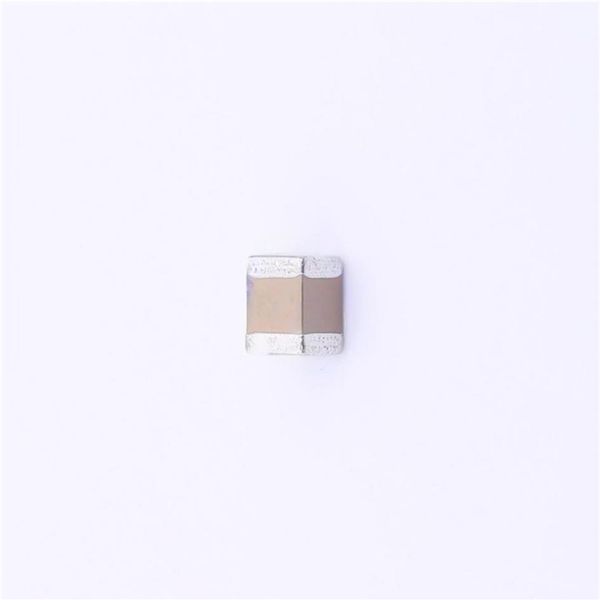

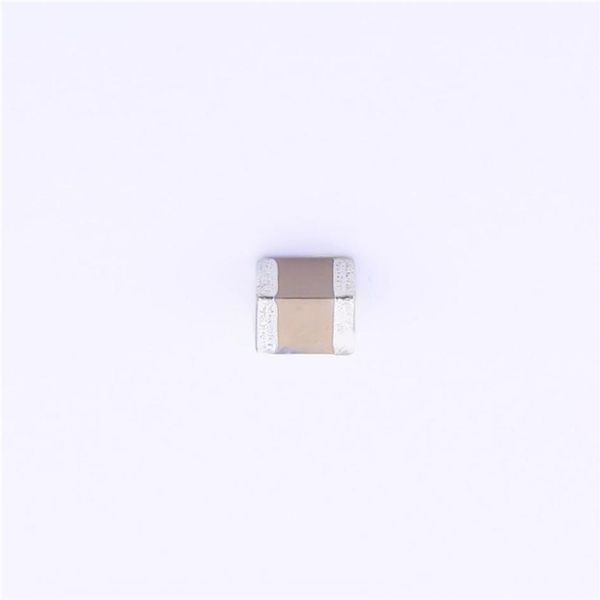

1210X106K250CT Walsin

Approval sheet High Capacitance Capacitors MULTILAYER CERAMIC CAPACITORS High Capacitance Series 0402 to 1812 Sizes X7R, X5R, X6S & Y5V Dielectrics RoHS Compliance *Contents in this sheet are subject to change without prior notice. Page 1 of 15 ASC_ High Capacitance_002X_AS Nov. 2013 Approval sheet High Capacitance Capacitors 1. DESCRIPTION MLCC consists of a conducting material and electrodes. To manufacture a chip-type SMT and achieve miniaturization, high density and high efficiency, ceramic condensers are used. WTC high capacitance MLCC offers low ESR and excellent frequency characteristics to be suited for coupling and decoupling applications in circuit. The high dielectric constant material X7R, X5R and Y5V are used for this series product. 2. FEATURES 3. APPLICATIONS a. Small size with high capacitance. a. Digital circuit coupling or decoupling applications. b. Capacitor with lead-free termination (pure Tin). b. For high frequency and high-density type power suppliers. c. For bypassing. 4. HOW TO ORDER 1206 F 106 Z 100 C T Size Dielectric Capacitance Tolerance Rated voltage Termination Packaging Inch (mm) B=X7R Two significant digits K=10% Two significant digits C=Cu/Ni/Sn T=7 reeled 0402 (1005) X=X5R followed by no. of zeros. M=20% followed by no. of G=13 reeled 0603 (1608) S=X6S And R is in place of Z=-20/+80% zeros. And R is in 0805 (2012) F=Y5V decimal point. place of decimal 1206 (3216) point. 1210 (3225) eg.: 6 1812 (4532) 106=10x10 6R3=6.3 VDC =10F 100=10 VDC 160=16 VDC 250=25 VDC 500=50 VDC 101=100 VDC Page 2 of 15 ASC_ High Capacitance_002X_AS Nov. 2013
