High Voltage Class II Ceramic Disc Capacitors CDR Series
FEATURES
Large capacitance in small sizes
Non linear temperature coefficient of capacitance.
RoHS Compliant
CHARACTERISTICS
Item Characteristics
Operating Temperature Range -25C ~ +85C
Capacitance Tolerance (min.) Within the tolerance at 1MHz, 1~3Vrms, 25C
Working Voltage (WVDC) 1KWV, 2KWV, 3KWV, 6KWV
Insulation Resistance 10,000M min. or 200MF, whichever is less
Test Voltage 2.5 x WVDC
Life Test At 2 x WVDC @85C for 1000 hours @ 85C, capacitors shall meet the following: the capacitance change for
-3
Y5P will be 10%; Z5U will be 20%; Z5V will be 30%: the dissipation factor for Y5P and Z5U will be 50x10 ;
-3
Z5V will be 75x10 .
Humidity Test
At exposure in the ambient temperature of 40C, and at 95% RH for 500 hours: the capacitance change for Y5P will
-3
be 10%; Z5U will be 20%; Z5V will be 30%: the dissipation factor for Y5P and Z5U will be 50x10 ; Z5V will be
-3
75x10 .
PART NUMBERING SYSTEM
1st 2nd #
digit digit 's
-
1 4 0 1 0 2 P 6- 1 0 1 K R C
Series Voltage Temp. Lead Capacitance (pF) Tolerance Suffix (RoHS
Coeff. Space Compliant)
Voltage Code Temp. Coeff. Code Lead Space Code Tolerance Code
1K 102 Y5P P 6.35mm 6 0.25pF C
2K 202 Z5U Z 9.52mm 9 5% J
3K 302 Z5V Q 10% K
6K 602 20% M
0.5pF D
+80/-20% Z
TEMPERATURE COEFFICIENT CHARACTERISTICS
Temperature Coefficient Y5P Z5U Z5V
Operating Temp. Range -25C ~ +85C +10C ~ +85C +10C ~ +85C
Capacitance Change 10% +20, -55% +30, -80
XICON PASSIVE COMPONENTS (800) 628-0544
XC-600138 Date Revised: 7/17/06
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.High Voltage Class II Ceramic Disc Capacitors CDR Series

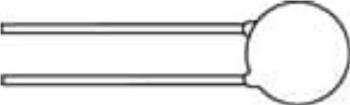

DIMENSIONS (mm), CAPACITANCE RANGES (pF)
Straight Formed
D max. 6.0 max. D max. 6 .0 max.
2.0 2.0
min. min.
0.5
25.0 25.0
min. min.
0.6
LS LS
Working Voltage (WV); Temperature Coefficient; Capacitance Range (pF)
Dim.
(mm)
1K 2K 3K 6K
D LS Y5P Z5U Z5V Y5P Z5U Z5V Y5P Z5U Z5V Y5P Z5U Z5V
6.5 6.35 300~1000 1000~2000 2000 - - - - - - - - - - - - - - - - - - - - - - - - - - -
7 6.35 - - - - - - - - - 100~680 - - - 1000 100~300 - - - - - - - - - - - - - - -
8 6.35 - - - - - - - - - - - - - - - - - - 360~470 1000 - - - - - - - - - - - -
8.5 6.35 1200~1500 5000 5000 820~1000 10000 1200~1800 - - - - - - - - - - - - - - - - - -
9 6.35 - - - - - - - - - - - - - - - - - - 560~680 - - - - - - - - - - - - 1000
9.5 6.35 2000~2200 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10 6.35 - - - - - - - - - 1200~1500 - - - 2200~3300 820~1000 - - - - - - - - - 1000 1200~1500
11 6.35 2700~3300 - - - 10000 - - - 1200~2200 3600~4700 - - - - - - 2200~3300 - - - - - - - - -
12 6.35 - - - - - - - - - 1800~2200 - - - - - - 1200~1500 1200~2200 3600~3900 1000 1200~1500 1800~3300
13 6.35 - - - 10000 - - - - - - 2700~3300 - - - - - - - - - - - - - - - - - - - - -
14 9.52 3900 - - - - - - - - - - - - - - - 1800~2200 2700~3600 - - - - - - 1800~2200 - - -
15 9.52 5000 - - - 20000 3900~4700 3900~4700 - - - - - - - - - 4700~5600 - - - - - - - - -
16 9.52 - - - - - - - - - - - - - - - 10000 2700~3300 3900~4700 - - - 1200~1500 3300 4700~5600
17 9.52 - - - 20000 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
18 9.52 - - - - - - - - - - - - 10000 - - - - - - - - - - - - 1800~2200 4700 6800
19 9.52 10000 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
20 9.52 - - - - - - - - - - - - - - - - - - - - - 10000 - - - - - - 5600 8200
22 9.52 - - - - - - - - - - - - - - - - - - - - - - - - - - - 3300 6800 - - -
TYPICAL TEMPERATURE CHARACTERISTICS
Z5V Z5U
Y5P
+20 +20
+20
0 0
0
-20 -20
-20
-40 -40
-40
-60 -60
-80 -80
-20 0 20 40 60 80
Temperature (C)
-20 0 20 40 60 80 -20 0 20 40 60 80
Temperature (C) Temperature (C)
XICON PASSIVE COMPONENTS (800) 628-0544
XC-600138
Date Revised: 7/17/06
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
C/C (%)
C/C (%)
C/C (%)
