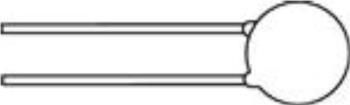

Class II Ceramic Disc Capacitors (RoHS Compliant) CDR Series
FEATURES
Large capacitance in small sizes
Non linear temperature coefficient of capacitance.
CHARACTERISTICS
Item Characteristics
Operating Temperature Range -25C ~ +85C
Capacitance Tolerance (min.) Within the tolerance at 1MHz, 1~3Vrms, 25C
Working Voltage (WVDC) 50WV, 100WV, or 500WV
Insulation Resistance 10,000M min. or 200MF, whichever is less
Test Voltage 2.5 x WVDC
Life Test At 2 x WVDC @85C for 1000 hours @ 85C, capacitors shall meet the following: the capacitance change for
-3
Y5P will be 10%; Z5U will be 20%; Z5V will be 30%: the dissipation factor for Y5P and Z5U will be 50x10 ;
-3
Z5V will be 75x10 .
Humidity Test
At exposure in the ambient temperature of 40C, and at 95% RH for 500 hours: the capacitance change for Y5P will
-3
be 10%; Z5U will be 20%; Z5V will be 30%: the dissipation factor for Y5P and Z5U will be 50x10 ; Z5V will be
-3
75x10 .
PART NUMBERING SYSTEM
1st 2nd #
digit digit 's
1 4 0 5 0 P 2 - 1 0 1 K - R C
Series Voltage Temp. Lead Capacitance (pF) Tolerance Suffix
Actual Value Coeff. Space (RoHSCompliant)
Temp. Coeff. Code Lead Space Code Tolerance Code Tolerance Code
Y5P P 2.5mm 2 0.25pF C 20% M
Z5U Z 5.0mm 5 5% J 0.5pF D
Z5V Q 9.5mm 9 10% K +80/-20% Z
TEMPERATURE COEFFICIENT CHARACTERISTICS
Temperature Coefficient Y5P Z5U Z5V
Operating Temp. Range -25C ~ +85C +10C ~ +85C +10C ~ +85C
Capacitance Change 10% +20%, -55% +30%, -80%
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
XICON PASSIVE COMPONENTS (800) 628-0544
Date Revised: 5/30/12
XC-600140Class II Ceramic Disc Capacitors CDR Series
DIMENSIONS (mm), CAPACITANCE RANGES (pF)
Straight Formed
D max. 3.0 max. D max. 3 .0 max.
2.0 2.0
min. min.
0.5
25.0 25.0
min. min.
0.6
LS LS
Working Voltage (WV); Temperature Coefficient; Capacitance Range (pF)
Dimensions
50 and 100 500
D (mm) LS (mm) Y5P Z5U Z5V Y5P Z5U
5 2.5/5.0 200 ~ 2200 1000 ~ 5000 1000 ~ 10000 150 ~ 270 1000 ~ 2200
6 2.5/5.0 2700 ~ 3000 6800 ~ 8200 - - - 390 ~ 1200 3700 ~ 3900
7.5 2.5/5.0 3300 ~ 3900 10000 20000 ~ 22000 1500 ~ 2000 - - -
8.5 2.5/5.0 4700 ~ 5600 - - - - - - 2200 ~ 2700 4700 ~ 5000
9.5 5.0 6800 ~ 8200 - - - - - - 3000 ~ 3300 6800 ~ 8200
10.5 5.0 10000 20000 ~ 22000 - - - 3900 10000
15 9.5 - - - - - - 33000 ~ 100,000 - - - 22000
TYPICAL TEMPERATURE CHARACTERISTICS
Z5V Z5U
Y5P
+20 +20
+20
0 0
0
-20 -20
-20
-40 -40
-40
-60 -60
-80 -80
-20 0 60 80
-20 0 20 40 60 80 -20 0 20 40 60 80
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
XICON PASSIVE COMPONENTS (800) 628-0544
Date Revised: 5/30/12
XC-600140
C/C (%)
C/C (%)
C/C (%)
