X-On Electronics has gained recognition as a prominent supplier of TS-1002-AR05026 Tactile Switches across the USA, India, Europe, Australia, and various other global locations. TS-1002-AR05026 Tactile Switches are a product manufactured by XUNPU. We provide cost-effective solutions for Tactile Switches, ensuring timely deliveries around the world.

TS-1002-AR05026 XUNPU

Name: TS-1002-AR05026
Brand: XUNPU
SKU: TS1002AR05026_XUNPU
Availability: InStock
Rating: 5 (11 reviews)

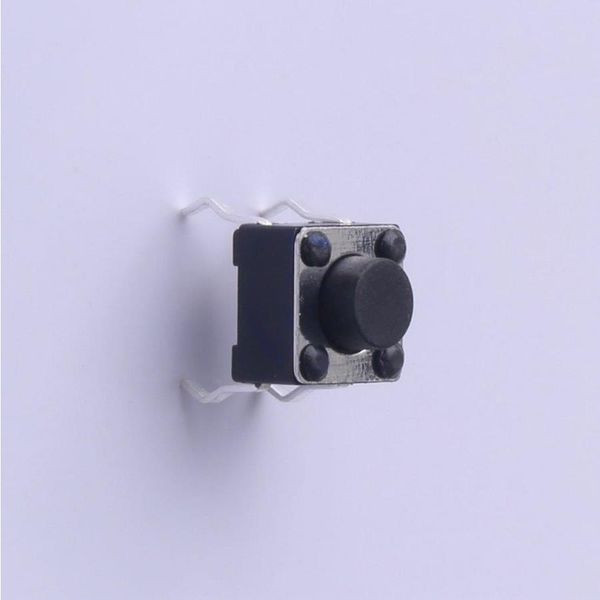

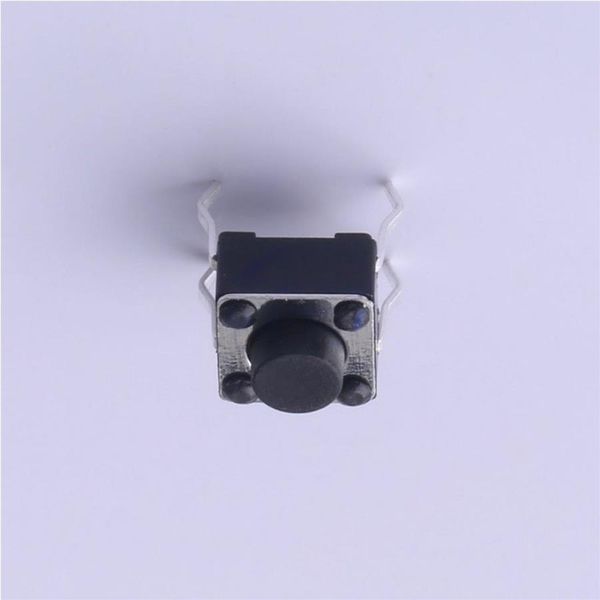

TS-1002-AR05026 electronic component of XUNPU

Images are for reference only
See Product Specifications

Part No.	TS-1002-AR05026
Manufacturer:	XUNPU
Category:	Tactile Switches
Description:	NO PCPin 50mA 6mm 100MΩ 100000 260gf@±50gf 12V 6mm -30℃~+80℃ 5mm Black Round Button Straight SPST Plugin Tactile Switches ROHS
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

20: USD 0.035 ea
Line Total: USD 0.7

Availability - 73
Ship by Fri. 17 Jan to Wed. 22 Jan

MOQ: 20 Multiples: 20
Pack Size: 20

TS-1002-AR05026 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

73

Ship by Fri. 17 Jan to Wed. 22 Jan

MOQ : 20
Multiples : 20

20 : USD 0.035
200 : USD 0.0282
1000 : USD 0.0219
2000 : USD 0.0196
10000 : USD 0.0177
20000 : USD 0.0167

Specifications

Manufacturer

XUNPU XUNPU

Product Category

Tactile Switches Tactile Switches

Operating Force

260gf@ ± 50gf 260gf@ ± 50gf

Voltage Rating DC

12 V 12 V

Mounting Style

Straight Straight

Category

Tactile Switches Tactile Switches

Rohs

y y

Strike Gundam

NO NO

Pin Style

PCPin PCPin

Contact Current

50 mA 50 mA

Switch Length

6 mm 6 mm

Insulation Resistance

100 MOhms 100 MOhms

Mechanical Life

100000 100000

Switch Width

6 mm 6 mm

Operating Temperature

- 30 C ~ + 80 C - 30 C ~ + 80 C

Switch Height

5 mm 5 mm

Actuator/Cap Color

Black Black

Actuator Style

Round Button Round Button

Circuit

SPST SPST

Notes:- Show Stocked Products With Similar Attributes.
