X-On Electronics has gained recognition as a prominent supplier of TS-1002S-AR06026 Tactile Switches across the USA, India, Europe, Australia, and various other global locations. TS-1002S-AR06026 Tactile Switches are a product manufactured by XUNPU. We provide cost-effective solutions for Tactile Switches, ensuring timely deliveries around the world.

TS-1002S-AR06026 XUNPU

Name: TS-1002S-AR06026
Brand: XUNPU
SKU: TS1002SAR06026_XUNPU
Availability: InStock
Rating: 5 (11 reviews)

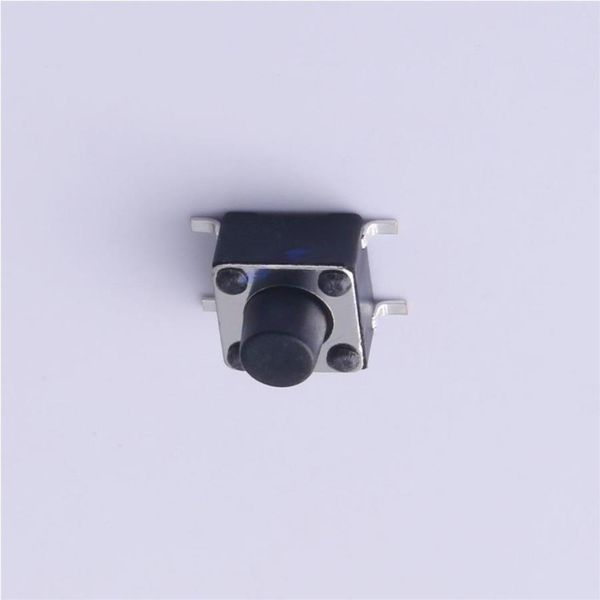

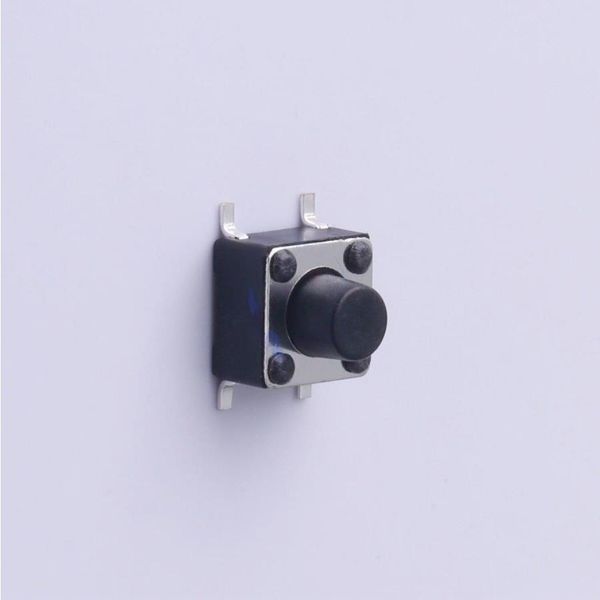

TS-1002S-AR06026 electronic component of XUNPU

Images are for reference only
See Product Specifications

Part No.	TS-1002S-AR06026
Manufacturer:	XUNPU
Category:	Tactile Switches
Description:	NO Gull Wing 50mA 6mm 100MΩ 100000 260gf@±50gf 12V 6mm -30℃~+80℃ 6mm Black Round Button Brick nogging SPST SMD Tactile Switches ROHS
Datasheet:	TS-1002S-AR06026 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

20: USD 0.0414 ea
Line Total: USD 0.83

Availability - 98
Ship by Fri. 03 Jan to Wed. 08 Jan

MOQ: 20 Multiples: 20
Pack Size: 20

TS-1002S-AR06026 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

98

Ship by Fri. 03 Jan to Wed. 08 Jan

MOQ : 20
Multiples : 20

20 : USD 0.0414
200 : USD 0.0337
1000 : USD 0.0266
2000 : USD 0.024
10000 : USD 0.0217
20000 : USD 0.0205

Specifications

Manufacturer
XUNPU XUNPU

Product Category
Tactile Switches Tactile Switches

Operating Force
260gf@ ± 50gf 260gf@ ± 50gf

Voltage Rating DC
12 V 12 V

Mounting Style
Brick nogging Brick nogging

Category
Tactile Switches Tactile Switches

Rohs
y y

Strike Gundam
NO NO

Pin Style
Gull Wing Gull Wing

Contact Current
50 mA 50 mA

Switch Length
6 mm 6 mm

Insulation Resistance
100 MOhms 100 MOhms

Mechanical Life
100000 100000

Switch Width
6 mm 6 mm

Operating Temperature
- 30 C ~ + 80 C - 30 C ~ + 80 C

Switch Height
6 mm 6 mm

Actuator/Cap Color
Black Black

Actuator Style
Round Button Round Button

Circuit
SPST SPST

Notes:- Show Stocked Products With Similar Attributes.
