X-On Electronics has gained recognition as a prominent supplier of TS-1090S-AR01826 Tactile Switches across the USA, India, Europe, Australia, and various other global locations. TS-1090S-AR01826 Tactile Switches are a product manufactured by XUNPU. We provide cost-effective solutions for Tactile Switches, ensuring timely deliveries around the world.

TS-1090S-AR01826 XUNPU

Name: TS-1090S-AR01826
Brand: XUNPU
SKU: TS1090SAR01826_XUNPU
Availability: InStock
Rating: 5 (11 reviews)

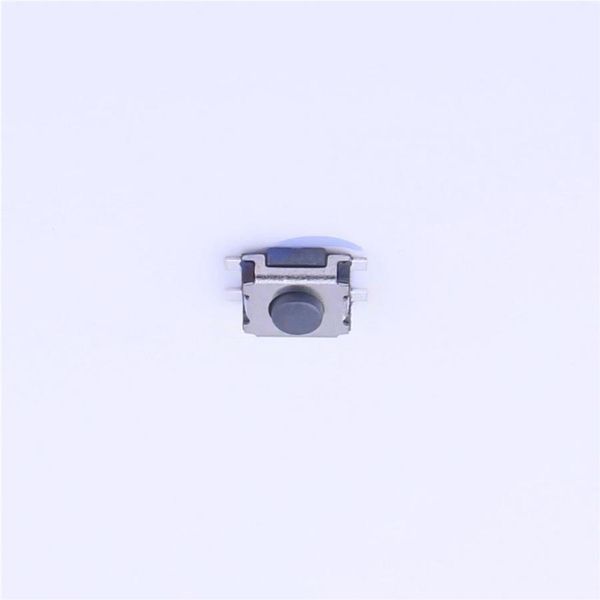

TS-1090S-AR01826 electronic component of XUNPU

Images are for reference only
See Product Specifications

Part No.	TS-1090S-AR01826
Manufacturer:	XUNPU
Category:	Tactile Switches
Description:	NO SMDSplicing 50mA 3.5mm 100MΩ 100000 260gf@±50gf 12V 3mm -30℃~+80℃ 1.8mm Black Round Button Brick nogging SPST SMD Tactile Switches ROHS
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

10: USD 0.0877 ea
Line Total: USD 0.88

Availability - 931
Ship by Thu. 27 Mar to Tue. 01 Apr

MOQ: 10 Multiples: 10
Pack Size: 10

TS-1090S-AR01826 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

931

Ship by Thu. 27 Mar to Tue. 01 Apr

MOQ : 10
Multiples : 10

10 : USD 0.0877
100 : USD 0.0705
300 : USD 0.0531
3000 : USD 0.0384
6000 : USD 0.0344
9000 : USD 0.0324

Specifications

Manufacturer

XUNPU XUNPU

Product Category

Tactile Switches Tactile Switches

Operating Force

260gf@ ± 50gf 260gf@ ± 50gf

Voltage Rating DC

12 V 12 V

Mounting Style

Brick nogging Brick nogging

Category

Tactile Switches Tactile Switches

Rohs

y y

Strike Gundam

NO NO

Pin Style

SMDSplicing SMDSplicing

Contact Current

50 mA 50 mA

Switch Length

3.5 mm 3.5 mm

Insulation Resistance

100 MOhms 100 MOhms

Mechanical Life

100000 100000

Switch Width

3 mm 3 mm

Operating Temperature

- 30 C ~ + 80 C - 30 C ~ + 80 C

Switch Height

1.8 mm 1.8 mm

Actuator/Cap Color

Black Black

Actuator Style

Round Button Round Button

Circuit

SPST SPST

Notes:- Show Stocked Products With Similar Attributes.
