TS-1095KD-A17B3-D2 Yuandi

Name: TS-1095KD-A17B3-D2
Brand: Yuandi
SKU: TS1095KDA17B3D2_Yuandi
Availability: InStock
Rating: 5 (11 reviews)

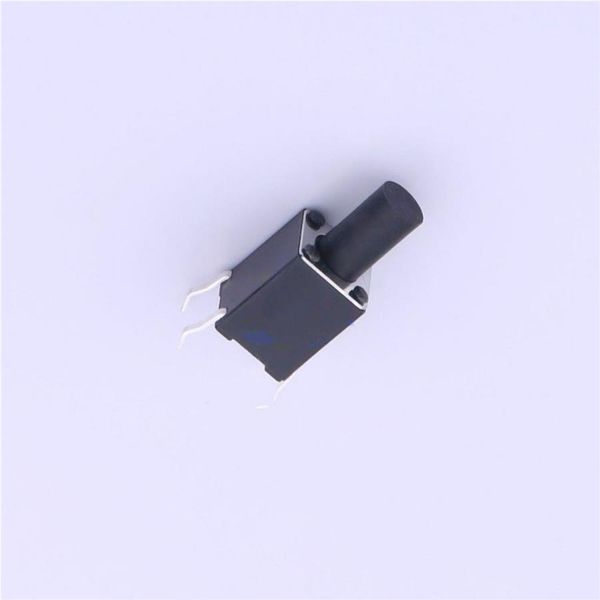

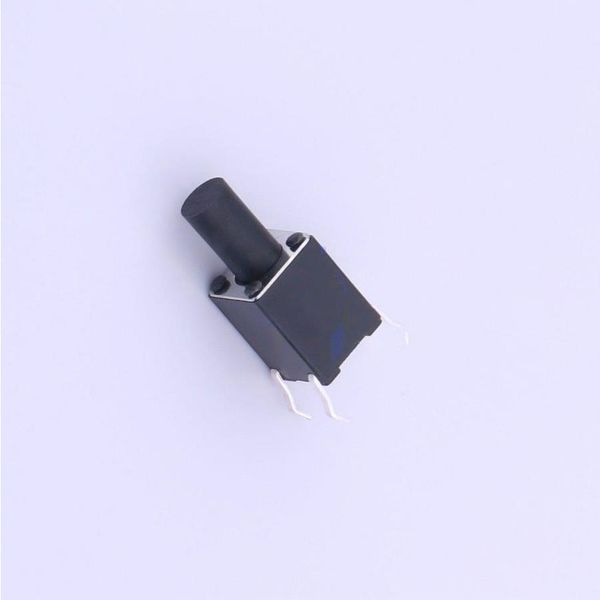

TS-1095KD-A17B3-D2 electronic component of Yuandi

Images are for reference only
See Product Specifications

Part No.	TS-1095KD-A17B3-D2
Manufacturer:	Yuandi
Category:	Tactile Switches
Description:	NO 6mm PCPin 14mm Black Round Button Straight SPST 6mm 250gf@±30gf Plugin Tactile Switches ROHS
Datasheet:	TS-1095KD-A17B3-D2 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.0924 ea
Line Total: USD 0.46

Availability - 3045
Ship by Thu. 09 Jan to Tue. 14 Jan

MOQ: 5 Multiples: 5
Pack Size: 5

TS-1095KD-A17B3-D2 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

3045

Ship by Thu. 09 Jan to Tue. 14 Jan

MOQ : 5
Multiples : 5

5 : USD 0.0924
50 : USD 0.0764
150 : USD 0.0684
500 : USD 0.057
2500 : USD 0.0521
5000 : USD 0.0497

Specifications

Manufacturer

Yuandi Yuandi

Product Category

Tactile Switches Tactile Switches

Operating Force

250gf@ ± 30gf 250gf@ ± 30gf

Mounting Style

Straight Straight

Category

Tactile Switches Tactile Switches

Rohs

y y

Strike Gundam

NO NO

Switch Width

6 mm 6 mm

Pin Style

PCPin PCPin

Switch Height

14 mm 14 mm

Actuator/Cap Color

Black Black

Actuator Style

Round Button Round Button

Circuit

SPST SPST

Switch Length

6 mm 6 mm

Notes:- Show Stocked Products With Similar Attributes.
