X-On Electronics has gained recognition as a prominent supplier of TS-1095PD-A135B2-D2 Tactile Switches across the USA, India, Europe, Australia, and various other global locations. TS-1095PD-A135B2-D2 Tactile Switches are a product manufactured by Yuandi. We provide cost-effective solutions for Tactile Switches, ensuring timely deliveries around the world.

TS-1095PD-A135B2-D2 Yuandi

Name: TS-1095PD-A135B2-D2
Brand: Yuandi
SKU: TS1095PDA135B2D2_Yuandi
Availability: InStock
Rating: 5 (11 reviews)

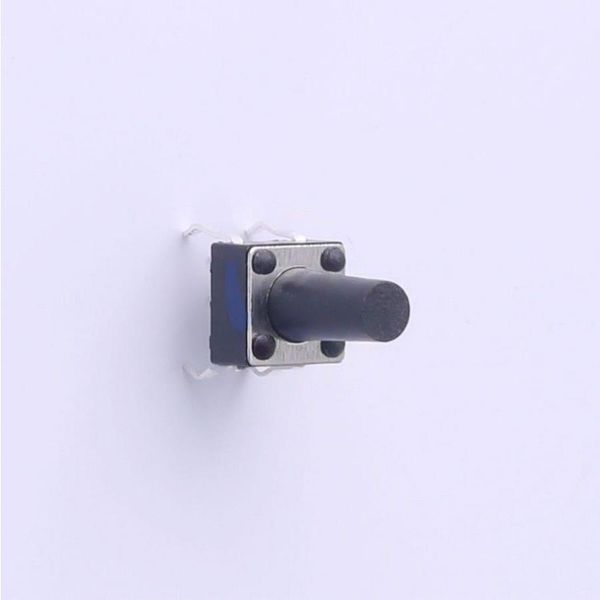

TS-1095PD-A135B2-D2 electronic component of Yuandi

Images are for reference only
See Product Specifications

Part No.	TS-1095PD-A135B2-D2
Manufacturer:	Yuandi
Category:	Tactile Switches
Description:	NO 6mm PCPin 10.5mm Black Round Button Straight SPST 6mm 180gf@±30gf Plugin Tactile Switches ROHS
Datasheet:	TS-1095PD-A135B2-D2 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

10: USD 0.0672 ea
Line Total: USD 0.67

Availability - 983
Ship by Wed. 08 Jan to Mon. 13 Jan

MOQ: 10 Multiples: 10
Pack Size: 10

TS-1095PD-A135B2-D2 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

983

Ship by Wed. 08 Jan to Mon. 13 Jan

MOQ : 10
Multiples : 10

10 : USD 0.0672
100 : USD 0.055
300 : USD 0.0487
1000 : USD 0.0442
5000 : USD 0.0405
10000 : USD 0.0386

Specifications

Manufacturer
Yuandi Yuandi

Product Category
Tactile Switches Tactile Switches

Operating Force
180gf@ ± 30gf 180gf@ ± 30gf

Mounting Style
Straight Straight

Category
Tactile Switches Tactile Switches

Rohs
y y

Strike Gundam
NO NO

Switch Width
6 mm 6 mm

Pin Style
PCPin PCPin

Switch Height
10.5 mm 10.5 mm

Actuator/Cap Color
Black Black

Actuator Style
Round Button Round Button

Circuit
SPST SPST

Switch Length
6 mm 6 mm

Notes:- Show Stocked Products With Similar Attributes.
