AZ9371T-1A-18D Zettler

Name: AZ9371T-1A-18D
Brand: Zettler
SKU: AZ9371T1A18D_Zettler
Availability: InStock
Rating: 5 (11 reviews)

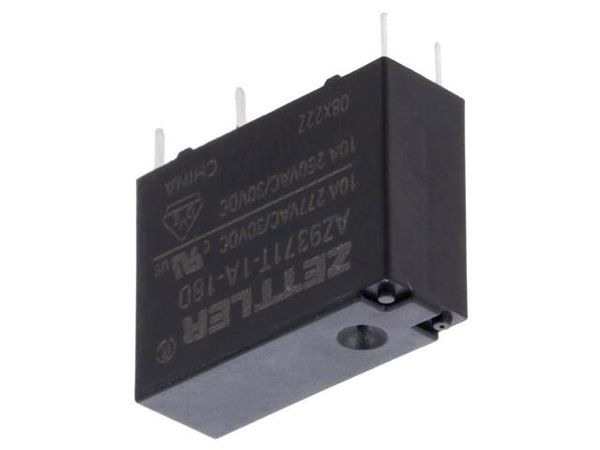

AZ9371T-1A-18D electronic component of Zettler

Images are for reference only
See Product Specifications

Part No.	AZ9371T-1A-18D
Manufacturer:	Zettler
Category:	General Purpose Relays
Description:	Relay: electromagnetic; SPST-NO; Ucoil:18VDC; 10A/277VAC; 10A
Datasheet:	AZ9371T-1A-18D Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 1.162 ea
Line Total: USD 1.16

Availability - 32
Ship by Wed. 01 Jan to Fri. 03 Jan

MOQ: 1 Multiples: 1
Pack Size: 1

AZ9371T-1A-18D More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

32

Ship by Wed. 01 Jan to Fri. 03 Jan

MOQ : 1
Multiples : 1

1 : USD 1.162
5 : USD 0.994
22 : USD 0.798
59 : USD 0.756

Specifications

Manufacturer

Zettler Zettler

Product Category

General Purpose Relays General Purpose Relays

Product

Electromagnetic Electromagnetic

Type

Miniature Miniature

Coil Voltage

18 VDC 18 VDC

Contact Form

SPST - NO SPST - NO

Switching Voltage

Max . 277 VAC , Max . 30 VDC Max . 277 VAC , Max . 30 VDC

Coil Resistance

1.62 kOhms hms 1.62 kOhms hms

Series

AZ9371 AZ9371

Power Consumption

113 mW 113 mW

Mounting Type

PCB PCB

Contact Current Max.

10 A 10 A

Contact Resistance

100 mOhms 100 mOhms

Ac Contacts Rating @R

10A / 277V AC 10A / 277V AC

Dc Contacts Rating @R

10A / 30V DC 10A / 30V DC

Terminal Pitch

7Mm 7Mm

Body Dimensions

20.5X7.2X15.3Mm 20.5X7.2X15.3Mm

Operating Temperature

- 40 To 105 C - 40 To 105 C

Notes:- Show Stocked Products With Similar Attributes.
