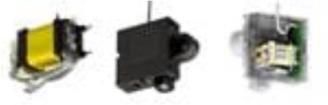

Wireless Momentary Rocker Switch AFIS Series Energy Harvesting Description The AFIS wireless momentary rocker switch provides data transfer via RF technology, eliminating the need for complex wire assemblies and increasing flexibility for use. The required energy is generated by mechanical actuation of the switch, eliminating the need for batteries. Flexible pairing allows the operation of several switches with one receiver and vice-versa, and the switch Unique ID provides clear identification while operating several switches at once. Up to three telegrams are sent per actuation, with pseudo-random timing to assure robust data transmission. A compatible receiver is available. Features Typical Applications Small size, with high energy efficiency Building Automation 868 MHz and 915 MHz frequency bands allow global use within Industrial Automation different applications Smart Home Long mechanical life Lighting Technical Specifications Operating Temperature -40 C to 85 C (-40 F to 185 F) Mechanical Life Tested for up to 100,000 operations Frequency Bands 868 MHz or 915 MHz RF Distance (open area) Up to 300 m (984) RF Distance (buildings) Up to 30 m (98) Operating Force 8 N max Operating Speed 0.05 to 0.25 m/s Ingress Protection IP40 Products Part Number Description AFIS-1003 868 MHz AFIS-5003 915 MHz Generator Specifications Operating Temperature -40 C to 85 C (-40 F to 185 F) Mechanical Life Up to 1,000,000 operations Operating Force 13 N max Energy Generated 0.33 mWs actuating and releasing Switch Dimensions on Reverse www.cherryswitches.com Page 1 of 2, Last updated 2015-08-04, Specifications subject to change without notice. Dimensions mm (inches) www.cherryswitches.com Page 2 of 2, Last updated 2015-08-04, Specifications subject to change without notice.
