17" Panel PC with Intel Core2
PPC-177T Duo Processor
Features
Intel Core2 Duo processor up to 2.16 GHz
System memory up to 4 GB 667 MHz DDR2 SODIMM socket x 2
One PCIe Expansion Slot (PCI is available as an option)
One Mini PCI socket, One Mini PCIe socket
Built-in CF card interface (IDE interface for OS booting)
Dual Gigabit Ethernet ports supports LAN teaming
One RS-232/ GPIO (8 channels, TTL level); (by swapping pin header)
One RS-232/422/485; (supporting Auto-flow control, selecting by BIOS)
U
C L US
Introduction
The PPC-177T is an Intel Core 2 Duo based Panel PC with 17" color TFT LCD. It features multimedia devices, various connectors, and can be installed in virtually any application.
In addition, its user-friendly interface makes it a great host for information appliances. Four serial ports and two Gigabit Ethernet ports give the PPC-177T advanced networking
capabilities, and provide a great solution for versatile applications.
Specifications
CPU Supports mSocket 478 based Core 2 Duo up to 2.16 GHz
CPU FSB 533/667 MHz
Chipset 945GME + ICH7M
Disk Drive Housing Room for 1 x 2.5" SATA HDD
Dimensions (W x H x D) 442 x 362 x 111.5mm (17.4" x 14.25" x 4.39")
Weight 7.6 kg (16.74 lb)
Front Panel Protection IP65 compliant
HDD SATA HDD interface (2.5" HDD bay)
DVD+/-RW Drive Optional SATA 8X or above DVD+/-RW Drive, Optional optical drive bay
Processor System
Memory Supports up to 4 GB of 667 MHz DDR2 SODIMM system memory (socket x 2)
Network (LAN) 2 x Gigabit Ethernet ports, Wake on LAN, boot from LAN and LAN teaming supported
- 4 x COM ports: 2 x RS-232, 1 x RS-232/422/485, - 2 x Gigabit Ethernet ports
1 x RS-232/ GPIO (8 channels, TTL level)* - 1 x D-SUB VGA port
- 4 x USB 2.0 ports - 1 x PS/2 mouse and keyboard interface
I/O Ports
- Mic in/ Line out / Line in, 1W speaker
* RS-232/422/485 - selecting by BIOS and supporting Auto-flow control
RS-232/GPIO - by swapping pin header
Bus Expansion 1 x PCIe Expansion Slot (PCI is available as option), 1 x Mini PCI socket, 1 x Mini PCI-e socket
OS Support OS Support Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit (64 bit only for T7400)
Operating Temperature 0 ~ 50C (32 ~ 122F)
Relative Humidity 10 ~ 95% @ 40C non-condensing
Environmental Shock Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
Specifications Vibration Operating Random Vibration Test 5~500Hz, 1Grms, follows IEC 60068-2-64
EMC BSMI, CE, FCC Class B, CCC
Safety CB, CE, UL
Output Rating 150 W (max.)
Power
AC Model Input Voltage 100 ~ 240 V , 50 ~ 60 Hz, 2 ~ 4 A
AC
Supply
Output Voltage +3.3 V @ 4.5 A, +5 V @ 8.5 A, +12 V @ 7.0 A, +5 Vsb @ 1.5 A, -12 V @ 0.3 A
Display Type Color TFT LCD
Size (Diagonal) 17"
Max. Resolution 1280 x 1024
Max. Colors or Grayscales 16.7M
LCD Display Pixel Pitch (mm) 0.264 x 0.264
2
Luminance (cd/m ) 380
Contrast Ratio 800:1
Viewing Angle 80(left), 80(right), 80(up), 80(down)
LCD MTBF 50,000 hrs
Touchscreen (optional) Type 5-wire Analog Resistive (USB interface)
Online Download www.advantech.com/products
All product specifications are subject to change without notice Last updated : 28-Aug-2013PPC-177T
Dimensions Unit: mm
425.14
427
99.5 12 442
CUT-OUT Dim.
Ordering Information Feature Details
Part No. Description
Protection
PPC-177T-BAREE 17" Core 2 Duo Based Panel PC without T/S
PPC-177T-BARE-TE 17" Core 2 Duo Based Panel PC with Resistive T/S To meet the requirements of a public environment, the front panel PPC-177T complies with
PPC-155T STAND Stand kit for PPC-155/157/175/177 series the IP65 protection standard. Furthermore, the watchdog timer and power management
PPC-ARM-A03 PPC ARM VESA Standard features make the system secure and stable. The onboard hardware monitoring feature
PPC-174T-WL-MTE Wall mount kit for PPC series provides an automatic protection function, which prevents the CPU from becoming
PPC-175 RACK-MT Rack mount kit for PPC-175/177 series
overheated.

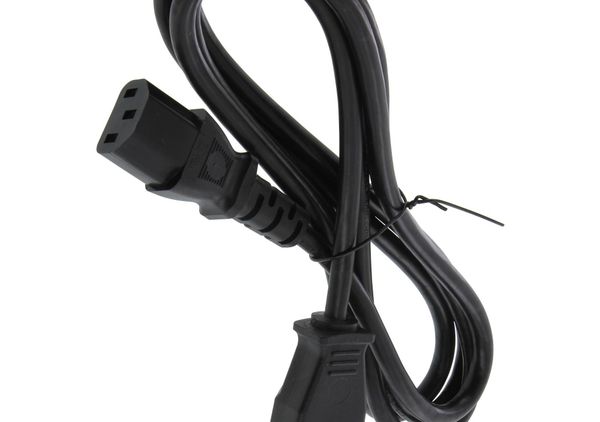

1702002605 Power cord 90D 220V EUROPEAN 250V/6A, 1.8M

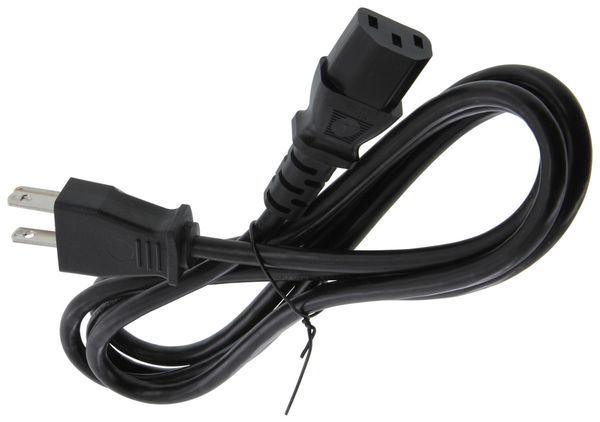

1702002600 Power cord UL/CSA (USA) 180D 125V/10A 1.83M Expansion
989K017700E Optical disc drive kit for PPC-177T (W/O ODD)
To extend functionality, the PPC-177T is designed with one PCI-e expansion Slot (PCI is
989K017702E DVD-RW (SATA) module for PPC-177T
available as option) and Four USB 2.0 (Univeral Serial Bus) ports. With these expansion
989K070601E PCI riser card for PPC-177T
capabilities, the PPC-177T not only functions as an HMI, but also as a computing center
802.11 b/g/n RT5390 1T1R Full Size Mini PCIe for
PPC-L158T-WLANE on which to build your applications.
PPC-L158/157/177 Series
2070011804 XPE WES2009 V4.3, 24 multi-language with SUSI Access
I/O Appearance
A J B C D E F
G H I
F: AC Inlet
A: Line in/Line out/Mic in
G: PCI Slot x 1
B: PS2 Mouse & Keyboard
H: 10/100/1000 Base-T Ethernet x 2
C: USB 2.0 x 4
I: RS-232 x 3 (including RS232/422/485 x 1, COM2)
D: VGA Port
J: RS-232/GPIO (by swapping pin header)
E: Power Switch
Multi-functional Panel PCs
345.14
362
347
