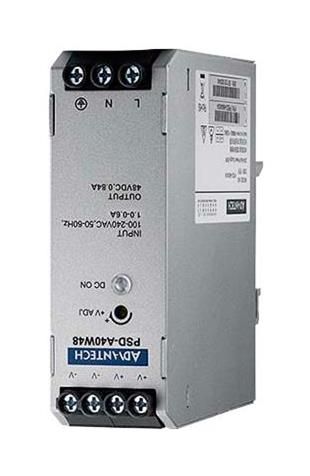

PSD-A40W48 Advantech

40 Watts Compact Size PSD-A40W Series DIN-Rail Power Supply Features Extra slim design with 40 watts output 3 High power density: 2.27 watts per inch Input range 85 ~ 264 VAC/ 110 ~ 375 VDC Power boost with 150% peak load Full protection with auto recovery function Full load output up to 60C Adjustable output RoHS COMPLIANT U L 2011/65/EU Specifications Model PSD-A40W12 PSD-A40W24 PSD-A40W48 Output Voltage 12VDC 24VDC 48VDC Output Voltage Adjustment Range 12V to 14V 22V to 27V 46V to 50V DC DC DC DC DC DC Rated Current 3.34A 1.67A 0.84A Peak Current 5.00A 2.50A 1.25A (Max Output Current, 3 seconds) Output Efficiency (typical) 88% 89% 89% Output Power 40 Watts Accuracy (%) 1% Max. Ripple & Noise (mVp-p) 120 mVp-p Line Regulation 1% Load Regulation 1% Hold-up Time 115V/60Hz: 16ms Minimum 230V/50Hz: 20ms. Minimum Input Voltage 85 ~ 264 V 110 ~ 375 V AC DC Input Frequency 47 ~ 63 Hz Input Input Current < 0.93 A 115V , < 0.40 A 230V AC AC Max. Inrush Current 40A 230VAC, cold start 25C and full load Leakage Current < 1 mA when power supply is connected to 240VAC/60Hz OVP (Over Voltage Protection) 16V max 35V max 55V max OCP 5.00A 2.50A 1.25A Protection (Output Peak Current Protection, 3~5 sec.) SCP (Short Circuit Protection) < 0.1 ohm OTP (Over Temperature Protection) 100 10% Operating Temperature -25 ~ 70C Power Derating Full load to 60C output power derated 2.5% per C Operating Humidity 95% RH, non-condensing Environment Storage Temperature -40 ~ 85 C Operating Altitude 5,000 m Shock Test (Non-Operating) IEC60068-2-27, 30G (300m/S) for a duration of 18ms Vibration Test (Non-Operating) IEC60068-2-6, 10Hz to 150Hz 50m/S (5G peak) 90 min per axis for all X, Y, Z direction Dielectric Strength AC input - DC output/FG: 1500 VAC for 1 minute Insulation Insulation Resistance AC input - DC output/FG DC output - FG: 50M min. Safety CB/UL/TUV/CCC IEC60950-1/GB4943.1 Case Cover / Chassis Metal chassis Input Connector 3 Pins (300V/ 20A) Output Connector 4 Pins (300V/ 20A) Terminal Type Screw terminal (screw torque: 5.5 lb. per inch) Mechnical Wire AWG22-16 Mounting Rail Standard TS35 DIN-Rail in accordance with EN60715 Cooling System Conventional Dimensions (W x H x D) 32 x 100 x 90.2 mm / 1.26 x 3.94 x 3.54 inch Weight 3055 g / 0.671 lb. MTBF (hours) 500,000 (base on SR-332) Issue 2 Reliability and Warranty Warranty 3 Years DIN-Rail Power Supply All product specifications are subject to change without notice. Last updated: 5-Oct-2017PSD-A40W Series Dimensions Unit: mm inch PSD-A40W24 INPUT 100-240VAC,50-60Hz, 1.0-0.6A OUTPUT 24VDC,1.67A 7.00 32 1.26 32 1.26 3.50 0.14 90.20 3.55 Derating Curve Ordering Information PSD-A40W series full load to 60C, with 2.5% derating per C Part Number Description PSD-A40W12 12 V / 40 Watts DIN-Rail Power Supply DC 100 PSD-A40W24 24 VDC/ 40 Watts DIN-Rail Power Supply 90 PSD-A40W48 48 V / 40 Watts DIN-Rail Power Supply DC 80 70 60 50 40 30 20 10 0 0 10 20 30 40 50 60 70 80 90 Temperature Online Download www.advantech.com/products % Max Load 5.00 100 3.94 100 3.94
