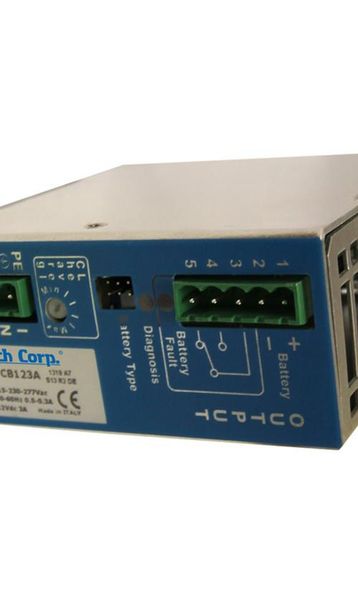

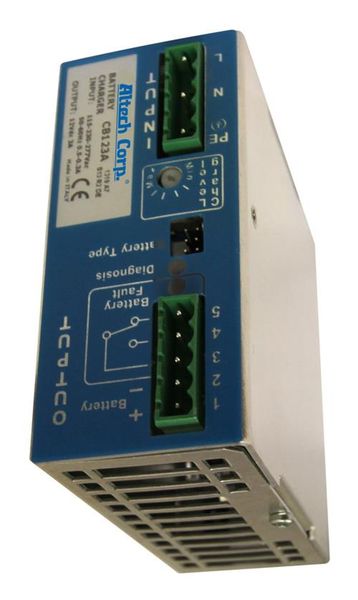

Features: Input: Single-phase 115 - 230 - 277 VAC CB123A Output: Battery charging 12 VDC 3 A Suited for the following battery types: Battery Charger Open Lead Acid, Sealed Lead Acid, lead Gel and Ni-Cd (option) Automatic diagnostic of battery status. Charging curve IUoUo, constant voltage and current Switching technology, output voltage 14.4 VDC Three charging levels: Boost, Trickle, Recovery. Protected against short circuit, inverted polarity, over load. Signal output (contact free) for fault battery state Protection degree IP20 - DIN rail mountable INPUT Cat. No. CB123A Input Data Nominal Input Voltage (2 x VAC) 115 ~ 230 ~ 277 VAC Input Voltage range (VAC) 90 ~ 305 VAC Inrush Current (Vn and In Load) I2t 11 A 5 msec. Frequency 47 ~ 63 Hz 6% Input Current 0.5 A ~ 115 VAC 0.3A ~ 230 VAC Internal Fuse 4 A BATTERY External Fuse (recommended) 10 A (MCB curve B) OUTPUT Battery Output (Battery Care) Boost charge (25C) (typ. at I ) 14.4 VDC n Max. time Bust Charge (tpy. at I ) 15 h n Min. time Bust Charge (tpy. at I ) 70 min. n Trickle charge (25C) (typ. at I ) 13.75 VDC n Recovery Charge 2 ~ 7 VDC Charging. Max I (I ) 3 A 5% batt n Adjustable charging current I (% In) 20 100 adj Efficiency (50% - I ) 81% n Quiescent Current 5 mA Charging Curve automatic: IUoUo 3 stage Detection of element in short circuit Yes Short-circuit protection Yes Over Load protection Yes Over Voltage Output protection Yes Jumper Configuration battery type 2.23 2,25 2,27 2,3 GENERAL DATA (V cell) Ni-Cd (optional) 1,411,5 (20 elem.) General Data Insulation voltage (In /Out) 3000 VAC Insulation voltage (In / PE) 1605 VAC Insulation voltage (Out / PE) 500 VAC Protection Class (EN/IEC 60529) IP20 Protection class I, with PE connected Reliability: MTBF IEC 61709 > 300.000 hours Pollution Degree Environment 2 Connection Terminal Blocks screw Type 2,5mm (24~14AWG) Dimensions (W-H-D) 45x100x100 mm (1.78 x 3.94 x 3.94 in.) Weight 0.30 Kg approx. (0.65 lbs.) ENVIRONMENTENVIRONMENT Climate Data Ambient temperature (operation) -25 - +70C (-13~158F) De Rating Ta > 50C -2.5%(In) / C Ambient temperature Storage -40 +85C (-40~185F) Humidity at 25C no condensation 95% to 25C Cooling Auto Convention SAFETY & EMC Norms and Certifications Conforming to: IEC/EN 60335-2-29,EN60950/UL1950, Electrical safety, 89/336/EEC, EMC Directive, 2006/95/EC (Low Voltage), DIN41773 (Charging cycle), Emission:IEC 61000-6-4,Immunity: IEC 61000-6-2.CE OTHERS Signal Output (free switch contact) Main or Backup Power Yes Low Battery Yes Fault Battery Yes Type of Signal Output Contact Max. current can be switched (EN60947.4.1): Max. DC1: 30 VDC 1 A AC1: 60 VAC 1A Resistive load Min.1mA at 5 VDC Min load For the latest on Altech Power Supply specifications please visit www.altechcorp.com/power. 172CB123A Battery Charger Wiring Terminals and Jumper Settings Technical Features The CB series battery chargers are designed with advanced multi- Jumper for stage battery charging method, completely automatic and suited O to meet the most advanced requirements of battery Battery Type Selection U manufacturers. The Battery Care concept is base on algorithms 1 Open T that implement rapid and automatic charging, battery charge 2 Lead Acid P 3 optimization during time, flat batteries recovery and real time U diagnostic during installation and operation. The Real Time 1 Sealed Diagnosis T Autodiagnostic system, monitoring battery faults such as, 2 Lead Acid (1) 3 elements in short circuit, accidental reverse polarity connection, disconnection of the battery, they can easily be detected and 1 Sealed 2 removed by help of Blink Code of Diagnosis Led during the Lead Acid (2) 3 installation and after sell. Each device is suited for all battery I 1 types, by means of jumpers it is possible setting predefined curves N 2 Gel for Open Lead Acid, Sealed Lead Acid, Gel, Ni-Cd(option). They are 3 P N programmed for two charging levels, boost and trickle. A rugged U Optional: Ni/Cd casing with bracket for DIN rail mounting provide IP20 protection L T degree. They are extremely compact and cost-effective. Wiring Diagram Charging Automatic multi-stage charging and real time diagnostic allow fast recharge and recovery of deep discharged batteries, adding Battery value and reliability to the system hosting. Type of charging is In VAC Voltages and current stabilized IUoUo. The state of charging battery and Autodiagnosis of the systems are identified by a Mains or Backup flashing code on a Diagnosis LED and Fault Battery LED: Battery Low or Battery Replacement State Diagnosis LED Battery Fault LED Charging Trickle 1 Blink/sec OFF Type Boost 2 Blink/sec OFF Recovery 5 Blink/sec OFF Auto Reverse polarity 1 Blink ON diagnosis Battery No connect 2 Blink ON Element in Short C. 3 Blink ON Replace Battery 5 Blink ON CB Charging Diagram Voltage Current Recovery Charge Fast / Boost Charge Tickle / Float Charge Altech Corp. 35 Royal Road Flemington, NJ 08822-6000 Phone (908)806-9400 FAX (908)806-9490 173 Voltage / Current
