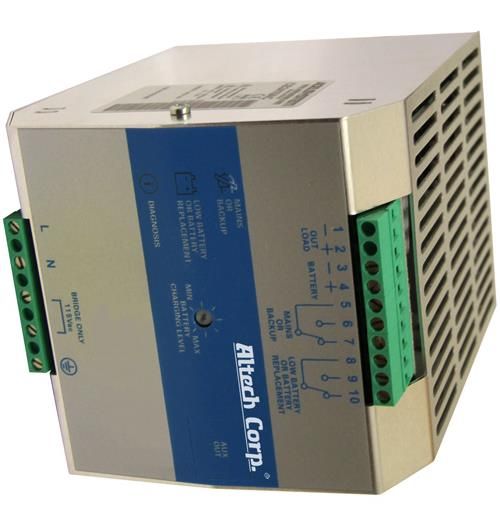

Features: Input: Single-phase 115 - 230 - 277 VAC CB2410A Output: Battery charging 24 VDC 10 A Suited for the following battery types: Battery Charger Open Lead Acid, Sealed Lead Acid, lead Gel and Ni-Cd (option) Automatic diagnostic of battery status. Charging curve IUoUo, constant voltage and current Switching technology, output voltage 28.8 VDC Three charging levels: Boost, Trickle, Recovery. Protected against short circuit, inverted polarity, over load. Signal output (contact free) for fault battery state Protection degree IP20 - DIN rail mountable Cat. No. CB2410A INPUT Input Data Nominal Input Voltage (2 x VAC) 115 / 230 ~ 277 VAC Input Voltage range (VAC) 90 ~ 135 / 180 ~ 305 VAC Inrush Current (Vn and In Load) It 16 A 5 msec. Frequency 47 ~ 63 Hz 6% Input Current 3.3 A ~ 115 VAC 2.2 A ~ 230 VAC Internal Fuse 6.3 A BATTERY External Fuse (recommended) 16 A (MCB curve B) OUTPUT Battery Output (Battery Care) Boost charge (25C) (typ. at I ) 28.8 VDC n Max. time Bust Charge (tpy. at I ) 15 h n Min. time Bust Charge (tpy. at I ) 1 min. n Trickle charge (25C) (typ. at I ) 27.5 VDC n Recovery Charge 2 ~ 18 VDC Charging. Max I (I ) 10 A 5% batt n Efficiency (50% - I ) 88% n Charging current limiting l 20 100 % l adj n Quiescent Current 5 mA Charging Curve automatic: IUoUo 3 stage Detection of element in short circuit Yes Short-circuit protection Yes Over Load protection Yes Over Voltage Output protection Yes Jumper Configuration battery type 2.23 2,25 2,27 2,3 (V cell) Ni-Cd (optional) 1,411,5 (20 elem.) GENERAL DATA General Data Insulation voltage (In /Out) 3000 VAC Insulation voltage (In / PE) 1605 VAC Insulation voltage (Out / PE) 500 VAC Protection Class (EN/IEC 60529) IP20 Protection class I, with PE connected Reliability: MTBF IEC 61709 > 300.000 hours Pollution Degree Environment 2 Connection Terminal Blocks screw Type 2,5mm(2414AWG) Dimensions (W-H-D) 100x115x135 mm (3.94 x 4.53 x 5.32 in) Weight 0.85 Kg approx. (1.87 lbs.) ENVIRONMENTENVIRONMENT Climate Data Ambient temperature (operation) -25 - +70C (-13~158F) De Rating Ta > 50C - 2.5%(In) / C Ambient temperature Storage -40 +85C (-40~185F) Humidity at 25C no condensation 95% to 25C Cooling Auto Convention SAFETY & EMC Norms and Certifications Conforming to: IEC/EN 60335-2-29,EN60950/UL1950, Electrical safety, 89/336/EEC, EMC Directive, 2006/95/EC (Low Voltage),DIN41773 (Charging cycle), Emission:IEC 61000-6-4,Immunity: IEC 61000-6-2.CE OTHERS Signal Output (free switch contact) Main or Backup Power Yes Low Battery Yes Fault Battery Yes Type of Signal Output Contact Max. current can be switched (EN60947.4.1): Max. DC1: 30 VDC 1 A AC1: 60 VAC 1A Resistive load Min.1mA at 5 VDC Min load For the latest on Altech Power Supply specifications please visit www.altechcorp.com/power. 184CB2410A Battery Charger Technical Features The CB series battery chargers are designed with advanced multi- Jumper for stage battery charging method, completely automatic and suited Battery Type Selection to meet the most advanced requirements of battery manufacturers. The Battery Care concept is base on algorithms Open that implement rapid and automatic charging, battery charge Lead 12 34 6 optimization during time, flat batteries recovery and real time Sealed diagnostic during installation and operation. The Real Time Lead Low 1 23 45 67 89 10 Autodiagnostic system, monitoring battery faults such as, 1 23 4 6 + + Sealed elements in short circuit, accidental reverse polarity connection, Lead High ADJ. MAINS LOW BATTERY disconnection of the battery, they can easily be detected and OR OR BATTERY 12 34 6 BACKUP REPLACEMENT removed by help of Blink Code of Diagnosis Led during the Gel MAINS installation and after sell. Each device is suited for all battery OR Battery BACKUP 12 34 6 types, by means of jumpers it is possible setting predefined curves LOW BATTERY Gel OR BATTERY for Open Lead Acid, Sealed Lead Acid, Gel, Ni-Cd(option). They are REPLACEMENT Battery (1) DIAGNOSIS programmed for two charging levels, boost and trickle. A rugged 1 23 4 6 BATTERY casing with bracket for DIN rail mounting provide IP20 protection NiCd - START BRIDGE ONLY 115VAC degree. They are extremely compact and cost-effective. NiMh (1) L N 12 34 6 Jumper for Functional Setting Battery Life 1 Jumper present: life test enabled. 1 Charging 2 Test On Jumper present: fast test enabled. 3 1 23 4 6 Jumper present: fast recovery charge Automatic multi-stage charging and real time diagnostic allow enabled only for size 3. Possibility to Fast Charge fast recharge and recovery of deep discharged batteries, adding recharge the battery also when the 2 Enable voltage is close to zero with the value and reliability to the system hosting. Type of charging is 12 34 6 maximum power of the device. Voltages and current stabilized IUoUo. The state of charging battery and Autodiagnosis of the systems are identified by a flashing code on a Diagnosis LED and Fault Battery LED: Wiring Diagram State Diagnosis LED Battery Fault LED Charging Trickle 1 Blink/sec OFF Battery In VAC Type Boost 2 Blink/sec OFF Recovery 5 Blink/sec OFF Auto Reverse polarity 1 Blink ON Mains or Backup Battery Low or diagnosis Battery No connect 2 Blink ON Battery Replacement Element in Short C. 3 Blink ON Replace Battery 5 Blink ON CB Charging Diagram Voltage Current Recovery Charge Fast / Boost Charge Tickle / Float Charge Altech Corp. 35 Royal Road Flemington, NJ 08822-6000 Phone (908)806-9400 FAX (908)806-9490 185 Voltage / Current
