L17H1120131 Amphenol

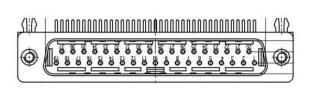

17H D-Sub connectors - Stamped and Formed Contacts DUAL PORT D-SUB CONNECTORS Amphenol s 17H dual port Specifications connectors are a state of the art Connectors according to MIL C24308 design. The front metal shell helps reduce EMI / RFI emissions. Materials and platings Designed to save PC board space, Shells Steel, tin plated Amphenols dual port provides two Insulator Glass-filled thermoplastic, UL 94V-0 I / O connectors in a minimal amount Pin contacts Brass, selected gold in mating area of board space. 2.54m (100 ) min. tin on termination area over 1.27m (50 ) min. nickel Socket contact Phosphor bronze, selected gold in mating area 2.54m (100 ) min. tin on termination area over 1.27m (50 ) min. nickel Rear insert Brass, 2.54m (100 ) min. nickel plated Boardlock Phosphor bronze, 2.54m (100 ) min. tin plated EconomicalEconomical Screwlock Brass, 2.54m (100 ) min. nickel plated dual portdual port Electrical Data Current rating 3A connectorsconnectors Voltage rating 250V AC/rms 60Hz Withstanding voltage 1000V AC/rms 60Hz for one minute Insulation resistance 1000M Contact resistance 20m max Climatic Data Industrial Operating temperature -55C to +125C Salt spray 24 hours Telecom Any industry standard I / O connections Mechanical Data Single contact insertion force 0.54kg (1.19lb) max Single contact withdrawal force 0.06kg (0.13lb) min Mating and unmating force Unit: kg ( lb) No. of Cts Mate (max) Unmate (min) 9 3.05 (6.74) 0.36 (0.79) 15 5.09 (11.24) 0.46 (1.01) 25 8.44 (18.66) 0.81 (1.8) 15 (Hi-den) 3.81 (8.42) 0.52 (1.14) Standard plating thicknesses gold flash 0.4m (15 ) gold 0.76 m (30 ) gold MAIN CHARACTERISTICS APPLICATIONS DESCRIPTION 17H / E13Shell size dimensions- standard and high density A0.38 (.015) B0.13 (.005) C0.13 (.005) D0.13 (.005) E0.05 (.002) H*** 3.92(.154) POSITION 1 2.84 (.112) 2.84 (.112) * spacing between ports (seehow to orde for dimensions) ** profile distance (seehow to orde for dimensions) *** Footprint options (seehow to orde for dimensions) H*** Standard Density (SD) High Density (HD) SD / SD = 8.08mm (.318 ) SD / HD = 5.08mm (.200 ) = 8.89mm (.350 ) X HD / HD = 8.89mm (.350 ) 10 = 5.08mm (.200 ) Recommended P.C.B. Layout 3.05 (.120) B0.13 (.005) E0.05 (.002) X 1.02 (.040) only for quad boardlock Shell Nb OF DIMENSIONS mm (inch) Size CONTACTS A B C PLUG D SOCKET E E 9/HD 15 30.84 (1.21) 24.99 (.984) 16.92 (.666) 16.24 (.639) 11.09 (.437) A 15/HD 26 39.24 (1.54) 33.32 (1.31) 24.7 (.972) 24.56 (.967) 19.39 (.763) B 25 53.04 (2.09) 47.04 (1.85) 38.96 (1.53) 38.38 (1.51) 33.24 (1.31) E 15 (Hi-den) 30.84 (1.21) 24.99 (.984) 16.92 (.666) 16.24 (.639) 10.31 (.406) C 37 69.32 (2.73) 63.50 (2.50) 55.42 (2.18) 54.76 (2.16) 49.86 (1.96) OVERALL DIMENSIONS 8.380.38 (.330015) 25.5 (1) 5.9 (.232) 2.84 (.112) 3.92 (.154) 1.27 (.050) 2.84 (.112) 8 7.90.13 (.311.015) (.315) 12.550.38 (.494015) 16.08 (.633) 6.1 (.240) 25.7 (1.01) G** F* 2.84 (.112) 8.08 (.318) 8 (.315) 3.30.13 (.130005)
