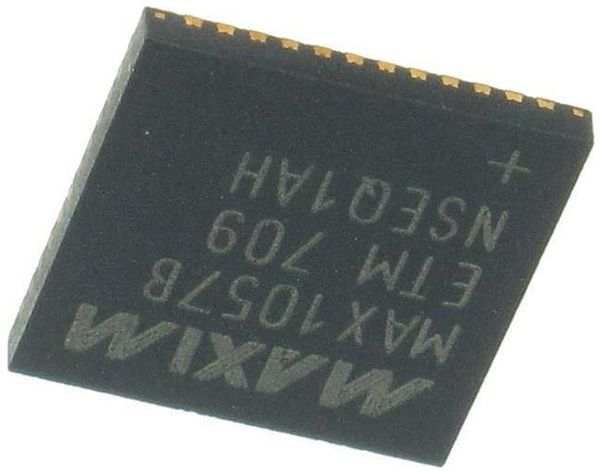

MAX1020/MAX1022/MAX1057/MAX1058 19-3280 Rev 5 2/12 10-Bit, Multichannel ADCs/DACs with FIFO, Temperature Sensing, and GPIO Ports General Description Features The MAX1020/MAX1022/MAX1057/MAX1058 integrate a 10-Bit, 225ksps ADC Analog Multiplexer with True-Differential multichannel, 10-bit, analog-to-digital converter (ADC) and an octal, 10-bit, digital-to-analog converter (DAC) in a Track/Hold (T/H) 16 Single-Ended Channels or 8 Differential single IC. These devices also include a temperature sen- sor and configurable general-purpose I/O ports (GPIOs) Channels (Unipolar or Bipolar) (MAX1057/MAX1058) with a 25MHz SPI-/QSPI-/MICROWIRE -compatible 12 Single-Ended Channels or 6 Differential serial interface. The ADC is available in 8/12/16 input- Channels (Unipolar or Bipolar) (MAX1022) channel versions. The octal DAC outputs settle within 8 Single-Ended Channels or 4 Differential 2.0s, and the ADC has a 225ksps conversion rate. Channels (Unipolar or Bipolar) (MAX1020) All devices include an internal reference (2.5V or 4.096V) Excellent Accuracy: 0.5 LSB INL, 0.5 LSB DNL providing a well-regulated, low-noise reference for both 10-Bit, Octal, 2s Settling DAC the ADC and DAC. Programmable reference modes for Ultra-Low Glitch Energy (4nVs) the ADC and the DAC allow the use of an internal refer- Power-Up Options from Zero Scale or Full Scale ence, an external reference, or a combination of both. Excellent Accuracy: 1 LSB INL Features such as an internal 1C accurate temperature sensor, FIFO, scan modes, programmable internal Internal Reference or External Single-Ended/ or external clock modes, data averaging, and Differential Reference AutoShutdown allow users to minimize both power con- Internal Reference Voltage 2.5V or 4.096V sumption and processor requirements. The low glitch Internal 1C Accurate Temperature Sensor energy (4nVs) and low digital feedthrough (0.5nVs) of On-Chip FIFO Capable of Storing 16 ADC the integrated octal DACs make these devices ideal for Conversion Results and One Temperature Result digital control of fast-response closed-loop systems. On-Chip Channel-Scan Mode and Internal The devices are guaranteed to operate with a supply volt- Data-Averaging Features age from +2.7V to +3.6V (MAX1057) and from +4.75V to +5.25V (MAX1020/MAX1022/MAX1058). The devices Analog Single-Supply Operation consume 2.5mA at 225ksps throughput, only 22A at +2.7V to +3.6V or +4.75V to +5.25V 1ksps throughput, and under 0.2A in the shutdown Digital Supply: 2.7V to V AVDD mode. The MAX1057/MAX1058 feature 12 GPIOs, while 25MHz, SPI/QSPI/MICROWIRE Serial Interface the MAX1020 offers four GPIOs that can be configured as inputs or outputs. AutoShutdown Between Conversions The MAX1057/MAX1058 are available in 48-pin thin QFN Low-Power ADC packages. The MAX1020/MAX1022 are available in 36- 2.5mA at 225ksps pin thin QFN packages. All devices are specified over the 22A at 1ksps -40C to +85C temperature range. 0.2A at Shutdown Low-Power DAC: 1.5mA Applications Evaluation Kit Available (Order MAX1258EVKIT) Controls for Optical Components Base-Station Control Loops QSPI is a trademark of Motorola, Inc. MICROWIRE is a registered trademark of National Semiconductor System Supervision and Control Corp. Data-Acquisition Systems AutoShutdown is a trademark of Maxim Integrated Products, Inc. Ordering Information/Selector Guide REF ANALOG RESOLUTION ADC DAC PART TEMP RANGE PIN-PACKAGE VOLTAGE SUPPLY GPIOs BITS** CHANNELS CHANNELS (V) VOLTAGE (V) MAX1020BETX -40C to +85C 36 TQFN-EP* 4.096 4.75 to 5.25 10 8 8 4 MAX1022BETX -40C to +85C 36 TQFN-EP* 4.096 4.75 to 5.25 10 12 8 0 MAX1057BETM -40C to +85C 48 TQFN-EP* 2.5 2.7 to 3.6 10 16 8 12 MAX1058BETM -40C to +85C 48 TQFN-EP* 4.096 4.75 to 5.25 10 16 8 12 *EP = Exposed pad. **Number of resolution bits refers to both DAC and ADC. Pin Configurations appear at end of data sheet. Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxims website at www.maxim-ic.com. EVALUATION KIT AVAILABLE10-Bit, Multichannel ADCs/DACs with FIFO, Temperature Sensing, and GPIO Ports ABSOLUTE MAXIMUM RATINGS AVDD to AGND ........................................................-0.3V to +6V Continuous Power Dissipation (multilayer board, T = +70C) A DGND to AGND.....................................................-0.3V to +0.3V 36-Pin TQFN (6mm x 6mm) DVDD to AVDD......................................................-3.0V to +0.3V (derate 35.7mW/C above +70C)......................2857.1mW Digital Inputs to DGND.............................................-0.3V to +6V 48-Pin TQFN (7mm x 7mm) Digital Outputs to DGND........................-0.3V to (V + 0.3V) (derate 40mW/C above +70C)............................3200mW DVDD Analog Inputs, Analog Outputs and REF Operating Temperature Range ...........................-40C to +85C to AGND .............................................-0.3V to (V + 0.3V) Storage Temperature Range .............................-60C to +150C AVDD Maximum Current into Any Pin (except AGND, DGND, AVDD, Junction Temperature......................................................+150C DVDD, and OUT )...........................................................50mA Lead Temperature (soldering, 10s) .................................+300C Maximum Current into OUT .............................................100mA Note: If the package power dissipation is not exceeded, one output at a time may be shorted to AVDD, DVDD, AGND, or DGND indefinitely Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. ELECTRICAL CHARACTERISTICS (V = V = 2.7V to 3.6V (MAX1057), external reference V = 2.5V (MAX1057), V = V = 4.75V to 5.25V AVDD DVDD REF AVDD DVDD (MAX1020/MAX1022/MAX1058), external reference V = 4.096V (MAX1020/MAX1022/MAX1058), f = 3.6MHz (50% duty cycle), REF CLK T = -40C to +85C, unless otherwise noted. Typical values are at V = V = 3V (MAX1057), V = V = 5V A AVDD DVDD AVDD DVDD (MAX1020/MAX1022/MAX1058), T = +25C. Outputs are unloaded, unless otherwise noted.) A PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS ADC DC ACCURACY (Note 1) Resolution 10 Bits Integral Nonlinearity INL 0.5 1.0 LSB Differential Nonlinearity DNL 0.5 1.0 LSB Offset Error 0.25 2.0 LSB Gain Error (Note 2) 0.025 2.0 LSB Gain Temperature Coefficient 1.4 ppm/C Channel-to-Channel Offset 0.1 LSB D YNA M IC SP EC IFI C A T ION S (1 0 k H z sin e - w a v e in p u t , V = 2 .5V ( M A X10 5 7 ) , V = 4 .09 6 V ( M A X10 2 0 /M A X10 2 2 /M A X10 5 8 ) , IN P-P IN P-P 2 2 5 k s p s , f = 3 .6M H z) SCLK Signal-to-Noise Plus Distortion SINAD 61 dB Total Harmonic Distortion THD -70 dBc (Up to the Fifth Harmonic) Spurious-Free Dynamic Range SFDR 66 dBc Intermodulation Distortion IMD f = 9.9kHz, f = 10.2kHz 72 dBc IN1 IN2 Full-Linear Bandwidth SINAD > 70dB 100 kHz Full-Power Bandwidth -3dB point 1 MHz CONVERSION RATE (Note 3) External reference 0.8 s C onversi on Power-Up Time t PU Internal reference (Note 4) 218 C l ock C ycles 2 MAX1020/MAX1022/MAX1057/MAX1058
