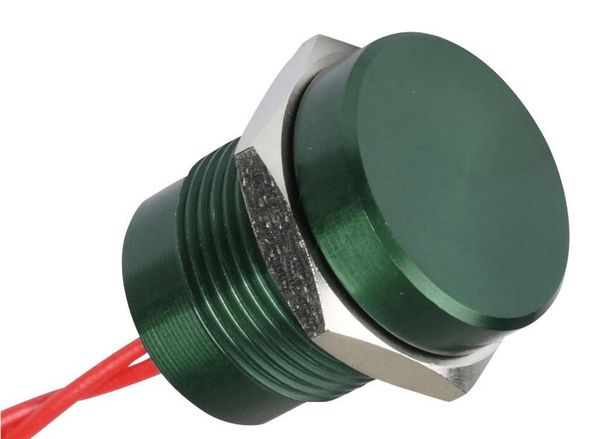

PBA series Piezo switches 16 mm DISTINCTIVE FEATURES Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181) Sealed to IP68 and IP69K (switches mounted on panel) Easy to clean metal surface Very long life expectancy Ring illumination ENVIRONMENTAL SPECIFICATIONS Sealing : IP68 per IEC 60529, IP69K per DIN 40050-9 (switches mounted on panel) Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 Operating temperature : -40 C to +75 C (-40 F to + 167 F) EMC compatibility according to EN 61058-1 for the whole range EMC compatibility according to EN 61000-4 & EN61000-6-2 for model 1A (code 002) ELECTRICAL SPECIFICATIONS Max. current/voltage rating with resistive load : - Function A : standard 200 mA 24 VAC/DC - option 1 A 24 VAC/DC - Function B : standard 100 mA 24 VAC/DC Switch resistance ON : 10 max. Switch resistance OFF : 5 M min. Life expectancy : 50 million cycles LED consumption : Illuminated dot 10 mA - Illuminated ring 20 mA (functions A-B-C) Power consumption for function 1 : non-illuminated 10 mA - illuminated 30 mA GENERAL SPECIFICATIONS Operating force : 2 to 6 N Torque : 2.5 Nm min. - 3 Nm max. The company reserves the right to change specifications without notice. 1 SW-PBA16-1808 PANEL SWITCHESPBA series Piezo switches 16 mm Note : to maintain the ESD performance, always add a ground washer when the panel is made of non-conductive material MATERIALS (PVC, polycarbonate). For part numbers, see Mounting accessories on the following pages. Case : aluminum, anodized or stainless steel 316L 2 Multi-wire leads section 0.22 mm length 300 mm, twisted 3 by pair Cable, length 300 mm, section depending on switch model PC terminals : bronze, tin plated APEM products may be recycled at end-of-life for the re-claiming of valuable metal components. CPBAET1-A SEALING SEALING IP68 SEALING IP69K - One-piece bushing - Epoxy sealed terminals - O-ring 3 3 1 2 CPBAET1-A Continuous immersion in water High pressure, high temperature wash down CPBAET2-A IP68 test conditions IP69K test conditions Continuous immersion in water . Pressure : 80 - 120 bars (1 m, 24 hours) . Distance : 15 cm . Temperature : 80 C 5 C (176 F 41 F) . Flow : 14 - 16 l/mn . Duration : 30 seconds per position PANEL CUT-OUT MODELS 16 (.630) 3 FICHIER: CPBAET-P7 ECHELLE: 0.7 indice A 16.20 (.637 DIA) le 09/01/09 1 2 2 CPBAET2-A CPBADEC1-A 19.20 (.756 DIA) CPBADEC2-A FICHIER: CPBAET-P7 ECHELLE: 0.7 indice A 22.20 22.20 (.874 DIA) (.874 DIA) le 09/01/09 2.80 (.110) CPBADEC3-A FICHIER: CPBADEC indice A ECHELLE: 0.7 le 10/12/08 PANEL SWITCHES 9.70 (.381) 1 m 1 m
