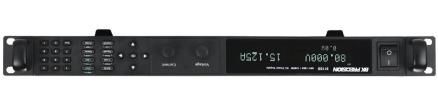

1200 W 1200 W 3000 W Data Sheet Multi-Range Programmable DC Power Supplies 9115/B Series Model 9117 discontinued, refer to model MR3K160120 as an alternative. USB RS232 RS485 GPIB (select models) 1200 W / 3000 W Multi-Range DC Power Supplies Any 9115/B Series model can replace several System integrators benefit from the standard USB Features and benefits supplies on your bench or in your rack. Unlike (USBTMC-compliant), RS232, RS485, and LAN n Multi-ranging operation (output up to conventional supplies with fixed output ratings, (9117 only) interfaces supporting SCPI max power rating within maximum voltage and these multi-range power supplies automatically commands. GPIB is available as an option for current rating) recalculate voltage and current limits for each select models. Alternatively, users can control n Compact, high density, 1U rackmount form setting, providing full output power in any the power supply, execute test sequences or log factor (2U for 9117) Volt/Amp combination within the rated voltage measurements using the provided PC software n High programming and readback resolution and current limits. application. n Adjustable voltage slope (rise and fall time) For benchtop applications, this series provides a The 9115/B-AT provides automotive power test n Sequence programming (internal list mode for numerical keypad for direct data entry along with waveforms compliant to DIN 40839 and ISO models 9115/B, 9115/B-AT, and 9116/B) convenient cursors and analog style knobs to 16750-2:2012(E) standards that can simulate n Save and recall up to 100 instrument settings quickly make incremental voltage or current common test conditions for electrical and changes. electronic devices installed in automobiles. n Standard USB (USBTMC-compliant), RS232, RS485, and LAN (9117 only) interfaces n GPIB optional for select models Multi-Range Operation n Analog interface with control and monitoring The multi-ranging feature of the 9115/B Series offers exceptional flexibility by providing any combination functions of the rated voltage and current up to the maximum output power of the supply. These wide ranges of voltage and current allow users to replace multiple supplies on a bench or system rack. n Master/Slave mode for parallel and series operation Voltage n Remote sense 150 V 9117 Model 9115/B* 9115/B-AT* 9116/B* (Discontinued) n Overvoltage/overpower/overtemperature protection, and key-lock function Max. Voltage 0 to 80 V 0 to 150 V 0 to 80 V Max. Current 0 to 60 A 0 to 30 A 0 to 120 A n Test functions compliant to automotive Max. Power 1200 W 3000 W standards (9115/B-AT only) 80 V *Model numbers with suffix B (911xB) do not include a n Softpanel for remote control, test sequence GPIB interface. See ordering information on page 6 generation and data logging for details. 40 V TM n LabVIEW drivers provided 25 V 20 V Current 8 A 15 A 30 A 37.5 A 60 A 120 A Technical data subject to change bkprecision.com B&K Precision Corp. 2021Multi-Range Programmable DC Power Supplies 9115/B Series Flexible operation Easy-to-use interface Programmable voltage rise/fall times Master/Slave operation The numeric keypad, rotary knobs, and cursors The power supply is capable of programming the More than one unit of the same power supply provide an easy way to set output levels quickly slope of the output voltage during changes model can be connected in parallel or series and precisely. With a push of a button, the between voltage settings by allowing users to set connection to increase the overall current or display can be conveniently toggled between set the rising and falling edge times of the voltage. voltage output respectively. Using the RS485 and measured voltage and current values. interface, the power supplies can operate in Additionally, the power supplies provide internal master/slave mode. In this mode, the master unit memory for storage of up to 100 different can control all other power supplies connected instrument settings that can be set and recalled in parallel or series. Additionally, the RS485 via both the front panel and remote interfaces. interface can be used for multi-unit control of up to 31 daisy chained units. Test sequence execution in list mode External analog control interface (models 9115/B, 9115/B-AT, and 9116/B only) The power supply output voltage and current The list mode feature lets users store, recall, and can be controlled from zero to full range by run program sequences in the power supplys either external DC voltage sources (0-5 V or internal memory. A total of 10 steps can be 0-10 V) or resistances (0-5 k or 0-10 k). The Parallel configuration configured for each sequence (up to 10). These DB25 analog control interface also provides a sequences can then be saved into a program source for monitoring the voltage and current configuration that can run one sequence after output. another, which allows for a maximum of 100 steps in one program configuration. Series configuration Application software PC software is provided for front panel emulation, generating and executing test sequences or logging measurement data without the need to write source code. Log voltage, current and power values as well as time stamp, CV/CC and output status. Save and load list files to/from the power supplys internal memory. Create an unlimited number of external list files to be executed from PC memory. Save and recall list files to/from the PC. 2 bkprecision.com
