735A1-008-1000 Belden

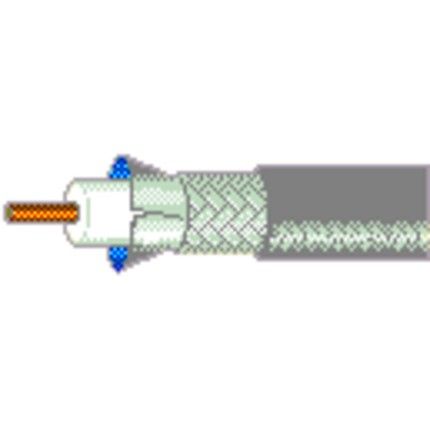

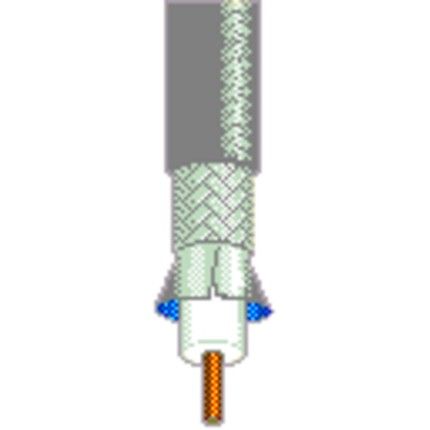

Product: 735A1 DS-3 and DS-4, 735* Series, 26-1 SPC Coax, CMR/CMG Product Description 26 AWG solid .016 (.40mm) silver-plated copper conductor(s), foam HDPE insulation, Beldfoil tinned copper braid shield (95% coverage), PVC jacket. Technical Specifications Physical Characteristics (Overall) Conductor AWG Stranding Material Nominal Diameter No. of Coax 26 Solid SCCS - Silvered Copper Covered Steel 0.016 in 1 Conductor Count: 1 Insulation Material Nominal Diameter PE - Polyethylene (Foam) 0.077 in Outer Shield Material Type Layer Material Material Trade Name Coverage % Tape 1 Alum / Poly Beldfoil 100% Braid 2 Tinned Copper (TC) 95% Outer Jacket Material Material Nominal Diameter PVC - Polyvinyl Chloride 0.129 in Electrical Characteristics Conductor DCR Nominal Conductor Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR DCR 41 Ohm/1000ft 41 Ohm/1000ft 5.3 Ohm/1000ft 5.3 Ohm/1000ft Capacitance Nom. Capacitance Conductor to Shield 17.7 pF/ft Inductance Nominal Inductance 0.19 H/ft Impedance Nominal Characteristic Impedance 75 Ohm Return Loss (RL) Frequency MHz Minimum Return (RL) 15-90 dB 30 dBDelay Nominal Delay Nominal Velocity of Propagation (VP) % 1.34 ns/ft 76% High Freq Frequency MHz Max. Insertion Loss (Attenuation) 1 MHz 0.6 dB/100ft 1.024 MHz 0.61 dB/100ft 4.224 MHz 1.1 dB/100ft 5 MHz 1.2 dB/100ft 10 MHz 1.7 dB/100ft 17.184 MHz 2.2 dB/100ft 22.368 MHz 2.5 dB/100ft 25.92 MHz 2.7 dB/100ft 44.736 MHz 3.6 dB/100ft 50 MHz 3.8 dB/100ft 69.632 MHz 4.5 dB/100ft 77.76 MHz 4.8 dB/100ft 100 MHz 5.5 dB/100ft 200 MHz 7.8 dB/100ft Voltage UL Voltage Rating 300 V RMS Temperature Range Operating Temp Range: -40C To +75C Mechanical Characteristics Bulk Cable Weight: 12 lbs/1000ft Max. Pull Tension: 25 lbs Min Bend Radius/Minor Axis: 1.25 in Standards NEC/(UL) Compliance: CMR CEC/C(UL) Compliance: CMG CPR Euroclass: Eca RG Type: Mini 59 Other Compliance: Telcordia Specification GR-139-CORE. Applicable Environmental and Other Programs Environmental Space: Indoor - Riser EU Directive 2000/53/EC (ELV): Yes EU Directive 2003/11/EC (BFR): Yes EU Directive 2011/65/EU (ROHS II): Yes EU Directive 2012/19/EU (WEEE): Yes EU Directive 2015/863/EU: Yes EU Directive Compliance: EU Directive 2003/11/EC (BFR) EU CE Mark: Yes EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01 MII Order 39 (China RoHS): Yes Suitability Suitability - Indoor: Yes Flammability, LS0H, Toxicity Testing UL Flammability: UL1666 Vertical Shaft CSA Flammability: FT4 IEC Flammability: IEC 60332-1-2
