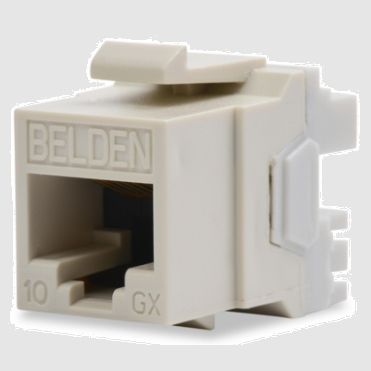

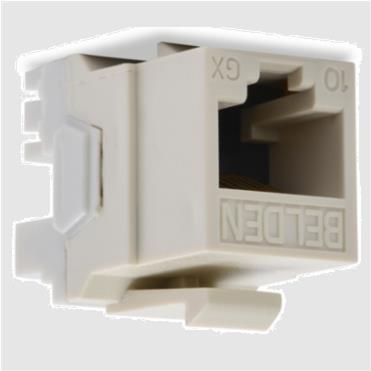

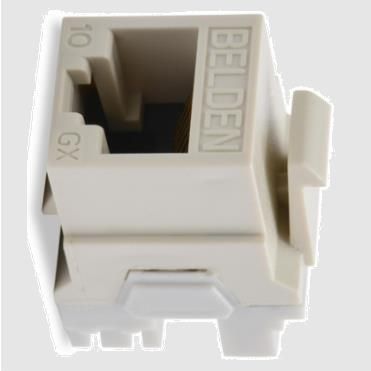

Product: 10GX KEYCONNECT JACKS 10GX Modular Jack, Category 6A, RJ45, KeyConnect Style Product Description CAT6A KeyConnect Jacks are available in several colors. Technical Specifications Product Overview Environmental Space: Indoor Suitable Applications: IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T Physical Characteristics (Overall) Height: 0.9 in Width: 0.675 in Depth: 1.17 in Wiring Scheme: T568A/B Packaging: Individually packaged in a plastic bag. Standard pack of 50 units. Weight: 0.016 lbs Connectors Materials Description Material Type Front Connection Flexible PCB with 50 inch Gold over Nickel Flexible PCB Rear Connection Phosphor Bronze with Tin Plating over Nickel IDC Connector Body Plastic - UL94V-0 Electrical Characteristics Dielectric Strength: 1,000V RMS 60 Hz for 1 minute Current Rating: 1.500 A Insulation Resistance: 500 M-Ohm Minimum Max Contact Resistance: 20 mOhm Termination Resistance: 2.5 mOhm Temperature Range Installation Temp Range: -10C to +60C Storage Temp Range: -40C to +70C Operating Temp Range: -10C to +60C Mechanical Characteristics Footprint/Type: KeyConnect Tool Compatibility: Belden 110 Connecting Tool Plug /Jack Compatibility: RJ45, RJ11 Termination Front Connection: Mated Connection Termination Front Connection Durability: 750 cycles Termination Rear Connection: IDC ConnectionTermination Rear Connection Durability: 20 terminations Cable/Connector Retention: 15 lbs. Connector/Hardware Retention: 20 lbs Plug/Connector Retention: 11.250 lbs Standards Data Category: Category 6A Telecommunications Standards: ISO/IEC 11801:2002 Amendment 2 Other Standards: FCC Part 68, Subpart F, IEC 60603-7 Third Party Performance Verification: ETL - Verified Category 6A Applicable Environmental and Other Programs EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (yyyy-mm-dd): 2006-07-01 MII Order 39 (China RoHS): EUP 50 Flammability, LS0H, Toxicity Testing Safety Listing: ACA, c(UL)us Listed Part Number Related Parts: Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels Variants Item Color Packaging Wiring Scheme AX102281 Almond Single Pack T568A/B AX102283 Black Single Pack T568A/B AX104156 Blue Single Pack T568A/B AX104158 Brown Single Pack T568A/B AX102282 Electric White Single Pack T568A/B AX102280 Gray Single Pack T568A/B AX104155 Green Single Pack T568A/B AX103073 Ivory Single Pack T568A/B AX104152 Orange Single Pack T568A/B AX104157 Purple Single Pack T568A/B AX102288 TIA Blue Single Pack T568A/B AX102290 TIA Brown Single Pack T568A/B AX102287 TIA Green Single Pack T568A/B AX102284 TIA Orange Single Pack T568A/B AX102289 TIA Purple Single Pack T568A/B AX102285 TIA Red Single Pack T568A/B AX102286 TIA Yellow Single Pack T568A/B AX104154 Yellow Single Pack T568A/B Product Notes Included Parts: 1 X-Bar Notes: Please see Installation Guide PX103771 History Update and Revision: Revision Number: 0.191 Revision Date: 07-11-2019 2019 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
