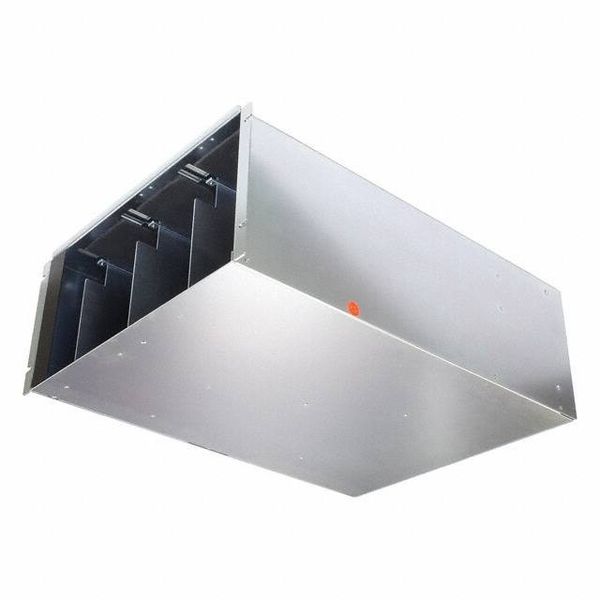

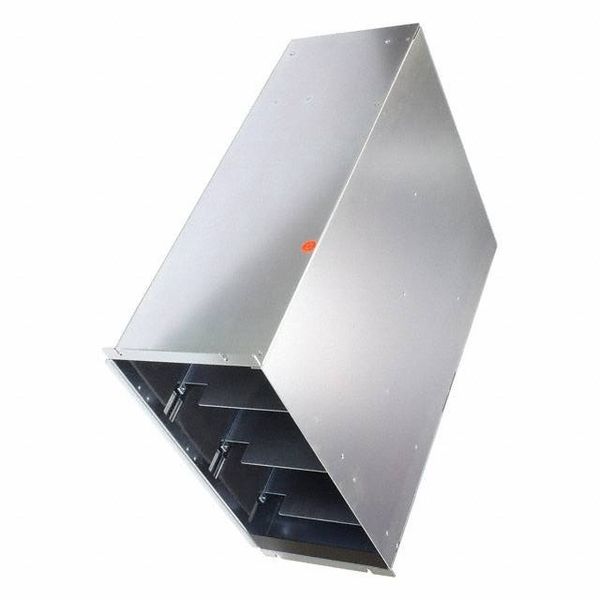

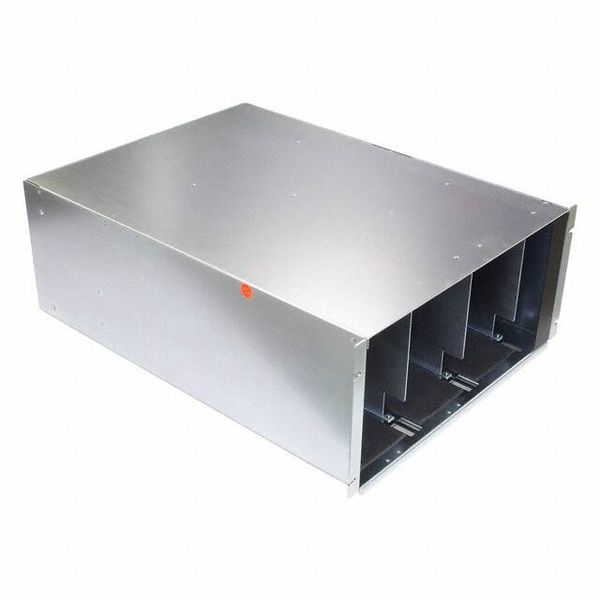

The FXP7000 Series of rack-mounted power systems provides AC front-end capability to automatic test equipment, telecom, data communications, and other distributed power designs. The hot-pluggable FXP supplies do not include an output isolation diode and may be paralleled up to 210 kW of total output power. These supplies provide excellent protection against input voltage transients. Access to interfaces for remote sensing, remote voltage adjust, current sharing, current monitoring, power supply status, standby voltage and inhibit, as well as power connections, is through a connector at the rear of the supply. The FXP has its fan, handles, voltage adjust, and indicator lights on the front panel and a single hot-plug connector on the rear. Airflow is from the front through the rear. Alarm, monitoring, and control signals are floating from the main output and can be Three-Phase AC Input referenced to the positive or negative output Suitable for 3U or 5U Height Mounting or sense line of the power supply. The output is floating with respect to the chassis and may Single-Wire Current Share or Droop Current Share be used as a positive or negative polarity supply. Remote Voltage Adjust and Current Monitoring The FXP7000 Series meets international safety Overtemperature, Overload and Overvoltage requirements and is CE Marked to the Low Protection Voltage Directive. This series operates on three-phase European voltages as well as (up LED Supply Status Indicators to) 480 VAC, delta or wye. Current Share Control for up to 30 Units Standard & Customized Rack Adaptors Available Front Panel Selectable-Input-Range RoHS Compliant North America +1.866.513.2839 Asia-Pacific +86.755.29885888 Europe, Middle East +353.61.225.977 tech.support psbel.com 2015 Bel Power Solutions, Inc. BCD.00275 AB FXP7000 Series INPUT VOLTAGE MAXIMUM OUTPUT ADJUSTMENT LINE LOAD INITIAL SETTING MODEL RANGE OUTPUT 1 VOLTAGE RANGE REGULATION REGULATION ACCURACY 3-PHASE CURRENT 180 to 264 VAC or FXP7000-48-SG 48 V 45.6 V to 50.4 V 145 A 0.15% 0.2% 47.90 V to 48.10 V 342 to 528 VAC PARAMETER DESCRIPTION/CONDITIONS MIN NOM MAX UNITS 3-phase delta low input range, nominal. 200 240 VAC Input Voltage - AC 3-phase delta high input range, nominal. 380 480 VAC Continuous deviation from the above nominals. -10 +10 % Input Current Per phase at full rated load. FXP7000 at 180 VAC: 30 Arms Internally limited. Vin = 264 VAC (one cycle). 25 C: 38 2 Inrush Surge Current Apk Vin = 528 VAC (one cycle). 25 C: 38 Input Frequency AC input. 47 63 Hz After last AC line peak at full power. 208 VAC: 17 Hold-up Time ms 400 VAC: 13 Operating Frequency Switching frequency, fixed. 100 kHz Power Factor 0.90 W/VA PARAMETER DESCRIPTION/CONDITIONS MIN NOM MAX UNITS Output Voltage An additional 1.0 Volt is provided to the output terminals to provide for Adjustment Range load lead losses. 45.6 48 50.4 V Output Power Continuous duty rating. 7000 Watts Output Current Continuous duty rating. 145 A Efficiency Full rated load (208 VAC). 88 91 % Load, Maximum deviation with 0 to 100% load change: With Remote Sense connected: 0.2 Regulation With Remote Sense not connected: 0.75 Utilizing Droop Current Share: 2.0 % Line, Under all specified operating conditions. 0.2 Measured at mating connector w/ 0.01 F + 10 F Tant. 20 MHz BW: 1 Ripple & Noise % p-p 2 100 MHz BW: Overshoot / Undershoot Output voltage overshoot/undershoot at turn-on. 0 % Minimum Loads Minimum loading required to maintain regulation. 0 A Max. recovery time, to within 1% of initial set point due to a 25% load Transient Response change, 1A/ s. Time: 800 s Deviation: 3.2 % Turn-On Delay Time required for initial output voltage stabilization after power-up. 3 s Turn-on Rise Time Time required for output voltage to rise from 10% to 90%. 100 ms 1 With Remote Sense connected. 2 The minimum time OFF between two turns ON of the unit needs to be > 30 seconds +1.866.513.2839 tech.support psbel.com 2015 Bel Power Solutions, Inc. BCD.00275 AB
