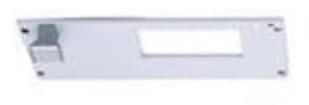

Accessories Front Panels and DIN-Racks Front Panels Description Front panels are available for 19 DIN-rack mounting of 3 U cassette type power supplies in Schroff system version (Intermas system on request) and may be attached to the converter by means of countersunk screws. An assembly kit, consisting of a front panel and a support bracket, enables arrangement of two standard cassettes with up to six output voltages in 6 U configuration. All front panels are of colorless anodized aluminum and delivered with one or 2 grey plastic handles of 3 TE for easy pull-out and 2 or 4 hand-press insertable plastic retainers with captive screws for fixing to the rack. Note: Custom specific front panels are available on request. Dimensions according to DIN 41494-1 (IEC 60297): Width: 1 TE =5.08 mm (0.2 ) Height: 1 U = 44.45 mm (1.75) Tolerances: 0.2 mm, unless otherwise specified. Note: In Europe, often HE instead of U is used. Schroff System for 3 U Rack Q-, P- Series Front Panels in 4, 5, or 6 TE 0.1 0.1 6.4 2.5 These front panels available in three versions and fit to all DC-DC converters of the Q, P and HP Series see fig. 1 for the mechanical details. Table 1: Front panel selection for P and Q Series T E X Case Conv. Panel Designation mm series type 413 4 20.0 Q01, Q05 Q, HP G04-Q01 HZZ00835 Q04 P G04-Q04 HZZ00840 5 25.1 Q01, Q05 Q, HP G05-Q01 HZZ00836 Q04 P G05-Q04 HZZ00841 6 30.2 Q01, Q05 Q, HP G06-Q01 HZZ00839 Q04 P G06-Q04 HZZ00842 8 40.3 Q01, Q05 Q, HP G08-Q01 HZZ00846 Q04 P G08-Q04 HZZ00850 X Note: For using several units nearby to each other, we advise to pack them not too densely, in order to assure good thermal management (see also relevant data sheet). Cut out for P Series only Delivery contents: Front panel, grey plastic handle, 3 countersunk screws, set of Fig. 1 2 plastic retainers with captive screws, and assembly Front panel for Q, P and HP Series converters instruction. MELCHER The Power Partners. BCD.00495 Rev AC, 02-Jun-2016 Page 1 of 5 128.4 122.4 0.2 13 20.6 50 9.5 0.1 0.1 9.2 104 12002aAccessories Front Panels and DIN-Racks Front Panels 8 TE for M and LH Series 0.1 0.1 18.4 2.5 This front panel fits to all 50 Watt DC-DC and AC-DC converters of the M Series (case M02) and LH Series (case H02). Table 2: Front panel selection for M and LH Series 12.2 T E mm Case Converter Panel type size series Designation 26 8 40.3 M02 M G08-M02 HZZ00802 H02 LH Delivery content: Front panel with grey plastic handle, 2 countersunk screws, set of 2 plastic retainers with captive screws, and assembly instruction. 0.1 0.1 0.1 31.5 2.5 4.4 40.3 (8 TE) cut out for option D 426 Fig. 3 Front panel for PSL Series Front Panels 12 TE for S, HR, HRL, ER, ERL, PSS Front Panels 16 TE for K, HRP, ERP, PSK These front panels fit to the converter series mentioned in the table below Table 4: Front panel selection for S, K, PSS, PSK, and all R Series converters Width x Case Converter Panel type 40.3 (8 TE) T E mm size series Designation 12 60.6 S01 PSS G12-S Fig. 2 HZZ00845 Front panel for M and LH Series S02 S S03 ERL, HRL Front Panels 8 TE for PSL Series 16 81.0 K01 PSK G16-K HZZ00831 This front panel fits to the Switching Regulators of the PSL K02 K Series (case size L04). K03 ERP, HRP Table 3: Front panel selection for PSL Series Delivery contents: T E mm Case Converter Panel type Front panel with grey plastic handle, two countersunk screws, size series Designation set of four plastic retainers with captive screws and assembly 8 40.3 L04 PSL G08-L instructions. HZZ00805 PSL with opt. D G08-L04-D HZZ00816 Delivery contents: Front panel with grey plastic handle, 2 countersunk screws, set of 2 plastic retainers with captive screws and assembly instructions. MELCHER The Power Partners. BCD.00495 Rev AC, 02-Jun-2016 Page 2 of 5 128.4 122.4 0.2 50 9 0.1 0.1 18.2 94.5 12003a 128.4 122.4 0.2 85 50.5 7 0.1 0.1 11.7 100 12004a
