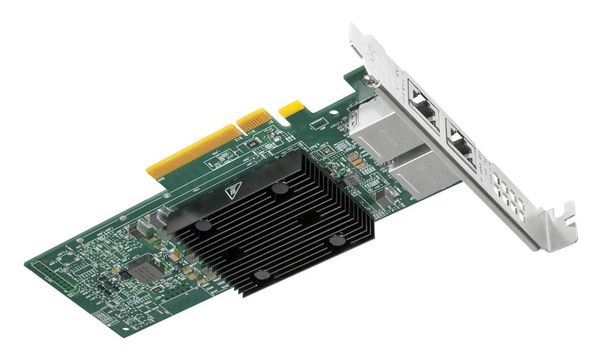

Data Sheet BCM957416A4160C Dual-Port 10GBASE-T Ethernet PCI Express 3.0 x8 Network Interface Card Network boot-PXE, UEFI. Overview iSCSI boot. The Broadcom BCM957416A4160C is a dual-port MSI and MSI-X 10GBASE-T, PCIe 3.0 x8 Network Interface Card that Conforms to the PCI Express Card Electromechanical supports a dual-port 10GBASE-T media interface that is Specification Rev. 3.0. fully compliant with the IEEE 802.3an standard. The card Applications uses the Broadcom BCM57416 Ethernet controller with the integrated dual-channel 10GBASE-T transceiver. Dual-Port 10GBASE-T Ethernet Network Interface Card for Data Centers or Cloud Computing. Features Dual-port 10-Gigabit Ethernet: 10GBASE-T IEEE 802.3an 1000BASE-T IEEE 802.3ab x8 PCI Express v3.0 compliant. SR-IOV with up to 128 VFs. Function Level Reset (FLR) support. TruFlow flow processing engine. Virtual Network TerminationVXLAN, NVGRE, Geneve, GRE encap/decap. vSwitch acceleration. Tunnel-aware stateless offloads. DCB support: PFC, ETS, QCN, DCBx. RDMA over Converged Ethernet (RoCE) SMBus 2.0. MCTP over SMBus. PCIe-based UART and KCS. Jumbo frames up to 9 KB. Advanced Congestion Avoidance. Multiqueue, NetQueue, and VMQ. IPv4 and IPv6 offloads. TCP, UDP, and IP checksum offloads. Large Send Offload (LSO). Large Receive Offload (LRO). TCP Segmentation Offload (TSO). Receive-side Scaling (RSS). Transmit-side Scaling (TSS). VLAN insertion/removal. Interrupt coalescing. Broadcom 957416A4160C-DS102 January 24, 2020BCM957416A4160C Data Sheet Dual-Port 10GBASE-T Ethernet PCI Express 3.0 x8 Network Interface Card Figure 1: BCM957416A4160C Network Interface Card Broadcom 957416A4160C-DS102 2
