G88104401 Carlo Gavazzi

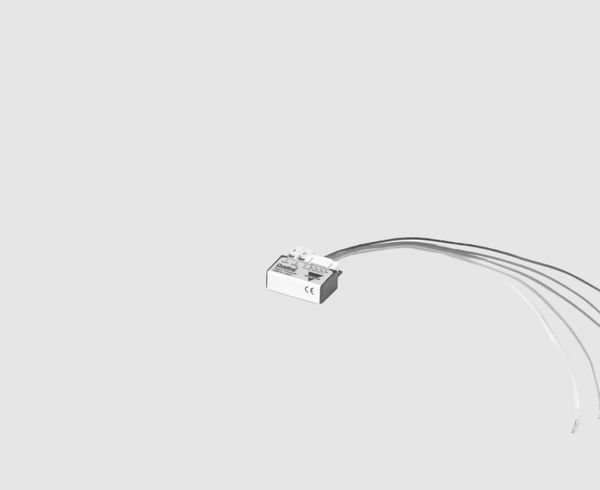

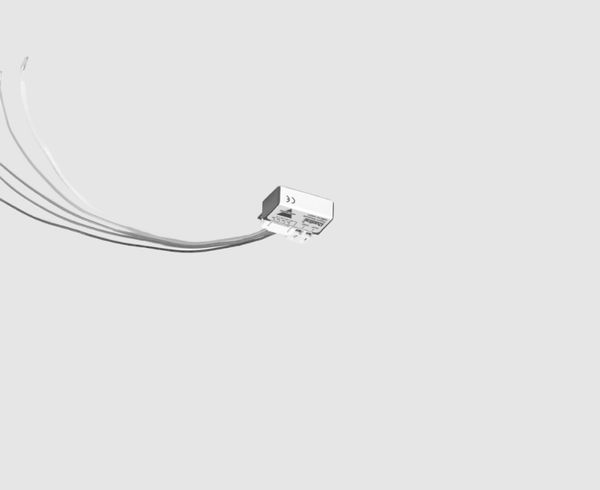

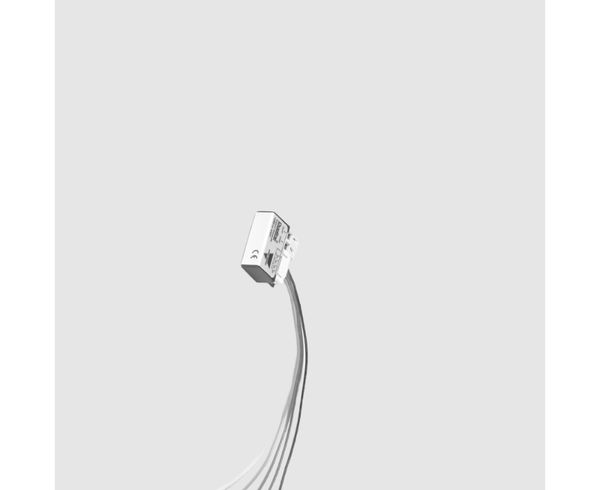

Input module Du line Type G 8810 4401 Fieldbus Installationbus Small-sized 4-channel monostable transmitter 4 contact inputs for pushbuttons Input pulse prolongation Compact housing Dupline supplied Address coding by GAP 1605 Product Description Ordering Key G 8810 4401 possible to fit it in a junction Dupline transmitter designed Type: Dupline box or directly behind a to be a part of the Dupline Housing switch/pushbutton input. Building Auto mation concept. Transmitter On the input, there is a built- It allows a flexible installation Number of Inputs in pulse-prolongation which concept in existing/traditional Input type ensures that even short input light switches. The compact pulses are transmitted. size of the module makes it Type Selection Mode of Operation Supply Ordering no. The input addresses may be with GAP-TPH-CAB cable + coded by means of the pro- pin-adaptor. By Dupline G8810 4401 gramming unit GAP 1605, Input Specifications Wire Connections Inputs 4 contacts Function Terminal/Cable colour Input current 50 A Bus D + Input current peak 20 mA D - Input voltage drop 1 V COM Black Input pulse prolongation min. 272 msec. Input 1 Brown Cable length 0.2 m Input 2 Red Input 3 Orange Dielectric voltage Input 4 Yellow Inputs - Dupline None Response time 1 pulse train Wiring Diagram Supply Specifications Yellow, Input 4 Orange, Input 3 Power Supply Supplied by Dupline Red, Input 2 Brown, Input 1 Rated operational current Black, COM Unactivated Typ. 1 mA 128 channels D - Activated (all inputs) Typ. 1.4 mA 128 channels D + General Specifications Environment Operating temperature 0 to +50C (+32 to +122F) Storage temperature -20 to +70C (-4 to + 158F) Humidity (non-condensing) 20 - 80% Housing Material Noryl GFN 1, Black Accessories Dimensions (h x w x d) 28 x 28 x 10 mm Programming cable Max size of wire in 2 to GAP 1605 GAP-TPH-CAB Dupline terminals 1.5 mm Specifications are subject to change without notice (26.06.2007) 1 Dupline is a registered trademark. A product of the CARLO GAVAZZI GroupX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for I/O Modules category: Click to view products by Carlo Gavazzi manufacturer: Other Similar products are found below : 70L-IDC5S 70L-OAC-L 70Z3289-4 G21960000700 G21960002700 G34960002700 G88104401 OACU C4SWOUT PB16H G34960001700 G3TA-OA101SZ-1 DC24 G77-S G78-16-E DA5 IDC5P FC6A-N16B1 6421 70MRCQ32-HL G3TAOD201SDC24 C200H-LK201-V1 G3TA-OA202SZ-US DC12 GT1-OD16 GT1-AD04CST GT1-DA04 B7AM-6BS 70GRCQ24-HS 6422 84110410 GT1- OD16MX G7VC-OC16-B7 70MRCK24-DIN 6202 6402 PI/NI-2D/24 FC6A-J2C1 FC6A-KC1C FC6A-R081 FC6A-J8CU1 GP32900003700 641-480-5022 PB16H 84145010 84110210 FRUSB1601 PCL-720+-BE FRRJ451601 AP24MX3DB25F ADAM-5053S- AE WISE-S614-A
