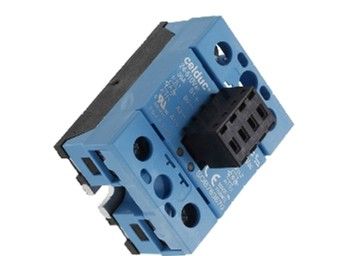

S/MON/SOB865660/C/18/07/2012 okpac page 1 / 9F/GB Relais statique biphas de puissance Dual Power Solid State Relay SOB865660 Relais statique biphas synchrone spcialement adapt la plupart des charges. Output : 24-600VAC 2x50A Dual Zero Cross Solid State Relay designed for most types of loads. Input : 8-30VDC 2(*) Sortie thyristors technologie TMS permettant une longue dure de vie: 24 600VAC 2x50A. 2 (*) Back to back thyristors on output with TMS technology with a long lifetime expectancy: 24 to 600VAC 2x50A. Entre double avec LED de visualisation de couleur verte sur chaque entre. 2 inputs with green LED visualization for each input. Diffrentes possibilits de connecteur de commande. Les relais sont livrs sans le connecteur de commande. Slectionner ce connecteur pages 5 7. Different possibilities for input connector. Input connector is not delivered with the SSR. Select input connector in pages 5 to 7. Protection IP20 par volets amovibles sur les bornes. Livr sans connecteur de commande Etiquette repre disponible en option. Delivered without input connector IP20 protection by removable flaps on terminals with optional labels. Construit en conformit aux normes IEC/EN60947-4-3 et EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL Designed in conformity with IEC/ EN60947-4-3 and EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL Avec tiquette de reprage en option FILE Nr. E69913 With optional labels Dimensions Application typique: Rsistance 24 kW (Catgorie AC-51) en 400VAC Typical application: 24 kW resistor (AC-51 load) on 400 VAC Le relais doit tre mont sur dissipateur thermique. CAD documents: www.celduc-relais.com/uk/plan3d.asp SSR must be mounted on heatsink 2 (*) TMS =Thermo Mechanical Stress Solution Proud to serve you celduc All technical caracteristics are subject to change without previous notice. Caractristiques sujettes modifications sans pravis. r e l a i s S/MON/SOB865660/C/18/07/2012 okpac page 2 / 9F/GB Input : Ic = f( Uc) Caractristiques d entre / Control characteristics (at 25C) par voie/ for each input DC Paramtre / Parameter Symbol Min Typ Max Unit Tension de commande / Control voltage Uc 8 30 V Courant de commande / Control current ( Uc ) Ic 4 24 mA Tension de non fonctionnement / Release voltage Uc off 2 V LED d entre / Input LED verte / green Tension Inverse / Reverse voltage Urv 32 V Immunit / Input immunity : EN61000-4-4 2kV Immunit / Input immunity : EN61000-4-5 2KV Caractristiques de sortie / Output characteristics (at 25C) Paramtre / Parameter Conditions Symbol Min Typ. Max Unit Plage de tension utilisation / Operating voltage range Ue 24 400 600 V rms Tension de crte / Peak voltage Up 1200 V Niveau de synchronisme / Zero cross level Usync 12 V Tension minimum amorage / Latching voltage Ie nom Ua 10 V Courant nominal / nominal current (AC-51) Heater Ie AC-51 50 50 A rms Courant nominal / nominal current (AC-53) Motor Ie AC-53 8.5 12 A rms Courant nominal / nominal current (other loads) Other loads Ie See page 5 Courant surcharge / Non repetitive overload current tp=10ms (Fig. 3) Itsm 700 750 A Chute directe l tat passant / On state voltage drop (Ie = nominal current) V 1 + 0,0075xIe V Tension seuil l tat passant /On state Threshold voltage 25C Vto 1 V Rsistance dynamique / On state dynamic resistance rt 7.5 m Puissance dissipe (max) / 2 Pd W 0,9xIe + 0,0075xIe Output power dissipation (max value) Rsistance thermique jonction/semelle Rthj/c 0,4 K/W Thermal resistance between junction to case Courant de fuite l tat bloqu / Off state leakage current Ue typ, 50Hz Ilk 1mA Courant minimum de charge / Minimum load current Iemin 5 mA Temps de fermeture / Turn on time Ue typ, 50Hz ton max 10 ms Temps d ouverture / Turn off time Ue typ, 50Hz toff max 10 ms Frquence rseau/ Mains frequency range F mains f 0,1 50-60 800 Hz dv/dt l tat bloqu / Off state dv/dt dv/dt 500 V/s di/dt max / Maximum di/dt non repetitive di/dt 50 A/s 2 2 I2t (<10ms) : Value for fusing 2450 2800 I t A s Immunit / Conducted immunity level IEC/EN61000-4-4 (bursts) 2kV criterion A Immunit / Conducted immunity level IEC/EN61000-4-5 (surge) 2kV criterion B Protection court-circuit / Short circuit protection coordination typ 2 see page 5 Fuse Ferraz gRC 50A 22x58 Caractristiques gnrales / General characteristics (at 25C) Isolement entre/sortie - Input to output insulation Ui 4000 VRMS Isolation sortie/ semelle - Output to case insulation Ui 4000 VRMS Rsistance Isolement / Insulation resistance Ri 1000 ( 500VDC) M Tenue aux tensions de chocs / Rated impulse voltage Uimp 4000 V Degr de protection / Protection level / CEI529 IP20 Degr de pollution / Pollution degree - 2 Vibrations / Vibration withstand 10 -150 Hz according to IEC 60068-2-6 sine test 10 g Tenue aux chocs / Shocks withstand according to IEC 60068-2-27 11ms > 30 .... 50 g Temprature de fonctionnement /Ambient temperature (no icing, no condensation) - -55 /+100 C Temprature de stockage/ Storage temperature (no icing, no condensation) -55/+125 C Humidit relative / Ambient humidity HR 40 to 85 % Poids/ Weight 80 g Conformit CE / CE Conformity IEC/ EN60947-4-3 Conformit USA / US Conformity UL/cUL Conformit normes ferroviaires/ Conformity to railways applications yes (consult us) Plastique du boitier / Housing Material PA 6 UL94VO Semelle / Base plate Aluminium, Tinned-plated celduc www.celduc.com r e l a i s 5, Rue Ampre BP30004 42290 SORBIERS - FRANCE E-mail : celduc-relais celduc.com Fax +33 (0) 4 77 53 85 51 Service Commercial France Tl. : +33 (0) 4 77 53 90 20 Sales Dept.For Europe Tel. : +33 (0) 4 77 53 90 21 Sales Dept. Asia : Tl. +33 (0) 4 77 53 90 19
