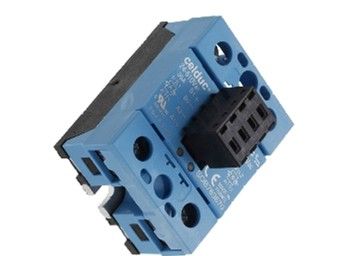

S/MON/SOB96366WF/A/03/10/2012 okpac page 1 / 6F/GB Relais statique biphas de puissance SOB96366WF Dual Power Solid State Relay (SOB963660+WF151200) Relais statique biphas synchrone spcialement adapt aux charges rsistives. Modle prt l emploi mont sur dissipateur. Output : 24-600VAC 2x35A Dual Zero Cross Solid State Relay especially designed for AC-51 resistive loads. ( see derating curve) Ready to use version mounted on heatsink. Input : 10-30VDC 2(*) Sortie thyristors technologie TMS permettant une longue dure de vie: 24 600VAC 2x35A. Voir limitations sur courbe thermique (typ 2x15A 40C). 2 (*) Back to back thyristors on output with TMS technology with a long lifetime expectancy: 24 to 600VAC 2x35A. See derating curve (typ 2x15A 40C). Entre double avec LED de visualisation de couleur verte sur chaque entre. 2 inputs with green LED visualization for each input. Livr en standard avec connecteur 1Y040915 (Weidmuller BLZ5.08/4/90 code 1552910000) Delivered in standard with pluggable connector 1Y040915 (Weidmuller BLZ5.08/4/90 code 1552910000) Protection IP20 par volets amovibles sur les bornes. Etiquette repre disponible en option. IP20 protection by removable flaps on terminals with optional labels. Construit en conformit aux normes IEC/EN60947-4-3 et EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL Homologation S-Mark Designed in conformity with IEC/ EN60947-4-3 and EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL S-mark certification FILE Nr. E69913 Dimensions Application typique: Rsistance 10 kW (Catgorie AC-51) en 400VAC Typical application: 10 kW resistor (AC-51 load) on 400 VAC CAD documents: www.celduc-relais.com/uk/plan3d.asp 2 (*) TMS =Thermo Mechanical Stress Solution Proud to serve you celduc All technical caracteristics are subject to change without previous notice. Caractristiques sujettes modifications sans pravis. r e l a i s S/MON/SOB96366WF/A/03/10/2012 okpac page 2 / 6F/GB Input : Ic = f( Uc) Caractristiques d entre / Control characteristics (at 25C) par voie/ for each input DC Paramtre / Parameter Symbol Min Typ Max Unit Tension de commande / Control voltage Uc 10 30 V Courant de commande / Control current ( Uc ) Ic 6 24 mA Tension de non fonctionnement / Release voltage Uc off 2 V LED d entre / Input LED verte / green Tension Inverse / Reverse voltage Urv 32 V Immunit / Input immunity : EN61000-4-4 2kV Immunit / Input immunity : EN61000-4-5 2KV par voie/ for each output Caractristiques de sortie / Output characteristics (at 25C) Paramtre / Parameter Conditions Symbol Min Typ. Max Unit Plage de tension utilisation / Operating voltage range Ue 24 400 600 V rms Tension de crte / Peak voltage ( clamping voltage) Up 1200 V Niveau de synchronisme / Zero cross level Usync 35 V Tension minimum amorage / Latching voltage Ie nom Ua 10 V Courant nominal / nominal current (AC-51) Heater Ie AC-51 35 (see derating curve) A rms Courant surcharge / Non repetitive overload current tp=10ms (Fig. 3) Itsm 380 500 A Chute directe l tat passant / On state voltage drop (Ie = nominal current) V 0.9 + 0,0014xIe V Tension seuil l tat passant /On state Threshold voltage 25C Vto 0.9 V Rsistance dynamique / On state dynamic resistance rt 14 m Puissance dissipe (max) / Pd 0.81xIe + 0,0014xIe W Output power dissipation (max value) Rsistance thermique jonction/semelle Rthj/c 0.55 K/W Thermal resistance between junction to case Courant de fuite l tat bloqu / Off state leakage current Ue typ, 50Hz Ilk 1mA Courant minimum de charge / Minimum load current Iemin 5 mA Temps de fermeture / Turn on time Ue typ, 50Hz ton max 10 ms Temps d ouverture / Turn off time Ue typ, 50Hz toff max 10 ms Frquence rseau/ Mains frequency range F mains f 0,1 50-60 800 Hz dv/dt l tat bloqu / Off state dv/dt dv/dt 500 V/s di/dt max / Maximum di/dt non repetitive di/dt 50 A/s 2 2 I2t (<10ms) : Value for fusing 720 1250 I t A s Immunit / Conducted immunity level IEC/EN61000-4-4 (bursts) 2kV criterion B Immunit / Conducted immunity level IEC/EN61000-4-5 (surge) 2kV criterion B Protection court-circuit / Short circuit protection voir/see page 5 Example Fuse FERRAZ gRC 32A 14x51 Caractristiques gnrales / General characteristics (at 25C) Isolement entre/sortie - Input to output insulation Ui 4000 VRMS Isolation sortie/ semelle - Output to case insulation Ui 4000 VRMS Rsistance Isolement / Insulation resistance Ri 1000 ( 500VDC) M Tenue aux tensions de chocs / Rated impulse voltage Uimp 4000 V Degr de protection / Protection level / CEI529 IP20 Degr de pollution / Pollution degree - 2 Vibrations / Vibration withstand 10 -150 Hz according to IEC 60068-2-6 sine test 10 g Tenue aux chocs / Shocks withstand according to IEC 60068-2-27 11ms > 30 .... 50 g Temprature de fonctionnement /Ambient temperature (no icing, no condensation) - -55 /+100 C Temprature de stockage/ Storage temperature (no icing, no condensation) -55/+125 C Humidit relative / Ambient humidity HR 40 to 85 % Poids/ Weight 80 g Conformit CE / CE Conformity IEC/ EN60947-4-3 Conformit USA / US Conformity UL/cUL Conformit normes ferroviaires/ Conformity to railways applications yes (consult us) Plastique du boitier / Housing Material PA 6 UL94VO Semelle / Base plate Aluminium, Tinned-plated celduc www.celduc.com r e l a i s 5, Rue Ampre BP30004 42290 SORBIERS - FRANCE E-mail : celduc-relais celduc.com Fax +33 (0) 4 77 53 85 51 Service Commercial France Tl. : +33 (0) 4 77 53 90 20 Sales Dept.For Europe Tel. : +33 (0) 4 77 53 90 21 Sales Dept. Asia : Tl. +33 (0) 4 77 53 90 19
