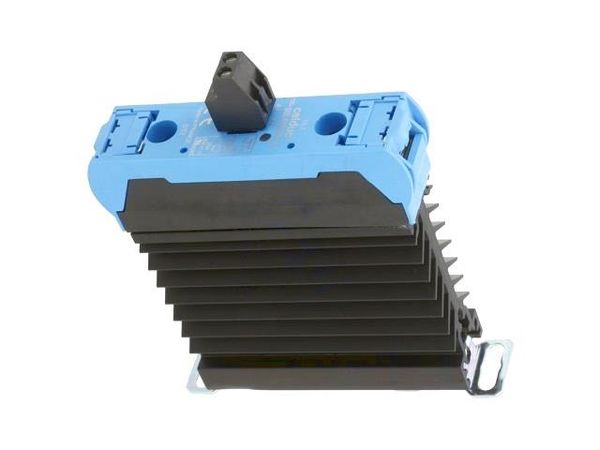

Protection 2G S/MON/SUL842970/D/29/07/2012 celpac page 1 / 5F/GB Contacteur statique monophas de puissance SUL842970 Single phase Power Solid contactor Output: 12-275VAC 25A (*) Input : 160-240VAC/DC Contacteur statique largeur 22,5mm prt l emploi. Relais synchrone spcialement adapt la plupart des charges. (*) 20A 40C AC-51 22,5mm Solid State Contactor for space-saving design. UL 18A Ready to use with its heatsink see derating curve Zero Cross Solid State Relay especially designed for most types of loads. Sortie 12 275VAC 25A. Limitation du courant (20A AC-51) par le dissipateur: voir courbe thermique. Haute Immunit et Protection de la tension de sortie par varistor. Trs faible niveau de synchronisme. Output 12 to 275VAC 25A. Current limitation (20A AC-51) by heatsink : see derating curve High Immunity and output voltage protection by VDR. Very low zero cross level Commande 230VAC. Connecteur de commande dbrochable en 2 points LED de visualisation sur l entre de couleur jaune. Control voltage 230VAC Livr avec conecteur de 2 points pluggable control connector. Yellow LED visualization on the input. commande et volets / delivered with control connector and flaps Protection IP20 par volets amovibles sur les bornes. Etiquette repre disponible en option. IP20 protection by removable flaps on terminals with optional labels Install it & Forget it Construit en conformit aux normes IEC/EN60947-4-3 et EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL Designed in conformity with IEC/ EN60947-4-3 and EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL Avec tiquette de reprage With optional labels FILE Nr. E69913 Secteur AC / Dimensions : AC Mains 1/L1 et 2/T2 peuvent tre inverss 1/L1 and 2/T1 can be swapped LED Charge / Load Le relais doit tre mont sur dissipateur thermique. 3/A1 4/A2 SSR must be mounted on heatsink Application typique: Rsistance 8 kW (Catgorie AC-51) en 400VAC Typical application: 8 kW resistor (AC-51 load) on 400 VAC CAD documents: www.celduc-relais.com/uk/plan3d.asp 2 (*) TMS =Thermo Mechanical Stress Solution PPPPrrrroooouuuudddd ttttoooo sssseeeerrrrvvvveeee yyyyoooouuuu celduc All technical caracteristics are subject to change without previous notice. Caractristiques sujettes modifications sans pravis. r e l a i s 2G celpac S/MON/SUL842970/D/29/07/2012 page 2 / 5F/GB Caractristiques d entre / Control characteristics (at 25C) Input : Ic = f( Uc) AC/DC Paramtre / Parameter Symbol Min Typ Max Unit Tension de commande / Control voltage Uc 160 230 240 VAC/DC Courant de commande / Control current ( Uc ) Ic 4.4 6.2 6.7 mA Tension de non fonctionnement / Release voltage Uc off 5 VAC LED d entre / Input LED Jaune/Yellow Immunit / Input immunity : EN61000-4-4 2kV Immunit / Input immunity : EN61000-4-5 2KV Caractristiques de sortie / Output characteristics (at 25C) Paramtre / Parameter Conditions Symbol Min Typ. Max Unit Plage de tension utilisation / Operating voltage range Ue 12 230 275 V rms Tension de crte / Peak voltage (clamping voltage) Up 600 (450) V Niveau de synchronisme / Zero cross level Usync 12 V Tension minimum amorage / Latching voltage Ie nom Ua 10 V Courant nominal / nominal current (AC-51) Ie AC-51 see derating curve 25 A rms Courant nominal / nominal current (AC-53) Motor Ie AC-53 3.5 5 A rms Courant surcharge / Non repetitive overload current tp=10ms (Fig. 3) Itsm 260 340 A Chute directe l tat passant / On state voltage drop (Ie = nominal current) V 0.85 + 0,016xIe V Tension seuil l tat passant /On state Threshold voltage 25C Vto 0.85 V Rsistance dynamique / On state dynamic resistance rt 16 m Puissance dissipe (max) / Pd 0.765xIe + 0,016xIe W Output power dissipation (max value) Rsistance thermique jonction/semelle Rthj/c 1.7 K/W Thermal resistance between junction to case Courant de fuite l tat bloqu / Off state leakage current Ue typ, 50Hz Ilk 1 mA Courant minimum de charge / Minimum load current Iemin 5 mA Temps de fermeture / Turn on time Ue typ, 50Hz ton max 30 ms Temps d ouverture / Turn off time Ue typ, 50Hz toff max 30 ms Frquence rseau/ Mains frequency range F mains f 0,1 50-60 800 Hz dv/dt l tat bloqu / Off state dv/dt dv/dt 500 V/s di/dt max / Maximum di/dt non repetitive di/dt 50 A/s 2 2 I2t (<10ms) : Value for fusing 340 600 I t A s Immunit / Conducted immunity level IEC/EN61000-4-4 (bursts) 2kV criterion A Immunit / Conducted immunity level IEC/EN61000-4-5 (surge) 2kV criterion A Protection court-circuit / Short circuit protection coordination typ 2 see page 5 Fuse FERRAZ gRC 25A 14x51 Caractristiques gnrales / General characteristics (at 25C) Isolement entre/sortie - Input to output insulation Ui 4000 VRMS Isolation sortie/ semelle - Output to case insulation Ui 4000 VRMS Rsistance Isolement / Insulation resistance Ri 1000 ( 500VDC) M Tenue aux tensions de chocs / Rated impulse voltage Uimp 4000 V Degr de protection / Protection level / CEI529 IP20 Degr de pollution / Pollution degree - 2 Vibrations / Vibration withstand 10 -150 Hz according to IEC 60068-2-6 sine test 10 g Tenue aux chocs / Shocks withstand according to IEC 60068-2-27 11ms > 30 .... 50 g Temprature de fonctionnement /Ambient temperature (no icing, no condensation) - -55 /+100 C Temprature de stockage/ Storage temperature (no icing, no condensation) -55/+125 C Humidit relative / Ambient humidity HR 40 to 85 % Poids/ Weight 250 g Conformit CE / CE Conformity IEC/ EN60947-4-3 Conformit USA / US Conformity UL/cUL Conformit normes ferroviaires/ Conformity to railways applications yes (consult us) Plastique du boitier / Housing Material PA 6 UL94VO Semelle / Base plate Aluminium celduc www.celduc.com r e l a i s 5, Rue Ampre BP30004 42290 SORBIERS - FRANCE E-mail : celduc-relais celduc.com Fax +33 (0) 4 77 53 85 51 Service Commercial France Tl. : +33 (0) 4 77 53 90 20 Sales Dept.For Europe Tel. : +33 (0) 4 77 53 90 21 Sales Dept. Asia : Tl. +33 (0) 4 77 53 90 19
