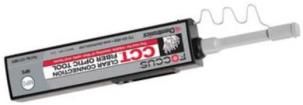

Technical Data Sheet Rev. C (2/21) Page 1 of 2 CCT Clear Connection Tool Product CCT-125, CCT-250, CCT-MPO Product Description The CCT Clear Connection Tool is the easy to use cleaning tool for fast and reliable end face cleaning. End faces in bulkheads or on cable assembles are both effortlessly cleaned the first time . every time. The CCT has an easy to use mechanism that advances fabric over a cleaning tip with just a short push and click of the tool. Using the CCT with the FOCCUS MX Precision Cleaning Pen provides for fast, easy and repeatable Combination Cleaning. Cleans connectors on back plane and on jumpers Uses Combination Cleaning process for first time cleaning, every time Used to meet or exceed IEC 61300-3-35, IEC TR62627-01, and Telcordia GR-2923-CORE and SAE Aerospace AIR6031. Effective for the widest range of contaminants Easy to use for quick and reliable cleaning Rugged and durable, great for all work sites Magnetic backing for easy rack placement Up to 800 cleanings per kit Typical Applications CCT Clear Connection Tools are used with the Combination Cleaning process in Fiber Optic and Telecommunications applications for: End-face connector cleaning Cleaning patchcord connectors Cleaning bulk-head connections Specifically made for either 2.5 mm connectors, MPO connectors, or 1.25 mm connectors Compatibility The CCT Clear Connection Tools are compatible with most common cleaners such as MX Precision Cleaner, and Fiber-Works Fiber-Wash. However, with any cleaning agent compatibility must be determined before using with the CCT and in field use. 1-770-424-4888 www.chemtronics.com Technical Data Sheet Rev. C (2/21) Page 2 of 2 CCT Clear Connection Tool Product CCT-125, CCT-250, CCT-MPO Usage Instructions Availability Combination Cleaning process with CCT Clear Connection Tool Wet the CCT fabric tip with the MX pen, insert the CCT tip into the connector, and push in the tool 2-3 clicks advancing the fabric from wet-to-dry, perfectly CCT-125 1 Clear Connection Tool cleaning the end-face. Cleaning tool for MU and LC connectors Combination Cleaning eliminates all debris and contamination the first time, avoiding expensive rework and truck-rolls from bad connections. CCT-250 1 Clear Connection Tool Cleaning tool for FC, SC and ST connectors CCT-MPO 1 Clear Connection Tool Cleaning tool for MPO connectors Technical and Application Assistance emtronics provides a technical hotline to answer your technical and application related questions. toll free number is: 1-800-TECH-401. Note: information is believed to be accurate. It is intended for professional end users having the skills to evaluate and use the data properly. CHEMTRONICS does not guarantee the accuracy of the data and assumes no liability in connection with damages incurred while using it. Chemtronics , Electro-Wash and QbE are registered trademarks of Chemtronics. All rights reserved. FOCCUS, CCT, Combination Cleaning, Fiber-Works, and Fiber- Wash are a trademarks of Chemtronics. All rights reserved. 8125 Cobb Center Drive Kennesaw, GA 30152 1-770-424-4888 www.chemtronics.com
