CPROBS5-0010 Crystek

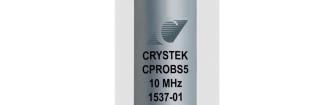

CRYSTEK BNC POCKET MICROWAVE REFERENCE A Division of Crystek Corporation OSCILLATOR Crystek has expanded its Pocket Reference Oscillator family to now include a BNC version. The larger package allows Crystek to offer its higher performance CLOCK oscillators in the BNC housing. The family will be offered from 10 MHz to 1090 MHz in single frequencies. Output waveforms include Sinewave and HCMOS. Supply voltages will be +3.3V or +5.0V. Product Control: Crystek Part Number: CPROBS5-0010 Release Date: 05-Feb-2019 Revision Level: B Responsible: C. Vales Page 1 of 2 12730 Commonwealth Drive Fort Myers, Florida 33913 CRYSTEK Phone: 239-561-3311 800-237-3061 CORPORATION Fax: 239-561-1025 www.crystek.com C CRYSTEK BNC POCKET MICROWAVE REFERENCE A Division of Crystek Corporation OSCILLATOR Model CPROBS5-0010 BNC PRO, 5V, Sinewave Clock Frequency: 10.000 MHz Frequency Stability: 25 ppm Temperature Range: 0C to +70C Storage Temperature: -40C to +85C Input Voltage: 5.0V 0.25V Input Current: 30mA Max Output Power: True sinewave, +8 dBm Min, +10 dBm Typical Second Harmonic: -25 dBc Max Sub-Harmonics: None Typical Phase Noise: See Plot on page 1 st Frequency Aging: <3ppm 1 year, <1ppm every year thereafter 2.590 (65.79) 1.480 (37.59) POWER 0.550 SIGNAL OUT SUPPLY (13.97) IN BNC BNC Male Female Crystek Corporation reserves the right to make changes to its Product Control: products and/or information contained herein without notice. No liability is assumed as a result of its use or application. Crystek Part Number: CPROBS5-0010 Release Date: 05-Feb-2019 Revision Level: B Responsible: C. Vales Page 2 of 2 12730 Commonwealth Drive Fort Myers, Florida 33913 CRYSTEK Phone: 239-561-3311 800-237-3061 CORPORATION Fax: 239-561-1025 www.crystek.com C
