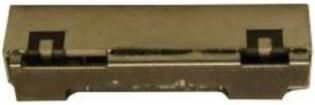

CER0813A 4000 MHz BPF Revision B Origin Date: November 3, 2010 Revision Date: July 28, 2011 Features Low Ripple High Rejection Low Loss Description Surface mount, silver (Ag) coated ceramic filter. Weight: 4.0 grams typical Material: Filter is composed of a ceramic block coated with Ag and a shield made of nickel silver plated steel. Filter complies with RoHS standards. Filter complies with: MIL-STD-202, Method 213, Condition C MIL-STD-202, Method 201 and 204. Electrical Specifications Spec over Frequency Typical Specification Parameter MHz 25C 25C -40C to +110C Passband Iloss 3950 - 4050 -1.9 -2.2 -2.5 Passband Flatness 3950 - 4050 0.6 0.8 1.0 Passband Group Delay Variation (ns) 3950 - 4050 3.0 4.0 5.0 Passband Return Loss Port 1 3950 - 4050 -14.0 -12.0 -12.0 Passband Return Loss Port 2 3950 - 4050 -14.0 -12.0 -12.0 Attenuation 0.1 - 3745 -63.0 -59.0 -59.0 3844 -43.0 -41.0 -40.0 4150 -43.0 -41.0 -40.0 4250 - 5000 -63.0 -60.0 -60.0 5000 - 6450 -38.0 -34.0 -34.0 Power into any port 2 Watt max Note: Supplier shall test each filter to the critical electrical specifications of the above table. Any subsequent audits may deviate from in value due to measurement repeatability among different test systems. Such deviations shall not exceed the following limits: Specification Allowance Insertion Loss 0.1 dB Return Loss 1.0 dB Stopbands 1.0 dB This product is covered by one or more of the following U.S. and foreign patents including: US 4,692,726 US 4,742,562 US 4,800,348 US 4,829,274 US 5,146,193 EP 0573597 DE 0573597 FR 0573597 JP 508149/92 KR 142171 US 5,162,760 US 5,218,329 US 5,250,916 US 5,327,109 US 5,488,335 CA 2114029 FR 9306297 GB 2273393 JP 3205337 KR 115113 CN 93106228.4 US 5,512,866 EP 0706719 DE 0706719 FR 0706719 GB 0706719 CN 95190359.4 US 5,602,518 US 5,721,520 US 5,745,018 EP 0910875 DE 0910875 DK 0910875 FR 0910875 GB 0910875 IE 0910875 JP 505182/98 KR 10-323013 US 5,994,978 US 6,462,629 CN 00810420.4 US 6,559,735 US 6,650,202 US 6,834,429.Other US and foreign patents pending. CTS Corporation 2006 reserves all copyrights in the layout, design and configuration of the patterns on this product. Document No. 008-0256-0 Page 1 of 2 Rev. X4VH - CTS Electronic Components - www.ctscorp.com - 4800 Alameda Blvd. NE- Albuquerque, NM 87113 -CER0813A 4000 MHz BPF Revision B Origin Date: November 3, 2010 Revision Date: July 28, 2011 Mechanical Drawing Nominal Tolerance (mm) Dim (mm) +/- or max A 27.3 max 4.28 max B C 1.14 0.13 D 1.02 0.13 E 1.02 0.13 F 9.57 0.13 G 9.57 0.13 H 6.20 max 1.14 0.13 I J 5.79 max Electrical response PCB Layout 3500 3600 3700 3800 3900 4000 4100 4200 4300 4400 4500 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 -100 Packaging and Marking DIMENSION UNITS SPECIFICATION REEL DIAMETER mm 330 REEL WEIGHT kg 2.6 REEL QUANTITY ea. 500 Customer Feed Direction Product Marking CTS Wo Ao Bo Ko Po 813 Inches/mm Inches/mm Inches/mm Inches/mm Inches/mm YWW 1.732 /44 0.240 /6.10 1.087 /27.6 0.169 /4.3 0.472 /12.0 Document No. 008-0256-0 Page 2 of 2 Rev. X4VH - CTS Electronic Components - www.ctscorp.com - 4800 Alameda Blvd. NE- Albuquerque, NM 87113 -
