D3V3M1U2S9
3.3V UNIDIRECTIONAL TVS DIODE
Product Summary Features
V I C
BR min pp max in typ Provides ESD Protection per IEC 61000-4-2 Standard:
5.0V 12A 70pF
Air 30kV, Contact 30kV
1 Channel of ESD Protection
Description Low Channel Input Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
This new generation TVS is designed to protect sensitive electronics
Halogen and Antimony Free. Green Device (Note 3)
from the damage due to ESD. The combination of small size and high-
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players.
Mechanical Data
Applications

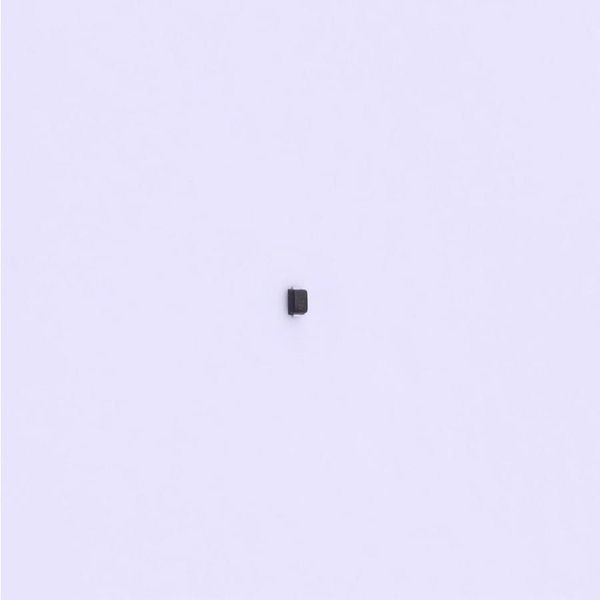

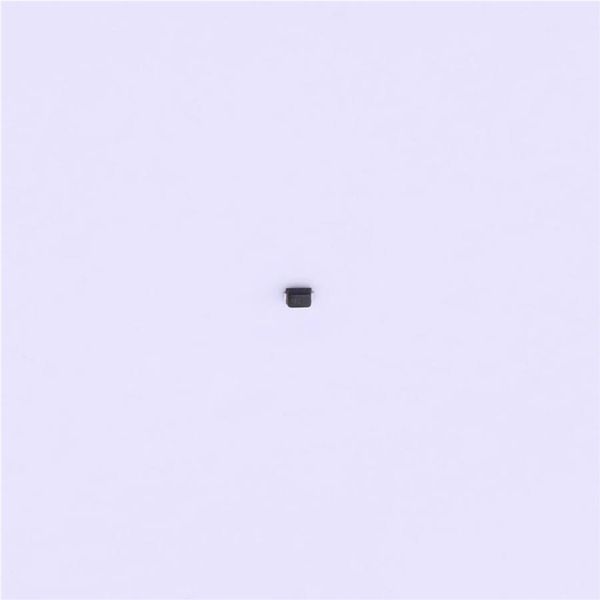

Case: SOD923
Cellular Handsets
Case Material: Molded Plastic, Green Molding Compound.
Portable Electronics
UL Flammability Classification Rating 94V-0
Computers and Peripheral
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Weight: 0.001 grams (Approximate)
SOD923
Pin 2 Pin 1
Top View
Device Schematic
Ordering Information (Note 4)
Product Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel
D3V3M1U2S9-7 Standard TN 7 8 10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See
D3V3M1U2S9
Thermal Characteristics
Characteristic Symbol Value Unit
Package Power Dissipation (Note 5) P 250 mW
D
Thermal Resistance, Junction to Ambient (Note 5) 500 C/W
R
JA
Operating and Storage Temperature Range T , T -65 to +150 C
J STG
Electrical Characteristics (@T = +25C, unless otherwise specified.)
A
Characteristic Symbol Min Typ Max Unit Test Conditions
Reverse Standoff Voltage 3.3 V
V
RWM
Channel Leakage Current (Note 6) 2.0 A
I V = 3.3V
RM RWM
8 I = 1A, tp = 8/20S
PP
Clamping Voltage, IEC 61000-4-5 V
VCL
10 I = 12A, tp = 8/20S
PP
Breakdown Voltage V 5.0 V I = 1mA
BR R
Channel Input Capacitance C 70 80 pF V = 0V, f = 1MHz
T R
Notes: 5. Device mounted on FR-4 PCB pad layout (2oz copper) as shown on Diodes, Inc. suggested pad layout AP02001, which can be found on our website at
