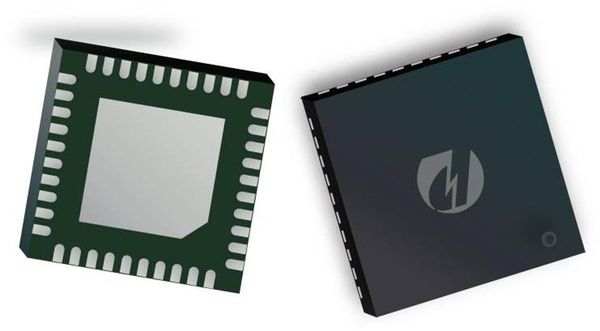

A product Line of Diodes Incorporated PRODUCT BRIEF PI3DBS12412A 3.3V, 10-12Gbps 2-Lane 2:1 Mux/De-Mux Switch Features Description 4 Differential Channel, 2:1 Mux/DeMux The PI3DBS12412A is an 8 to 4 differential channel multiplexer/ Up to 12Gbps data rate for SAS 3.0 Application demultiplexer switch. This solution can switch multiple signal types Compatible with Thunderbolt signaling, 10.3125Gbps up to data rate of 12Gbps. Using a unique design technique, Di- odes has been able to minimize the impedance of the switch such 10Gbps Ethernet, USB 3.1 that the attenuation observed through the switch is minimal. The Bi-directional operation unique design technique also offers a layout targeted for Thunder- 3dB Bandwidth: 11.3 GHz bolt & SAS 3.0 signals, which minimizes the channel to channel Low Bit-to-Bit Skew, 1ps typ skew as well as channel to channel crosstalk as required by high Low channel-to-channel skew, 7ps typ speed signals. Low insertion loss: -1.4dB 5 GHz, -1.5dB 6 GHz Return loss: -19.3dB 5 GHz, -17.3dB 6 GHz Applications Low Crosstalk: -30.5dB 6 GHz Routing high speed differential signals such as Thunderbolt, 10 Low Off Isolation: -17.1dB 6 GHz Gigabit Ethernet, PCI-Express 3.0, SAS 3.0, and USB 3.1. Low power consumption -400A typ Supply Voltage 3.3V Industrial Temperature Range: -40oC to 85oC ESD 2KV Human Body Model (HBM) Block Diagram Packaging (Pb-free & Green): A0+ B0+ 42-contact, TQFN (ZH42), 3.5x9mm A0- B0- 40-contact, TQFN (ZL40), 3x6mm A1+ B1+ A1- B1- C0+ Ordering Information C0- C1+ Part Number Package Description SEL1 C1- 42-Contact, Very Thin Quad Flat /OE1 PI3DBS12412AZHEX ZH No-Lead (TQFN) B2+ A2+ B2- PI3DBS12412AZLEX ZL 40-Contact, 3x6mm (TQFN) A2- A3+ B3+ Notes: A3- B3- 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/ EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. C2+ 2. See X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Multiplexer Switch ICs category: Click to view products by Diodes Incorporated manufacturer: Other Similar products are found below : NLV74HC4066ADR2G HEF4051BP MC74HC4067ADTG DG508AAK/883B NLV14051BDG 016400E PI3V512QE 7705201EC PI2SSD3212NCE PI3L100QE NLAS3257CMX2TCG PI5A3157BC6EX PI3V512QEX PI3DBS16213ZLEX PI3DBS16415ZHEX PS509LEX MUX36S16IRSNR 74LVC1G3157GM-Q10X TC7W53FK,LF CD4053BM96 MC74HC4053ADWR2G MAX4051AEEE+ PI3L720ZHEX ADG1404YRUZ-REEL7 ADG1208YRZ-REEL7 CD4053BPWRG4 ADG658TRUZ-EP FSA1256L8X F113 PI5V330QE PI5V331QE 5962-8771601EA ADG5249FBRUZ ADG1438BRUZ ADG5207BCPZ-RL7 ADW54003-0 AD7506JNZ AD7506KNZ AD7506SQ AD8170AR AD8183ARUZ AD8184ANZ AD8185ARUZ AD8187ARUZ AD8188ARUZ AD8189ARUZ ADG1208YRUZ- REEL7 ADG1409YCPZ-REEL7 ADG5209FBRUZ ADG1408YRUZ-REEL7 ADG659YRUZ-REEL7
