PI5C3861
10-Bit, 2-Port Bus Switch
Features: Description:
Near-Zero propagation delay
Pericom Semiconductors PI5C3861 is a 10-bit, 2-port bus switch
designed with a low On-Resistance (5) allowing inputs to be
5 switches connect inputs to outputs
connected directly to outputs. The bus switch creates no additional
Direct bus connection when switches are ON
propagation delay or additional ground bounce noise. The switches
Ultra Low Quiescent Power (0.2A typical)
are turned ON by the Bus Enable (BE) input signal.
Ideally suited for notebook applications
Packaging (Pb-free & Green available):

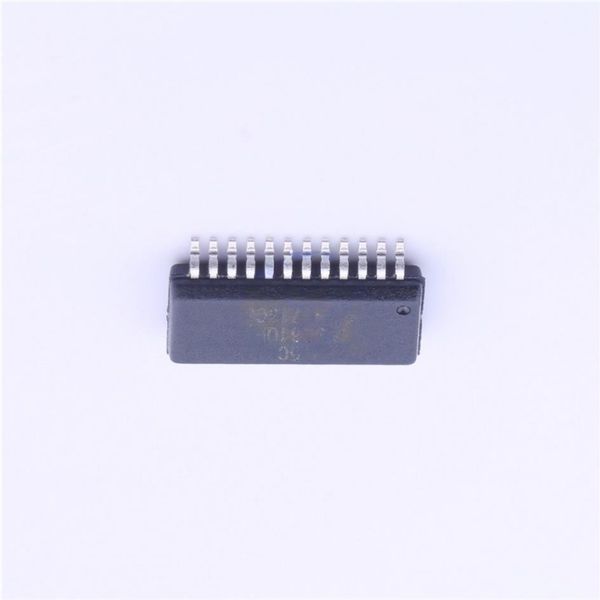

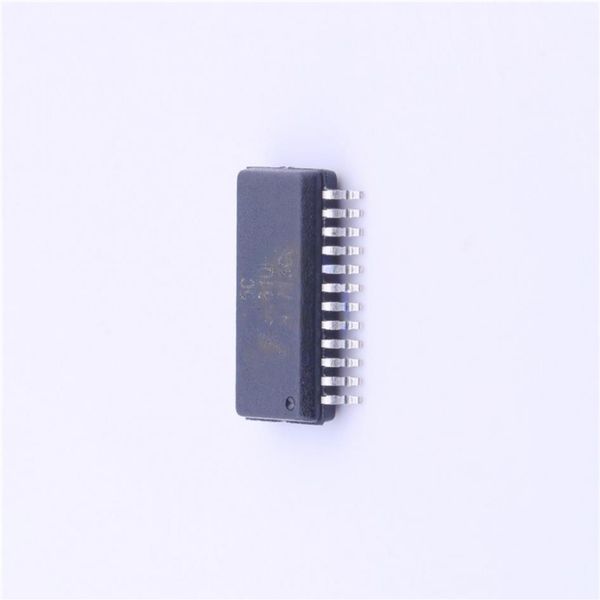

24-pin, 150-mil wide plastic QSOP (Q)
Block Diagram Pin Con guration
NC 1 24
V
CC
A0 2 23
BE
A0 B0
A1 3 22
B0
A2 4 21
B1
A3 5 20
B2
A4 6 19
B3
7 18
A5 B4
A9 B9
8 17
A6 B5
9 16
A7 B6
10 15
A8
B7
11 14
A9
B8
12 13
GND
B9
BE
Pin Description
Pin Name Description
BE Bus Enable Input (Active LOW)
(1)
A09 Bus A
Truth Table
B09 Bus B
Function BE A09
GND Ground
Disconnect H Hi-Z
V Power
CC
Connect L B09
Note: NC
No Connect
1. H = High Voltage Level, L = Low Voltage Level,
Hi-Z = High Impedance
PS7021H 05/02/07
07-0125
1PI5C3861
10-Bit, 2-Port Bus Switch
Maximum Ratings
(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature .................................................................. 55C to +125C
Note:
Ambient Temperature with Power Applied ................................. 40C to +85C
Stresses greater than those listed under MAX I MUM
RATINGS may cause permanent damage to the de-
Supply Voltage to Ground Potential ............................................. 0.5V to +7.0V
vice. This is a stress rating only and functional op-
eration of the device at these or any other con di tions
DC Input Voltage .......................................................................... 0.5V to +7.0V
above those indicated in the operational sections of
this spec i ca tion is not implied. Exposure to absolute
DC Output Current .....................................................................................120 mA
maximum rating conditions for extended periods may
Power Dissipation ..........................................................................................0.5W affect re li abil i ty.
DC Electrical Characteristics (Over the Operating Range, T = 40C to +85C, V = 5V 5%)
A CC
(1) (2)
Parameters De scrip tion Min. Max. Units
Test Conditions Typ
V Input HIGH Voltage Guaranteed Logic HIGH Level 2.0
IH
V
V Input LOW Voltage Guaranteed Logic LOW Level 0.5 0.8
IL
I Input HIGH Current V = Max., V = VCC 1
IH CC IN
A
I Input LOW Current V = Max., V = GND 1
IL CC IN
I High Impedance Output Current 0 A, B V 1
OZ CC
V Clamp Diode Voltage V = Min., I = 18mA 0.7 1.2 V
IK CC IN
(3)
I SHORT CIRCUIT CURRENT A (B) = 0V, B (A) = V 100 M A
OS CC
V Input Hysteresis at Control Pins 150 mV
H
V = Min., V = 0.0V, I = 48mA 5 7
CC IN ON
(4)
R Switch On-Resistance
ON
V = Min., V = 2.4V, I = 15mA 10 15
CC IN ON
Notes:
1. For conditions shown as Max. or Min., use appropriate value speci ed under Electrical Char ac ter is tics for the applicable device type.
2. Typical values are at V = 5.0V, TA = 25C ambient and maximum loading.
CC
3. Not more than one output should be shorted at one time. Duration of the test should not exceed one second.
4. Measured by the voltage drop between A and B pin at indicated current through the switch. On-Re sis tance is determined by the lower of the
voltages on the two (A,B) pins.
Capacitance (T = 25C, f = 1 MHz)
A
(1)
Parameters De scrip tion Test Conditions Typ. Max. Units
C Input Capacitance 6
IN
C A/B Capacitance, Switch Off V = 0V 6 pF
OFF IN
C A/B Capacitance, Switch On 8
ON
Notes:
1. This parameter is determined by device characterization but is not production tested.
PS7021H 05/02/07
07-0125
2
